Removing and Installing the Battery

Battery Removal Procedure
1. Turn the computer off, remove the AC/DC adapter. Access the rear of the computer.
2. Slide the latch in the direction of the arrow
1
3. Slide the latch in the direction of the arrow, and hold it in place
2
4. Slide the cover in the direction of the arrow until the bottom marker of the battery cover icon
marker on the side of the computer
5. Remove the batter bay cover
6. Raise the battery up out of the bay
7. Remove the battery (Figure 1d
7 6
a.
2
3
3
4
c.
(Figure 1a .
)
(Figure 1a .
)
4
(Figure 1b .
)
5
6
(Figure 1c
).
6
.
)
b.
1
d.
6
(Figure 1a .
)
is aligned with the
3
5
7
Removing and Installing the Battery 2 - 5
Disassembly

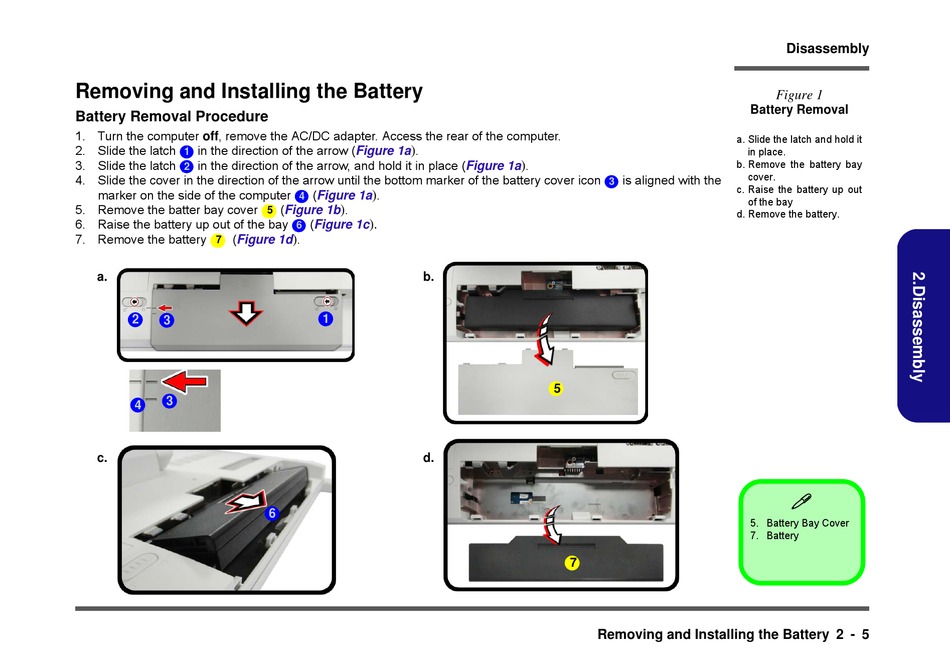

Figure 1
Battery Removal
a. Slide the latch and hold it
in place.
b. Remove the battery bay
cover.
c. Raise the battery up out
of the bay
d. Remove the battery.

5. Battery Bay Cover
7. Battery
