Introduction

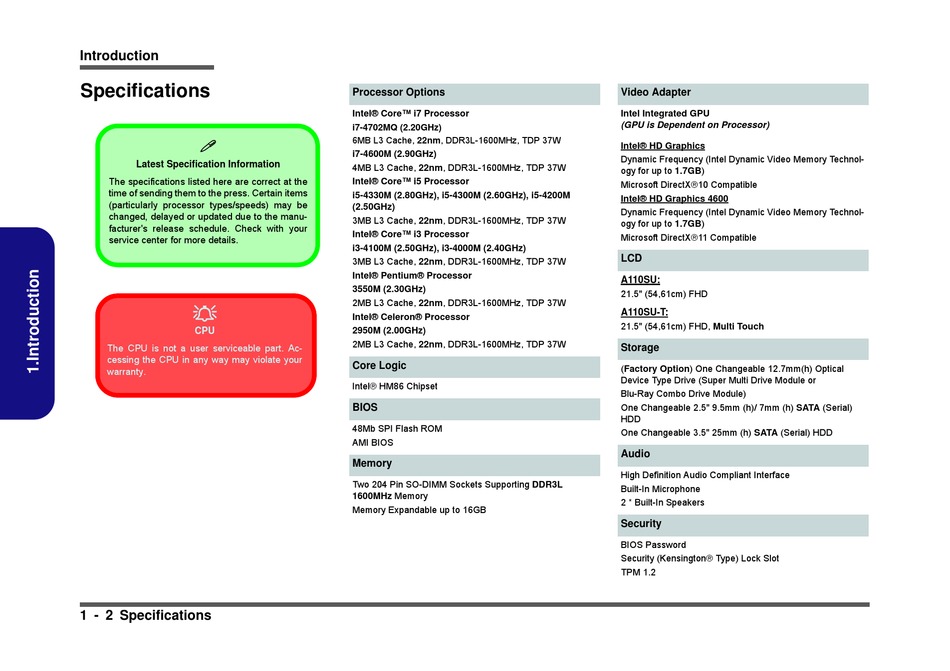

Specifications


Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.

CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
1 - 2 Specifications
Processor Options
Intel® Core™ i7 Processor
i7-4702MQ (2.20GHz)
6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 37W
i7-4600M (2.90GHz)
4MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 37W
Intel® Core™ i5 Processor
i5-4330M (2.80GHz), i5-4300M (2.60GHz), i5-4200M
(2.50GHz)
3MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 37W
Intel® Core™ i3 Processor
i3-4100M (2.50GHz), i3-4000M (2.40GHz)
3MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 37W
Intel® Pentium® Processor
3550M (2.30GHz)
2MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 37W
Intel® Celeron® Processor
2950M (2.00GHz)
2MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 37W
Core Logic
Intel® HM86 Chipset
BIOS
48Mb SPI Flash ROM
AMI BIOS
Memory
Two 204 Pin SO-DIMM Sockets Supporting DDR3L
1600MHz Memory
Memory Expandable up to 16GB
Video Adapter
Intel Integrated GPU
(GPU is Dependent on Processor)
Intel® HD Graphics
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®10 Compatible
Intel® HD Graphics 4600
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®11 Compatible
LCD
A110SU:
21.5" (54,61cm) FHD
A110SU-T:
21.5" (54,61cm) FHD, Multi Touch
Storage
(Factory Option) One Changeable 12.7mm(h) Optical
Device Type Drive (Super Multi Drive Module or
Blu-Ray Combo Drive Module)
One Changeable 2.5" 9.5mm (h)/ 7mm (h) SATA (Serial)
HDD
One Changeable 3.5" 25mm (h) SATA (Serial) HDD
Audio
High Definition Audio Compliant Interface
Built-In Microphone
2 * Built-In Speakers
Security
BIOS Password
Security (Kensington® Type) Lock Slot
TPM 1.2
