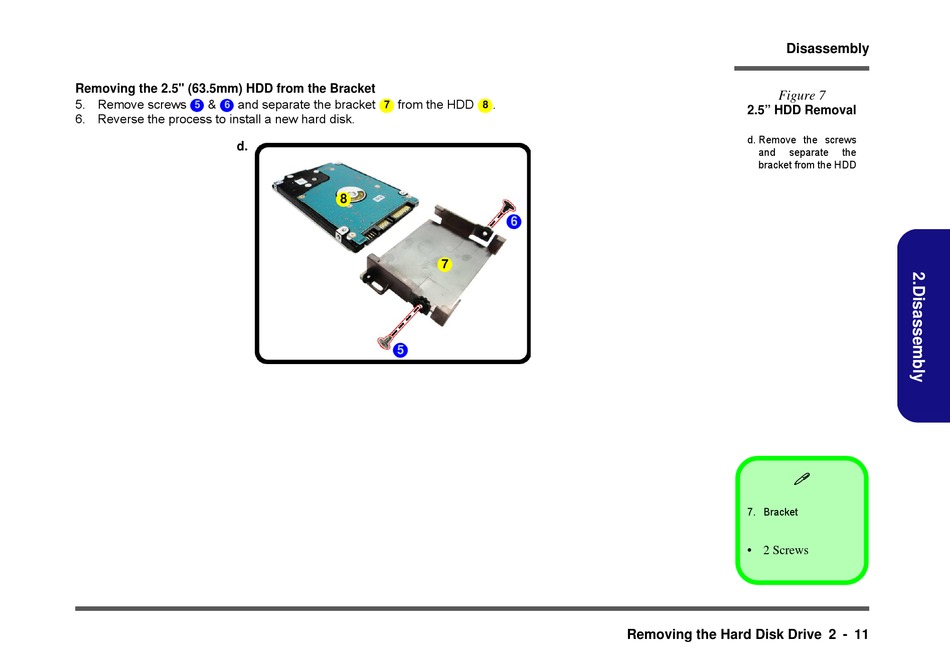

Removing the 2.5" (63.5mm) HDD from the Bracket
5. Remove screws
&
and separate the bracket
5
6
6. Reverse the process to install a new hard disk.
d.
from the HDD
.
7
8
6
6
8
6
7
5
Disassembly
Figure 7
2.5" HDD Removal
d. Remove the screws
and
separate
bracket from the HDD
7. Bracket
• 2 Screws
Removing the Hard Disk Drive 2 - 11
