EUROCOM A110SU Service Manual page 45

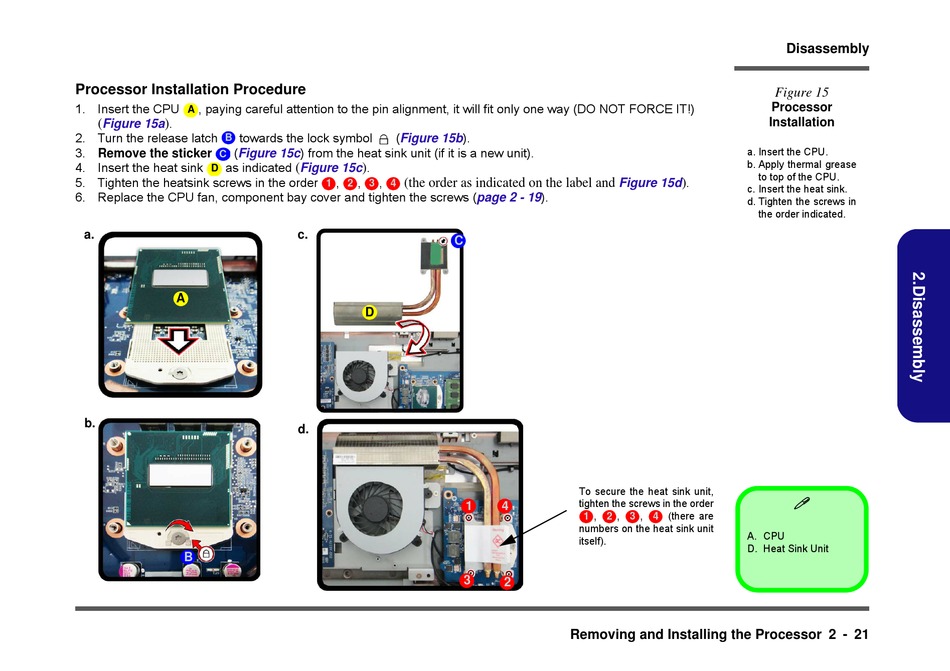

Processor Installation Procedure
1. Insert the CPU , paying careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!)
A 6
.
( )
Figure 15a
2. Turn the release latch towards the lock symbol
B
3. Remove the sticker (Figure
C
4. Insert the heat sink as indicated
D 6
5. Tighten the heatsink screws in the order
6. Replace the CPU fan, component bay cover and tighten the screws
a.
A
b.
B
(Figure
15b).
15c) from the heat sink unit (if it is a new unit).
.
( )
Figure 15c
, , ,
(the order as indicated on the label and
1 2 3 4
c.
C
D
d.
Figure 15d
(page 2 -
19).
To secure the heat sink unit,
tighten the screws in the order
1 4
, , ,
1 2 3
numbers on the heat sink unit
itself).
3
2
Removing and Installing the Processor 2 - 21
Disassembly
Figure 15
Processor
Installation
a. Insert the CPU.
b. Apply thermal grease
to top of the CPU.
.
)
c. Insert the heat sink.
d. Tighten the screws in
the order indicated.

(there are
4
A. CPU
D. Heat Sink Unit
