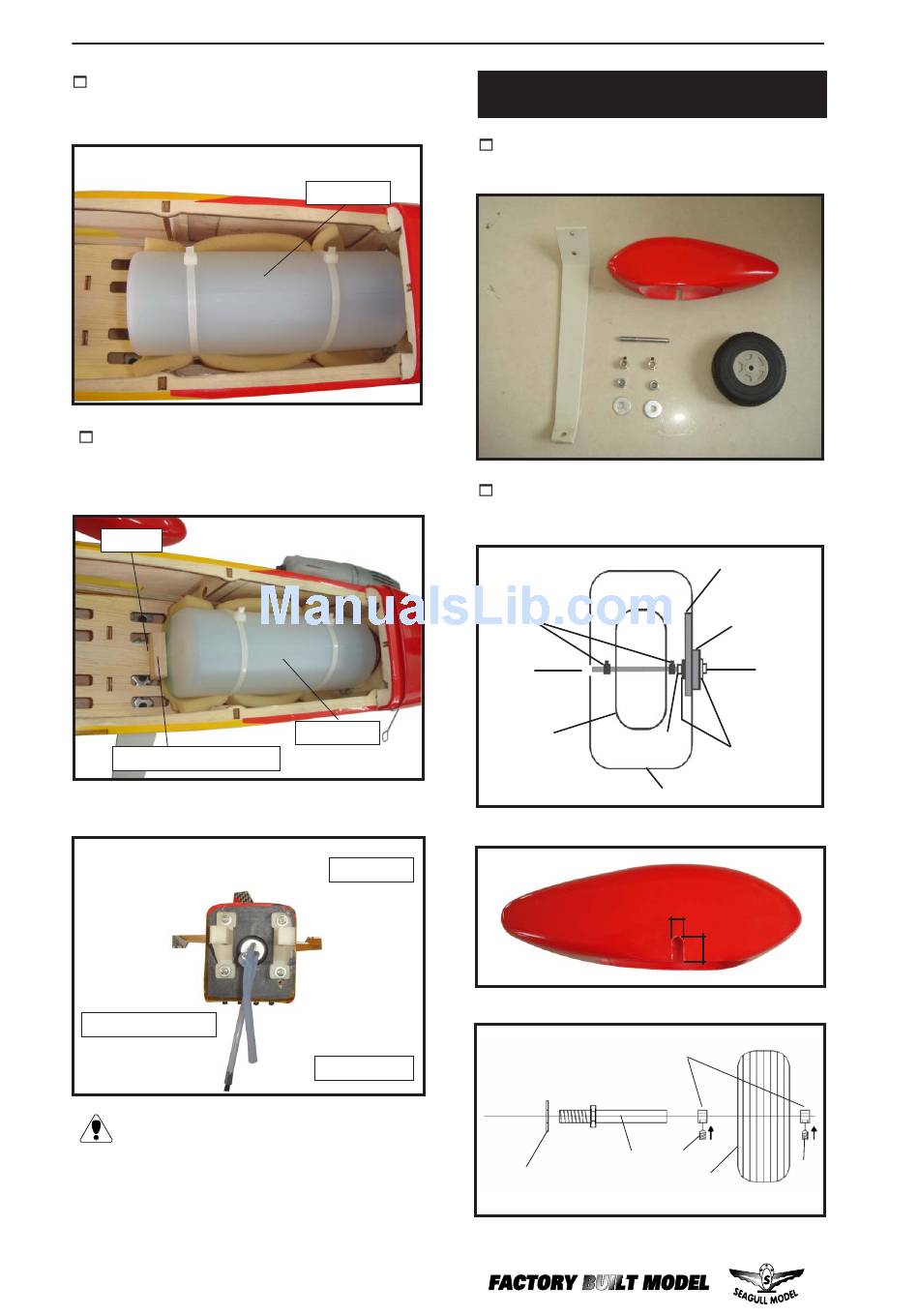

SEAGULL FUNFLY 3D.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in the
firewall.
8) Use plywood template to hold in place
the fuel tank with C/A glue to secure the fuel
tank inside the fuselage.
Epoxy.
Balsa wood include.
Fuel pick up tube.
Blow through one of the lines to en-
sure the fuel lines have not become kinked
inside the fuel tank compartment. Air
should flow through easily.
8
Fuel tank.
Fuel tank.
Vent tube.
Fuel fill tube.
Instruction Manual.
WHEEL AND WHEEL PANTS
INSTALLATION.
1) Assemble and mounting the landing
gear wheels to the wheel pants as shown in
the following pictures.
2) Follow diagram below for wheel pant
installation:
Wheel Collar.
Axle.
Wheel.
wheel collar.
Axle.
Washer.
Lite -Plywood
block.
Landing Gear.
Nut.
Nut.
(2) Washer.
Wheel Pant.
7mm
14mm
M3.
M3.
wheel.
