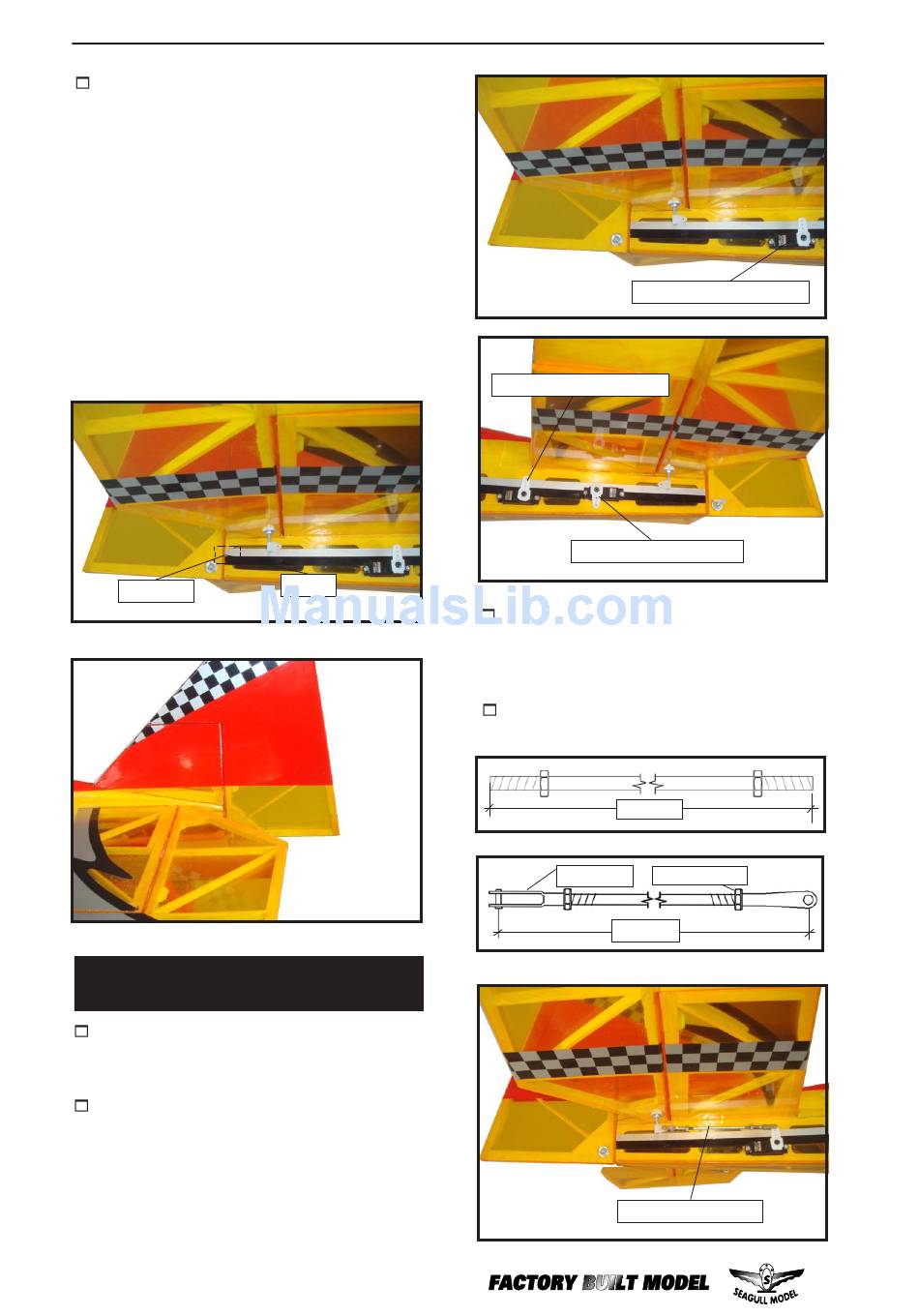

Seagull Models Funfly 3D Assembly Manual page 20

SEAGULL FUNFLY 3D.
6) When you are sure that everything is
aligned correctly, mix up a generous amount of
Flash 30 Minute Epoxy. Apply a thin layer to the
mounting slot in the top of the fuselage and to
the sides and bottom of the vertical stabilizer
mounting area. Apply epoxy to the bottom and
top edges of the filler block and to the lower
hinge also. Set the stabilizer in place and re-
align. Double check all of your measurements
once more before the epoxy cures. Hold the
stabilizer in place with T-pins or masking tape
and remove any excess epoxy using a paper
towel and rubbing alcohol. Allow the epoxy to
fully cure before proceeding.
C/A glue.
ELEVATOR AND RUDDER
PUSHROD HORN INSTALLATION.
1) Install the elevator control horn using
the same method as with the aileron control
horns.
2) Position the elevator control horn on
the both side of elevator.
20
Hinge.
Instruction Manual.
Elevator control horn.
Elevator control horn.
Rudder control horn.
3) Thread one clevis and M3 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
4) Elevator and rudder pushrods assembly
as pictures below.
90mm.
M3 clevis.
120mm.
Elevator pushrod.
M3 lock nut.
