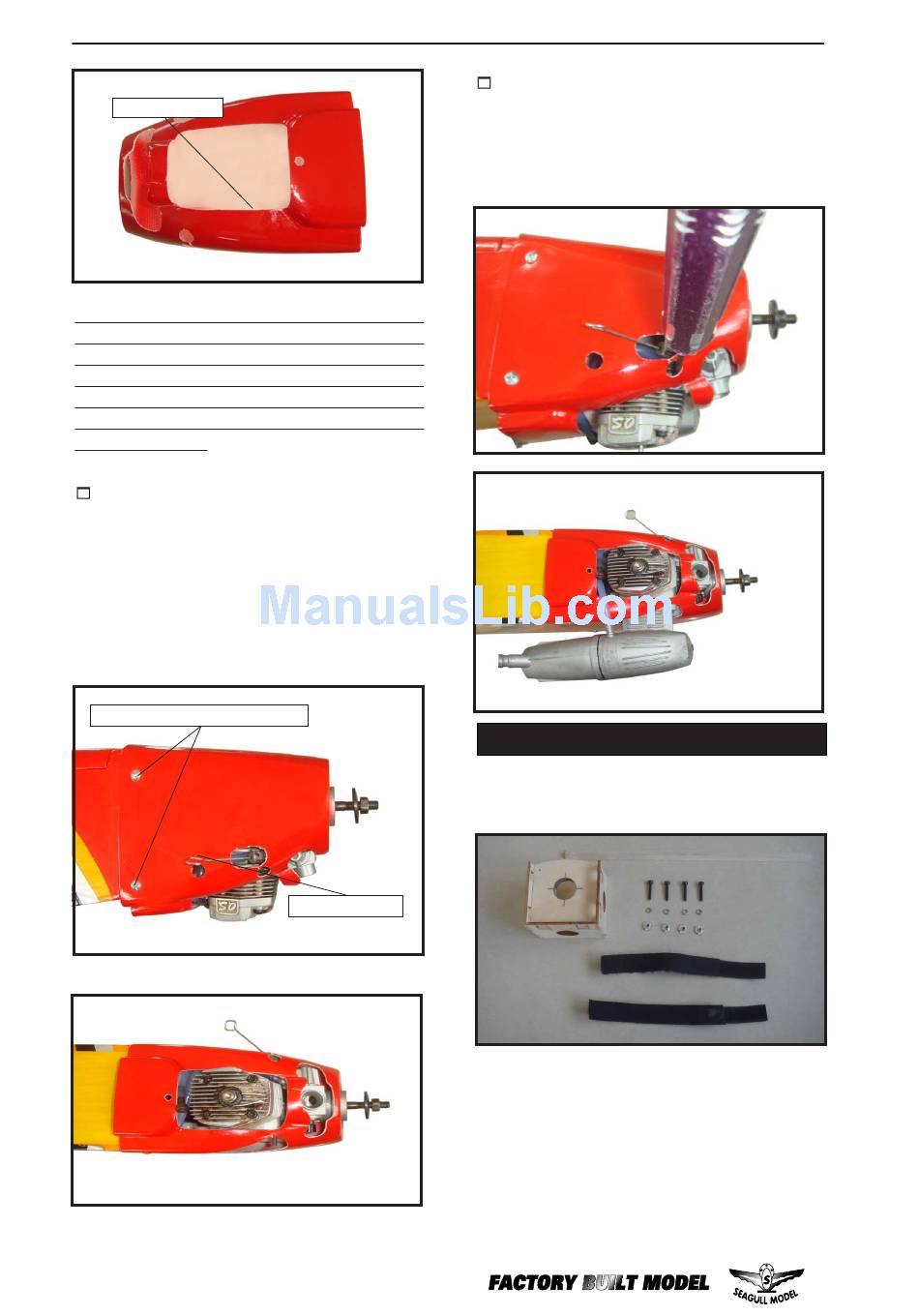

SEAGULL FUNFLY 3D.
Trim and cut.
Because of the size of the cowl, it may be nec-
essary to use a needle valve extension for the
high speed needle valve. Make this out of suf-
ficient length 1.5mm wire and install it into the
end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
2) While keeping the back edge of the
cowl flush with the marks, align the front of
the cowl with the crankshaft of the engine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Use the spinner backplate as a guide.
Hold the cowl firmly in place using pieces of
masking tape.
Machine screw M3x10mm.
14
Needle valve.
Instruction Manual.
3) Install the muffler and muffler extension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve. Secure the cowl to fuse-
lage using the M3x10mm screws.
ELECTRIC POWER CONVERSION.
1) Locate the items neccessary to install the
electric power conversion parts included with
your model.
Recommendation EP parts as shown (not
included with your model)
- Model size: .35-.45 size models
- Motor: 35mm 830 rev per volt
- Propeller: 11x7
- ESC: 50A
- Lipo Batteries: 4 cell 3200mA
