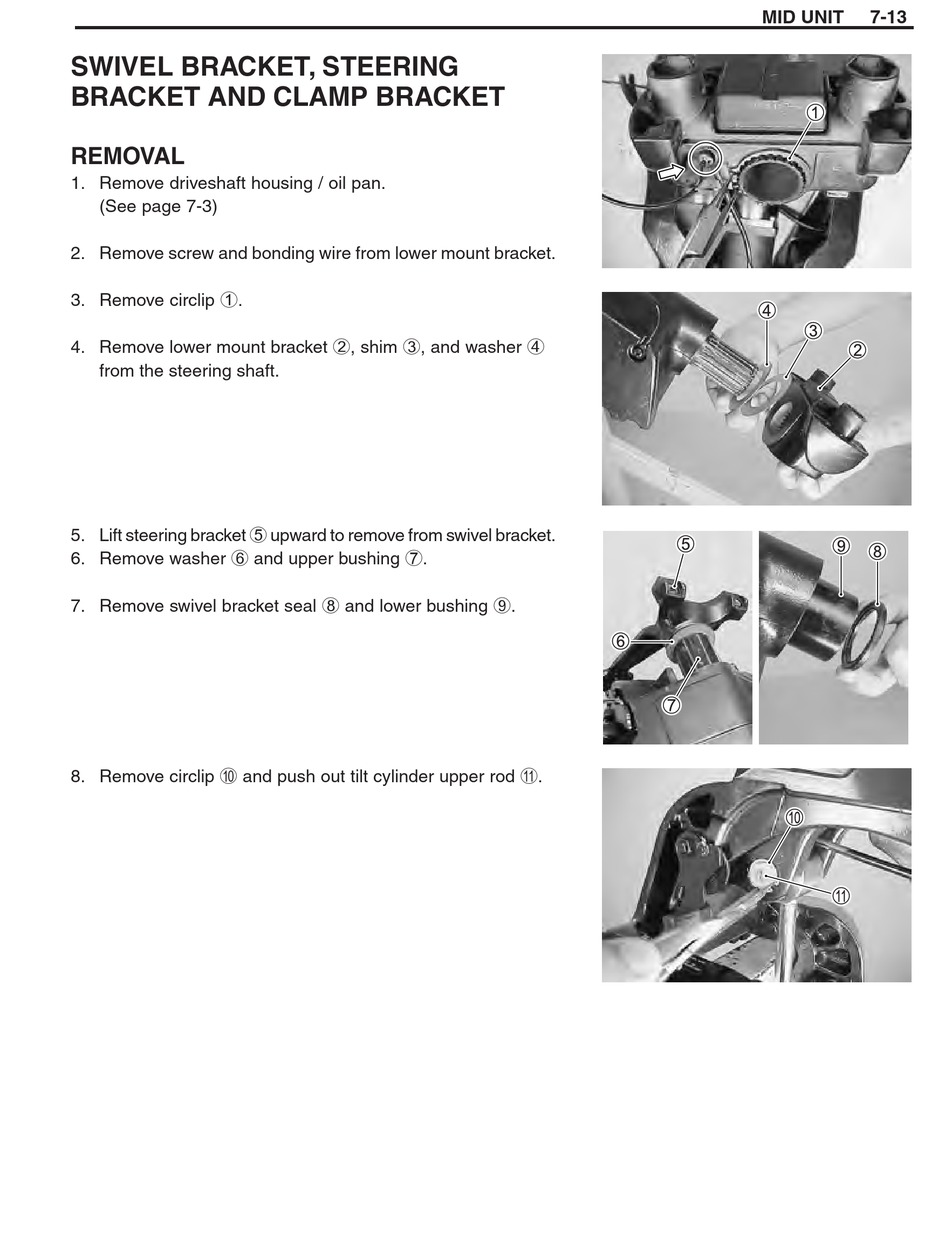

SWIVEL BRACKET, STEERING
BRACKET AND CLAMP BRACKET

REMOVAL

1. Remove driveshaft housing / oil pan.
(See page 7-3)
2. Remove screw and bonding wire from lower mount bracket.
3. Remove circlip 1.
4. Remove lower mount bracket 2, shim 3, and washer 4
from the steering shaft.
5. Lift steering bracket 5 upward to remove from swivel bracket.
6. Remove washer 6 and upper bushing 7.
7. Remove swivel bracket seal 8 and lower bushing 9.
8. Remove circlip 0 and push out tilt cylinder upper rod A.
MID UNIT 7-13
