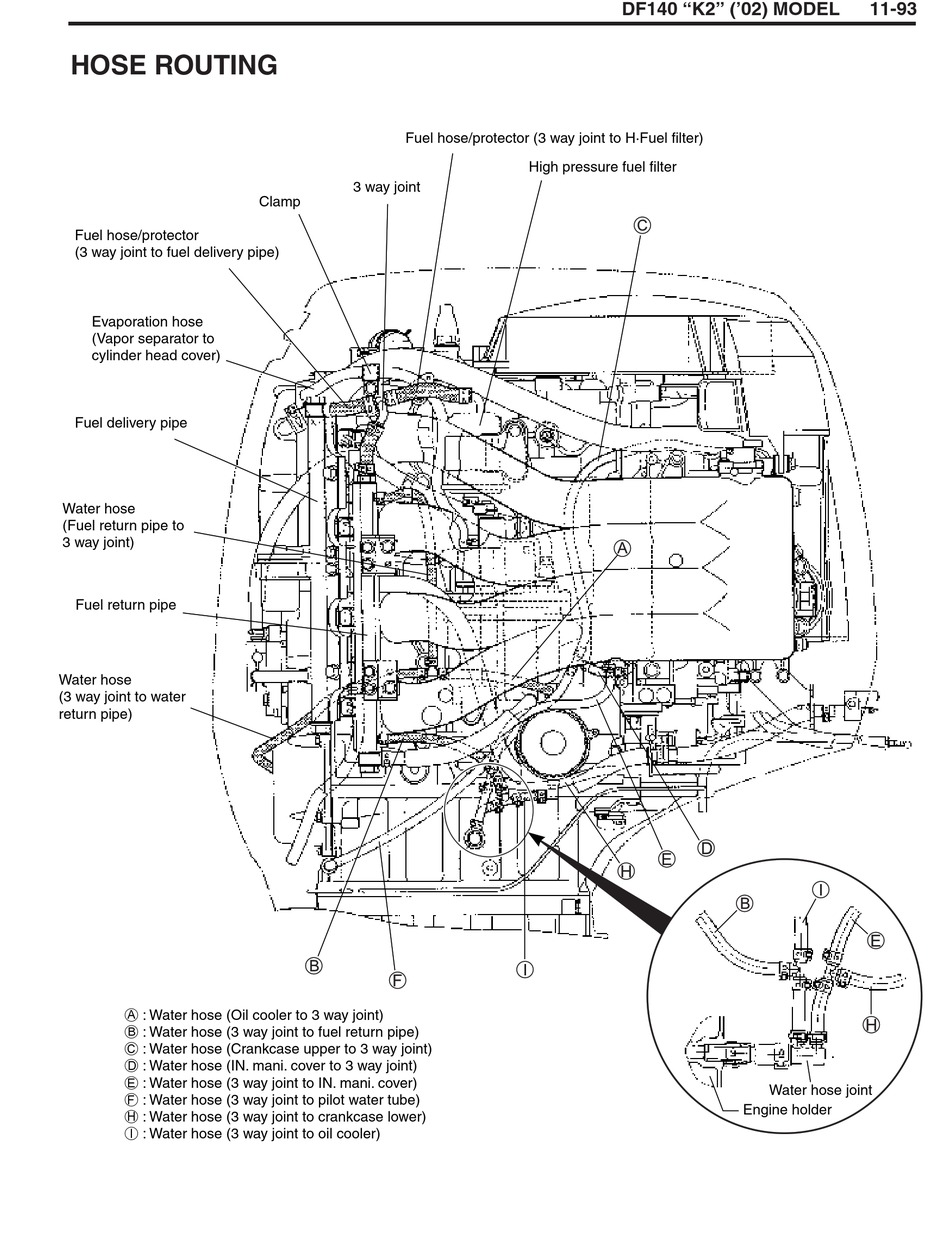

HOSE ROUTING

Fuel hose/protector
(3 way joint to fuel delivery pipe)
Evaporation hose
(Vapor separator to
cylinder head cover)
Fuel delivery pipe
Water hose
(Fuel return pipe to
3 way joint)
Fuel return pipe
Water hose
(3 way joint to water
return pipe)
A : Water hose (Oil cooler to 3 way joint)
B : Water hose (3 way joint to fuel return pipe)
C : Water hose (Crankcase upper to 3 way joint)
D : Water hose (IN. mani. cover to 3 way joint)
E : Water hose (3 way joint to IN. mani. cover)
F : Water hose (3 way joint to pilot water tube)
H : Water hose (3 way joint to crankcase lower)
I : Water hose (3 way joint to oil cooler)
Fuel hose/protector (3 way joint to H·Fuel filter)
3 way joint
Clamp
DF140 "K2" ('02) MODEL
High pressure fuel filter
11-93
Water hose joint
Engine holder
