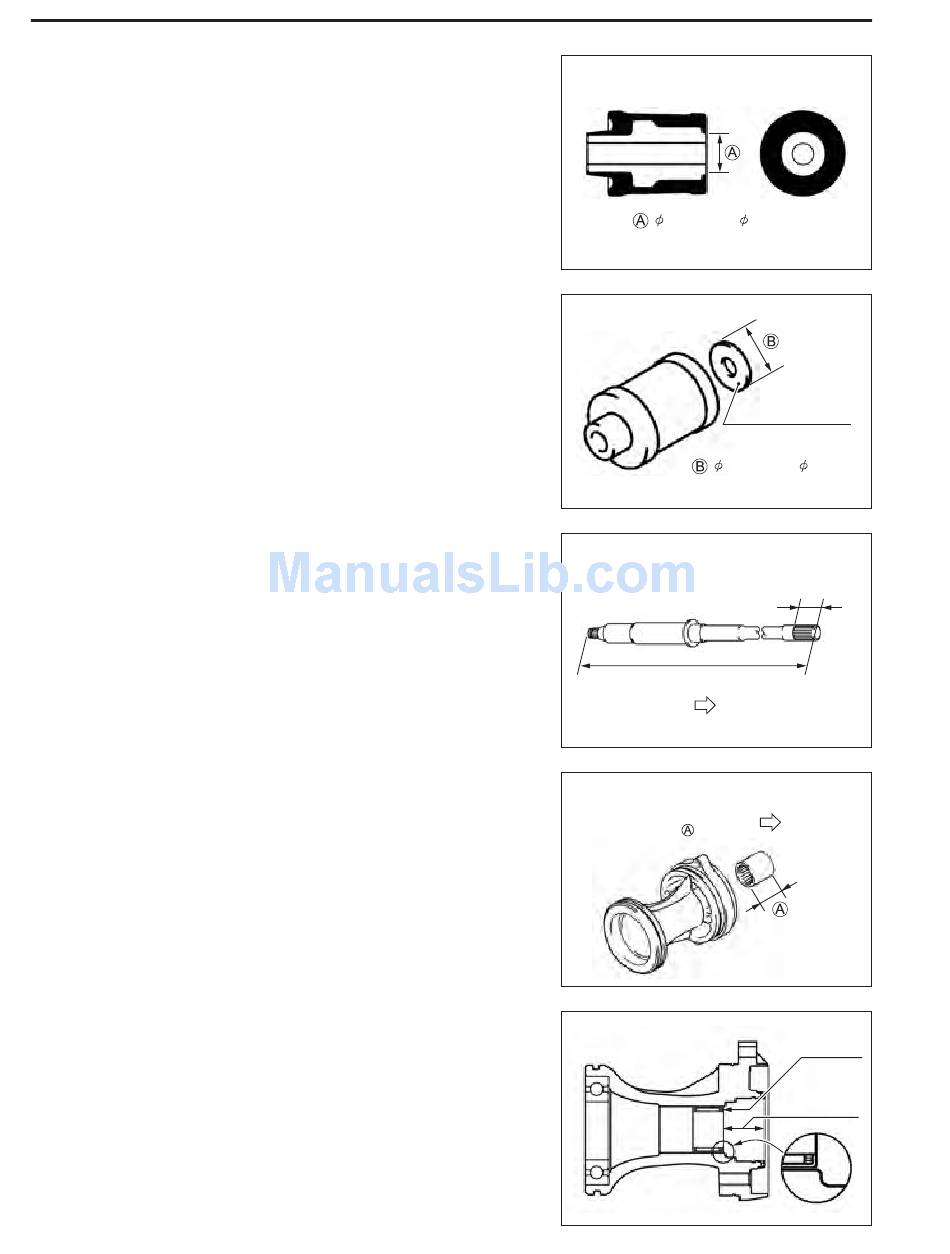

Upper Mount; Drive Shaft; Propeller Shaft Bearing Housing - Suzuki DF 90 Service Manual

13-26 DF90/115/140 "K3" ('03) MODEL

UPPER MOUNT

FOR DF90/115
The upper mount has been changed in shape of core metal.
In accordance with this change, the thrust stopper washer has
been changed in diameter.
DRIVESHAFT
The drive shaft has been changed in length.

PROPELLER SHAFT BEARING HOUSING

The propeller shaft bearing has been changed in number and
size.
When installing the bearing, stamped mark of bearing must face
outside.
Place bearing in the position shown figure.
Upper mount
32 mm →
24 mm
Early Late
Thrust
stopper washer
32 mm →
Early
Early
59 mm → 49 mm
802.5 mm (L) 792.5 mm (L)
929.5 mm (UL) 919.5 mm (UL)
Early Late
Early
Number : 2 pieces
Length : 20 mm
22 mm
Late
Late
Late
1 piece
30 mm
Stamped
mark side
32.5 mm
