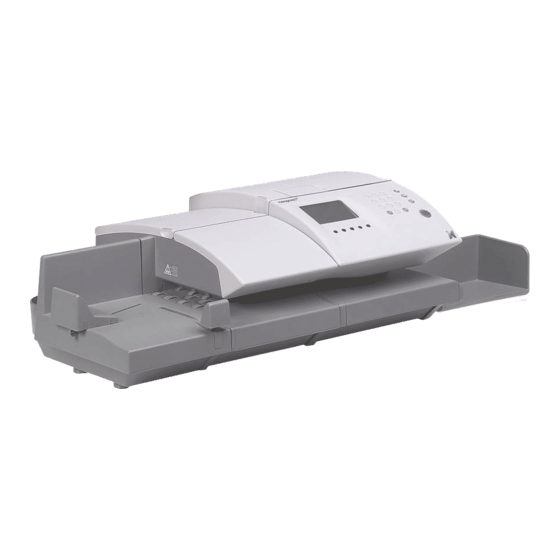

Franking machine
Hide thumbs Also See for IJ 80:
Table of Contents

Advertisement

INTRODUCTION
Congratulations on choosing the Neopost IJ 80/90/110 franking
machine. The IJ 80/90/110 is the result of the expertise and
innovative capabilities of a worldwide Neopost group and, using
ink jet technology, it will integrate itself into your working
environment to enhance your mail processing operation.
The IJ 80/90/110 has many capabilities that will be important to
your business:
As well as being productive (up to 250 letters per minute for
machine only, and up to 125 letters per minute in dynamic scale
mode), the IJ 80/90/110 is designed to be a user friendly
machine that can fit into any working environment with its innovative
and attractive design, simple user settings and very low noise
level. The high volume capacity and sealed ink system makes it
easy and safe to handle, and the user interface is particularly clear
with a graphic interface, pop up menus and 10 memories to store
favorite jobs.
The IJ 80/90/110 is adaptable and as such can handle many
different types of mail. The optional feeder can be used to
process, in a continuous cycle, items of different sizes (ranging
from postcards to large flats in portrait format) and thick items (up
to 16 mm), with automatic imprint shift. For thicker mail items or
packages, adhesive labels can be automatically dispensed.
The IJ 80/90/110 is connectable. It can exchange data with
Neopost scales and printers in order to provide optimal mail
processing and reporting.
Finally, the IJ 80/90/110 is a unique communication tool for your
company. Its high quality printing combined with its integrated
library of advertisement messages, mail class dies and free
format text will afford you extra tools to enhance your company's
image and the impact of your mail.
You will very soon discover for yourself that the IJ 80/90/110 is the
ultimate choice in quality and productivity for mail processing
equipment.
