Paper stacking with finishing tray

• After the paper has been fed through the Exit Roller, the paper drops onto the Finishing
Tray. Then, the Paddle taps the top of the paper twice (once for the additional sheets) so
that the trailing edge of the paper reaches the Finishing Tray Stopper.
• After Paddle operation is finished, Swing Guide will be lowered to prevent curling of
paper.
• The Paddle Motor provides the drive for the Paddle and Its home position is detected
with the Paddle Home Position Sensor.

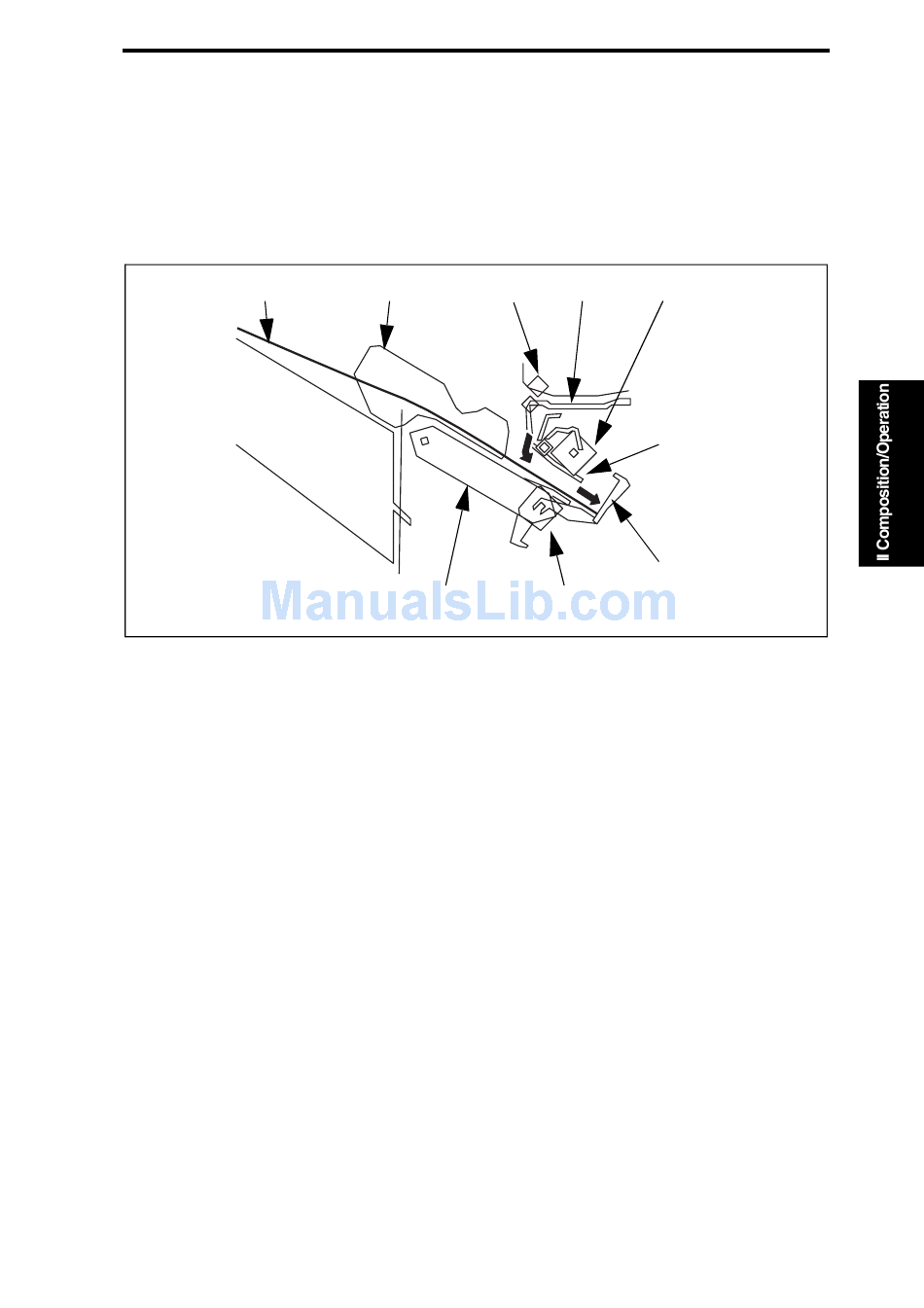

Paper Aligning Plate Exit Roller
Paper Exit Belt
2-9
Mechanical operations
Paddle Upper Exit Roller
Swing Guide
Finishing Tray Stopper
Lower Exit Roller
