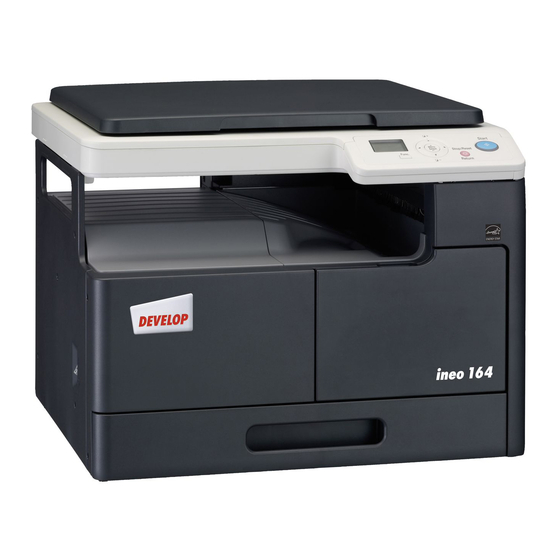

Develop ineo 164 Installation Manual

© DEVELOP GmbH
I. Outline of Installation Procedures for
ineo 164
Follow the notes below to install the printer and the
multi bypass tray.
Note:
• For the detailed installation procedures for the
multi bypass tray, see the Installation Manual,
and perform the procedures correctly.
• Once the power switch is turned on, do not turn
it off until the installation has been completed.
• When transporting or moving the printer, assign
adequate number of persons
(the printer mass: 23.5 kg/52 lb).
• This manual provides the illustrations of the
printer and the accessory parts that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the appear-
ance of yours to follow the installation proce-
dure. This does not cause any significant
change or problem with the procedure.
1BP0831301

INSTALLATION MANUAL

A0XXIXC001MA
II. Installation Space (unit: mm (inch))
ineo 164 + MB-503
928 (36-1/2)
783 (30-13/16)
607 (23-7/8)
570 (22-7/16)
III. Pre-installation Check Items
1. Install the printer at a horizontal and stable place.
2. Be sure to use a power source of the voltage and
frequency indicated in the product specifications.
Ensure that the current carrying capacity of the
power outlet is at least equal to the current listed
in the product specifications.
3. Power the printer directly from a dedicated power
outlet. (Do not use an extension cord.)
4. Do not plug or unplug the power cord with wet or
dirty hands, otherwise you may get an electric
shock.
5. Avoid a hot and humid environment, or a place
exposed to direct sunlight.
6. Avoid a dusty location, or a place near volatile
and flammable substances.
7. Avoid a poorly ventilated place.
E-1
Applied Machine:
530 (20-7/8) 200
(8)
927 (36-1/2)
A0XXIXC002MA
A0XX-9635-00
