QC 2235plus Theory of Operation Ver.1.0 Mar. 2004
4.3

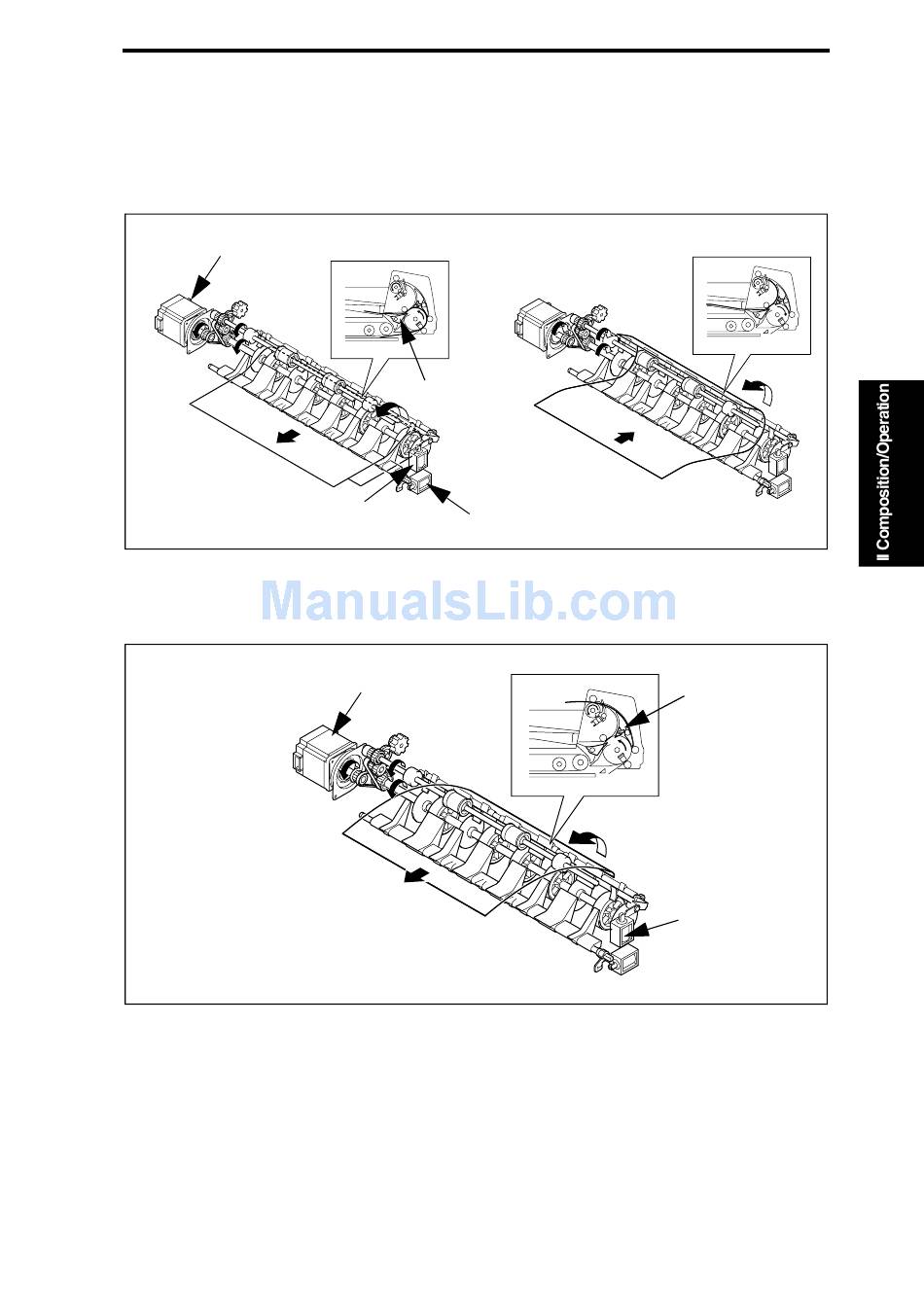

Document exit mechanism

4.3.1

Single-sided document mode

• The original transported by the Transport Belt is sent to the switchback section and then
ejected onto the Exit Tray with its face-down in order to keep the original pages in proper
order.
Exit Motor (M3-DF)
Exit Solenoid (SL2-DF)
4.3.2

Double-sided document mode

• In the Double-Sided Mode, an original which has had its 2nd side scanned is ejected
onto the Exit Tray without the turn-over motion. (Face-down Ejection)
Turnover Gate
Turnover Solenoid (SL1-DF)
Exit Motor (M3-DF)
2-7
Mechanical operations
Exit Gate
Exit Solenoid
(SL2-DF)
