Test images

Loading test images

FirePackage
1. Start SmartView.
2. Click the Edit settings button.
3. Click Adv1 tab.
4. In combo box Test images
choose Image 1 or another test
image.
Table 79: Loading test images in different viewers

Test images b/w cameras

Marlin b/w cameras have two test images that look the same. Both images
show a gray bar running diagonally (mirrored at the middle axis).
• Image 1 is static.
• Image 2 moves upwards by 1 pixel/frame.

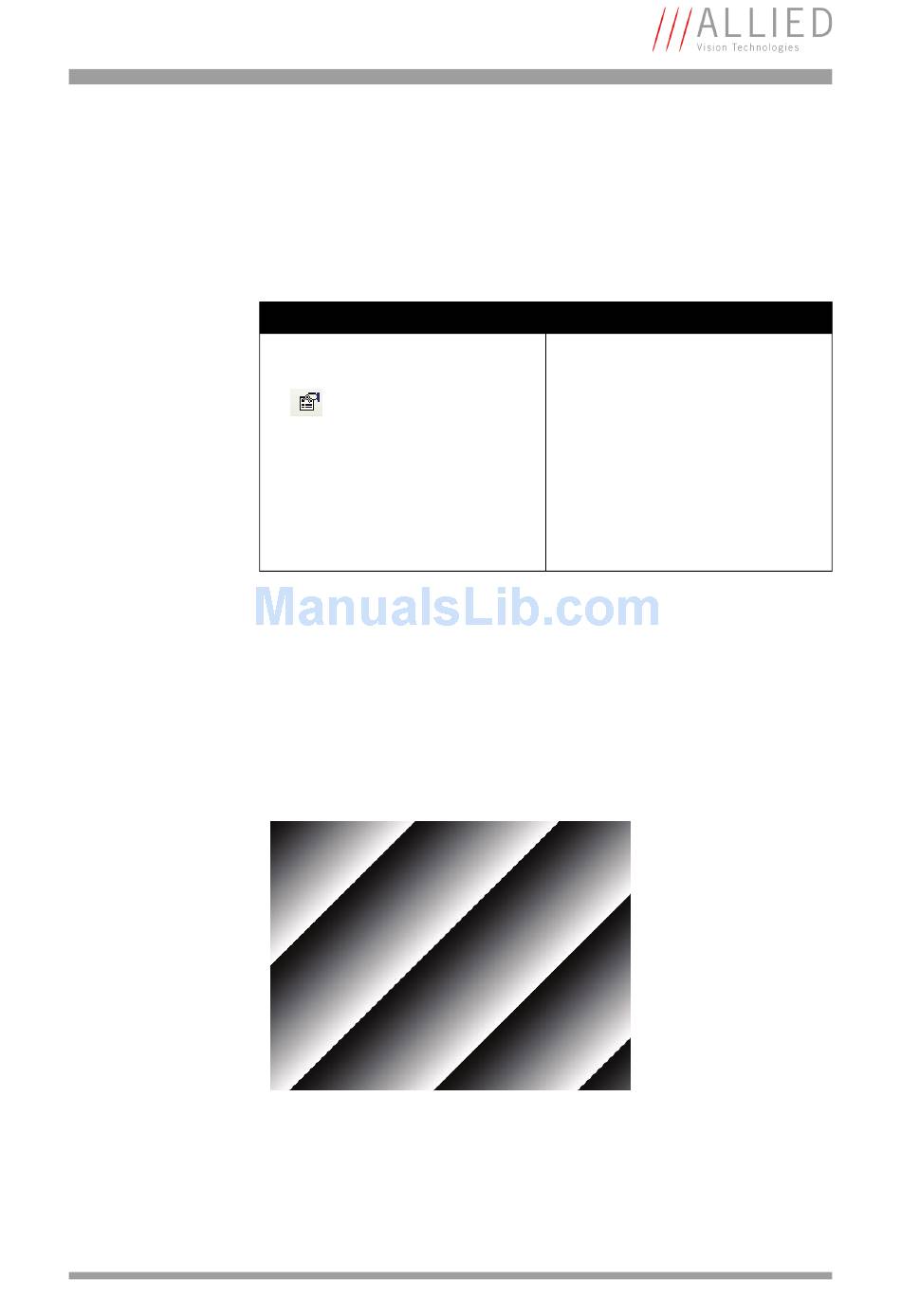

Figure 81: Gray bar test image
Fire4Linux
1. Start cc1394 viewer.
2. In Adjustments menu click on
Picture Control.
3. Click Main tab.
4. Activate Test image check box
on.
5. In combo box Test images
choose Image 1 or another test
image.
