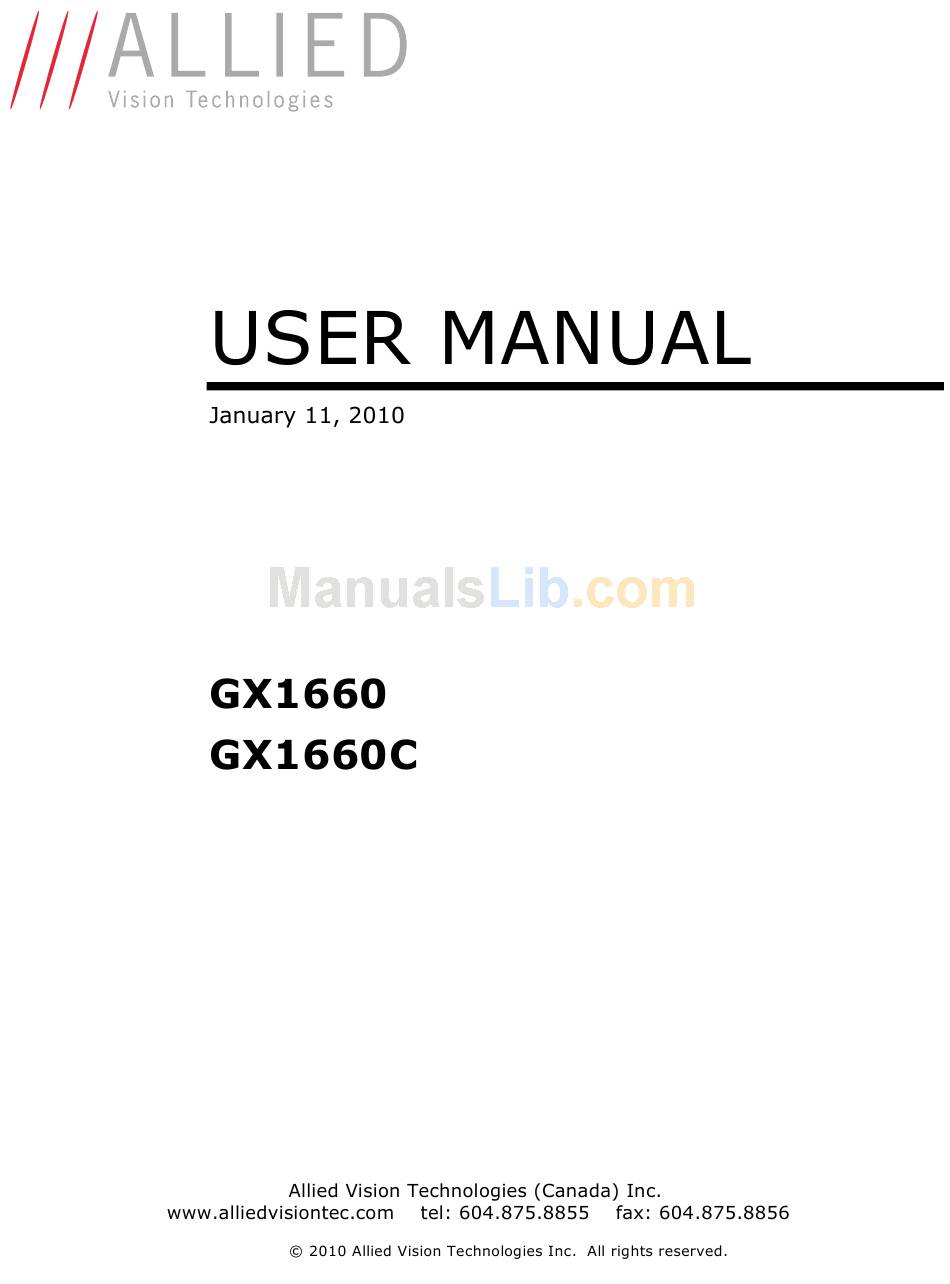

  • Page 2 GX1660 User Manual Table of Contents ... ii Introduction ...1 Precautions ...1 Warranty ...1 Specifications ...2 Supported Features ...3 Mechanical ...4 Connections ...5 Cleaning the Sensor ...11 Adjusting the C-mount ...12 Network Card Configuration ...13 GigE Sample Viewer and Filter Driver ...17 Trouble Shooting ...18...
  • Page 3 GX1660 User Manual The GX1660 series of cameras are sensitive, 66 frames per second, 2 megapixel, Gigabit Ethernet cameras based on the Kodak KAI-02050 CCD sensor. These cameras support the use of 1 or 2 gigabit Ethernet ports in a lag configuration for higher bandwidth requirements.
  • Page 4 GX1660 User Manual Sensor Type Sensor Shutter Type Image Resolution Pixel Size Optical Format Lens Mount Color Sensor Filter Pattern Full Resolution Frame Rate Power Requirements Digitization Trigger latency* Trigger Jitter* Operating Temperature Operating Humidity Size and Weight Hardware Interface Standard...
  • Page 5 GX1660 User Manual Imaging Modes Fixed Rate Control External Trigger Delay External Trigger Event Exposure Time Gain Region of Interest (ROI) independent x and y control with 1 pixel resolution*** Horizontal Binning Vertical Binning Pixel Formats Sync Out Modes *On monochrome versions only.
  • Page 6 GX1660 User Manual 70-0057A-A GX C-MOUNT Allied Vision Technologies (Canada) Inc.
  • Page 7 GX1660 User Manual 70-0057A-A GX CONNECTION DIAGRAM Allied Vision Technologies (Canada) Inc.

  • Page 8: Power Ground

    GX1660 User Manual These ports conform to the IEEE 802.3 1000BASE-T standard for Gigabit Ethernet over copper. It is recommended that CAT5E or CAT6 compatible cabling and connectors be used for best performance. Cable lengths up to 100m are supported. For higher bandwidth requirements, both ports can be used in a link aggregation group (LAG) configuration.

  • Page 9: External Power

    GX1660 User Manual EXTERNAL POWER This connection provides the main power for the camera. The camera operates from a DC voltage between 5V to 24V. The current capacity of the power supply can be estimated by dividing the camera’s power requirement by the external power voltage. It is also recommended to factor this by about 50% as follows: Power supply current capacity = (power specification / external voltage) x 1.5...
  • Page 10 GX1660 User Manual SYNC OUTPUTS (1 to 4) These signals are optically isolated and require the user to provide a high voltage level (USER VCC) and signal common (USER GROUND). USER VCC can be from 5V to 24V. ICC is a function of USER VCC and load resistor R.
  • Page 11 GX1660 User Manual These signals only function as outputs and can be configured as follows: Exposing Trigger Ready Trigger Input Readout Strobe Imaging Any of the above signals can be set for active high or active low. RS-232 RXD and RS-232 TXD These signals are RS-232 compatible.

  • Page 12: Pin Function

    GX1660 User Manual LENS CONTROL PORT AS SEEN FROM BACK OF This connector provides the signals necessary to control the iris, focus, and zoom of most commercially available TV Zoom lenses. The camera can be configured to operate lenses with unipolar voltage requirements of 6V up to 12V or lenses which operate with bipolar voltages from ±6V up to ±12V.
  • Page 13 GX1660 User Manual DO NOT CONTACT CLEAN SENSOR UNLESS ABSOLUTELY NECESSARY. Debris on the image sensor or optical components will appear as a darkened area or smudge on the image that does not move as the camera is moved. Do not confuse this with a pixel defect which will appear as a distinct point.
  • Page 14 GX1660 User Manual THE C-MOUNT IS ADJUSTED AT THE FACTORY AND SHOULD NOT REQUIRE ADJUSTING. If for some reason, the C-mount requires adjustment, use the following method. Use an adjustable wrench to loosen locking ring. Be careful not to scratch the camera. When the locking ring is loose, unthread the ring a few turns from the camera face.
  • Page 15 GX1660 User Manual Operating GigE Vision GX cameras using multiple network adaptors The GX series cameras offer two Gigabit Ethernet ports for image data transfer and control. Users can connect one or both ports on the GX to Ethernet adapter ports on a host computer.
  • Page 16 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 17 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 18 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 19 GX1660 User Manual o Download GigE Sample Viewer from www.alliedvisiontec.com. This will install the Sample Viewer application program, drivers, and optionally the Prosilica Filter Driver. The Filter Driver will improve CPU performance and is recommended. o Plug in the GX camera Ethernet cable(s) and power. Verify that the Green LED is a solid green.
  • Page 20 GX1660 User Manual The Green LED is the camera power indicator. If unlit, check the power adaptor. If possible, swap with one that is known to work. If using a custom power adaptor, be sure the adaptor supports the voltage and power requirements of the camera . If the LED still does not light up, contact AVT Canada Inc.
  • Page 21 GX1660 User Manual The following example is not on the same Subnet: NIC IP 169.250.23.2 Subnet Mask: 255.255.255.0, CamIP 169.254.13.0 Subnet Mask: 255.255.0.0. This can happen if you use a non AutoIP range on your NIC and it doesn’t have access to a DHCP server. Either change your NIC IP to be in the AutoIP range, or fix the camera IP address to be on the same subnet as your NIC.
  • Page 22 GX1660 User Manual All stats 0. Likely a firewall is blocking incoming traffic. Disable your firewall. Check your camera trigger settings. Many camera trigger modes require a software or hardware trigger event to capture frames. Packets are incoming, but all dropping. Be sure you have JumboFrames enabled on your NIC.
  • Page 23 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 24 GX1660 User Manual VDD+3.3 CAMERA LOGIC SY NC IN 1 CAMERA LOGIC SY NC IN 2 3.3V LOGIC CAMERA LOGIC SY NC OUT 1 CAMERA LOGIC SY NC OUT 2 CAMERA LOGIC SY NC OUT 3 CAMERA LOGIC SY NC OUT 4 Allied Vision Technologies (Canada) Inc.
  • Page 25 GX1660 User Manual CAMERA POWER 5V POWER CIRCUIT USER LOGIC SY NC IN 1 USER LOGIC SY NC IN 2 USER LOGIC SY NC OUT 1 USER LOGIC SY NC OUT 2 USER LOGIC SY NC OUT 3 USER LOGIC SY NC OUT 4 SN74ABT244APWR This diagram indicates one example of a 5V TTL based user trigger circuit.
  • Page 26 GX1660 User Manual TV ZOOM LENS BIPOLAR TYPE TV ZOOM LENS UNIPOLAR TYPE NOTES: 1. CURRENT CAPACITY PER AXIS = 50mA. 2. VERIFY LENS VOLTAGE SETTING ON CAMERA DOES NOT EXCEED LENS VOLTAGE SPECIFICATION. Allied Vision Technologies (Canada) Inc. ZOOM+...
  • Page 27 GX1660 User Manual POWER GROUND 12V_POWER VIDEO AUTO-IRIS LENS Allied Vision Technologies (Canada) Inc. POWER GROUND 12V POWER LENS POWER VIDEO SIGNAL LENS GROUND JEITA CONNECTOR 70-0057A-A HIROSE HR10A-10P-12S HIROSE 3240-8P-C(50)
  • Page 28 GX1660 User Manual User Trigger Logic Trigger Exposure Readout Interline Time Trigger Ready Imaging Idle Allied Vision Technologies (Canada) Inc. Readout Time Trigger Latency Expose Start Delay Trigger Jitter 70-0057A-A Registered Exposure Time...
  • Page 29 GX1660 User Manual o User Trigger is the trigger signal applied by the user. o Logic Trigger is the trigger signal seen by the camera internal logic. o Tpd is the propagation delay between the User Trigger and the Logic Trigger.
  • Page 30 GX1660 User Manual o For applications requiring the fastest triggering cycle time whereby the camera image sensor is exposing and reading out simultaneously, then the User Trigger signal should be applied as soon as a valid Trigger Ready is detected.
  • Page 31 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 32 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 33 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 34 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 35 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 36 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 37 GX1660 User Manual 70-0057A-A master monitors Allied Vision Technologies (Canada) Inc.
  • Page 38 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 39 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 40 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
  • Page 41 GX1660 User Manual 70-0057A-A Allied Vision Technologies (Canada) Inc.
