Test images
F-201B
The camera has 2 test images that look the same. Both images show a grey bar running
diagonally. One test image is static, the other moves upwards by 1 pixel/frame.

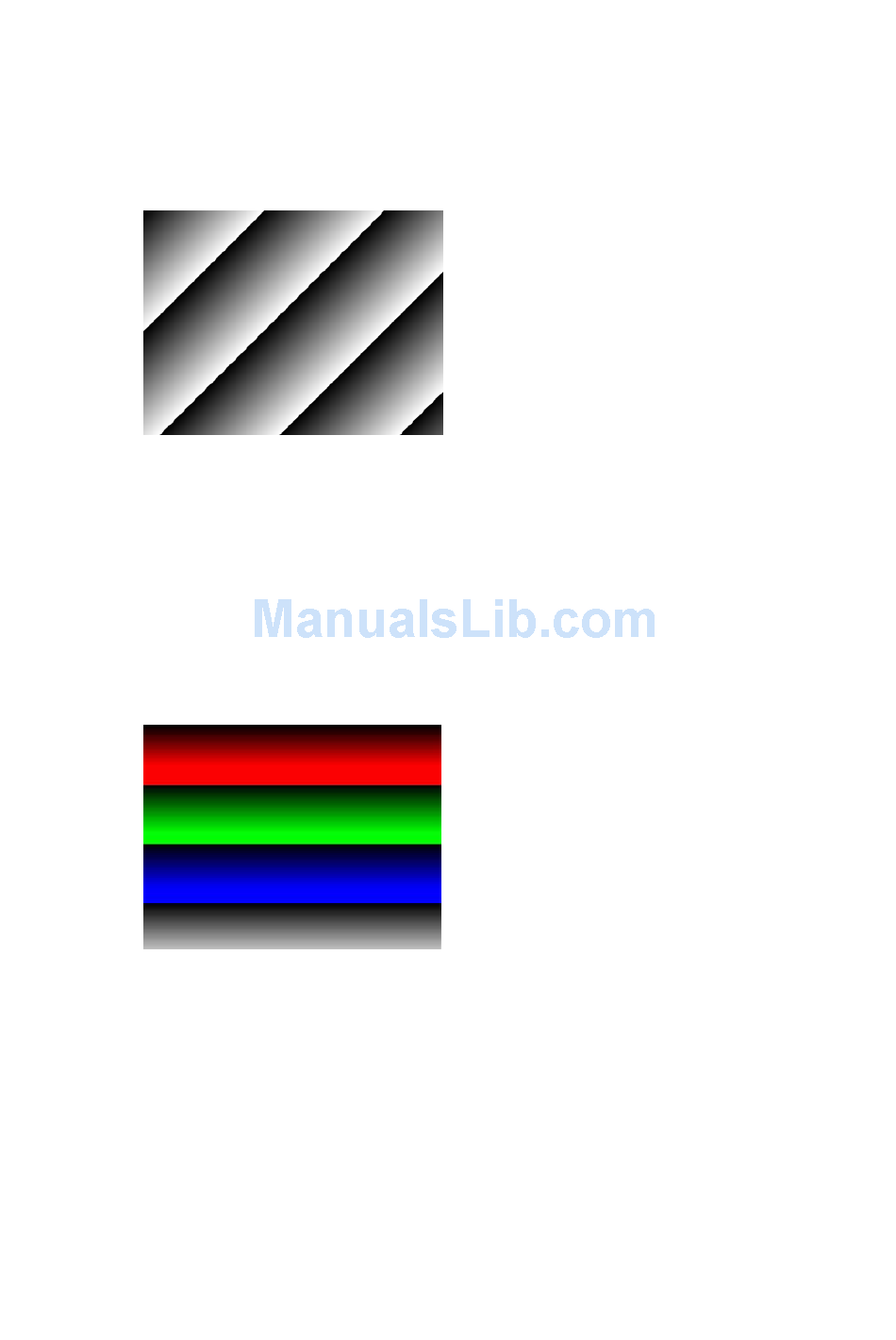

Figure 37 Gray bar test image
Formula for calculating the gray value:
Gray value = (x+y) MOD256 (8-bit mode)
Gray value = (x+y) MOD1024 (10-bit mode)
F-201C
YUV4:2:2 mode
Figure 38 Color test image
