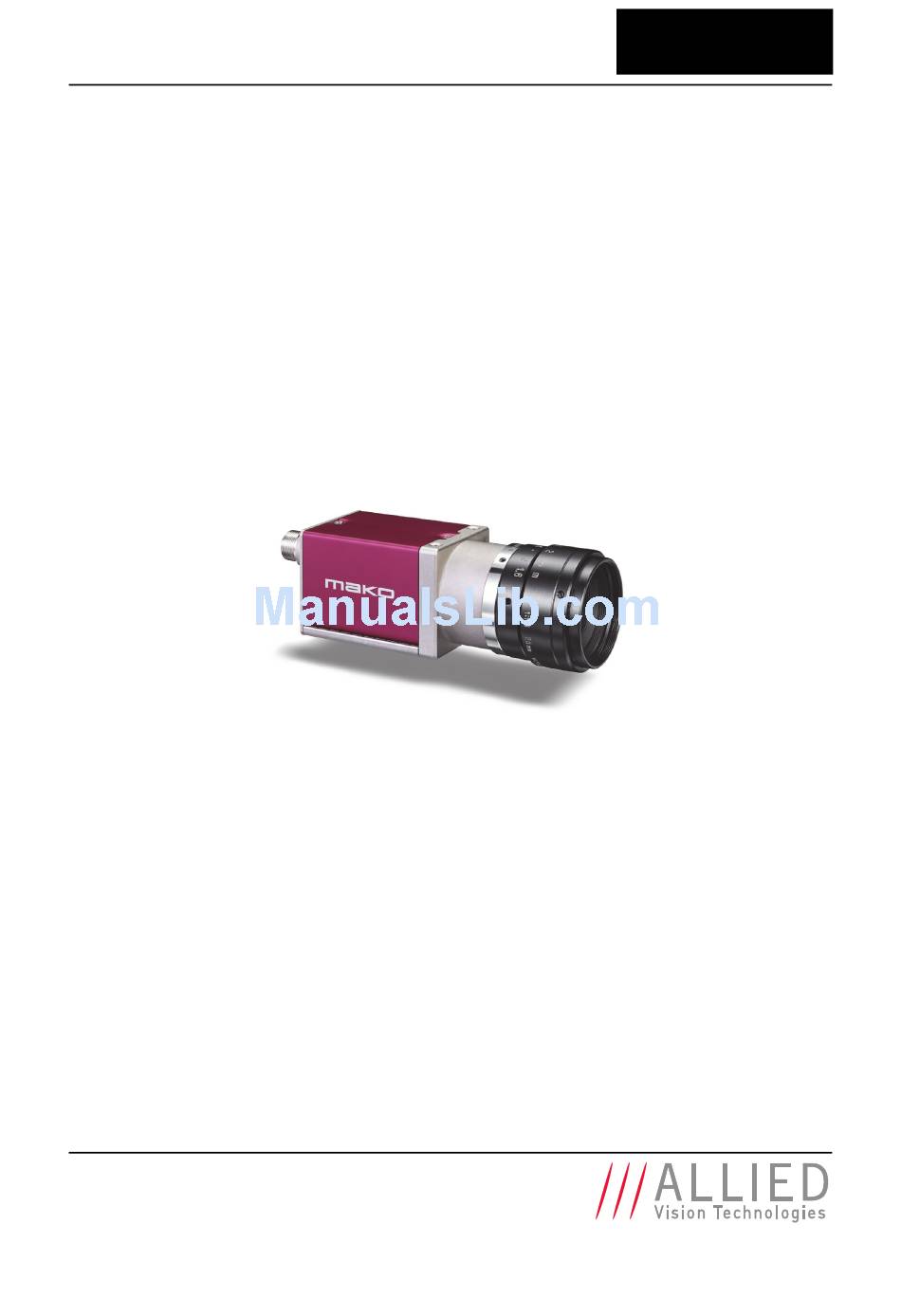

  • Page 1 AVT Mako Technical Manual AVT GigE Vision Cameras V2.0.2 16 September 2013 Allied Vision Technologies GmbH Taschenweg 2a D-07646 Stadtroda / Germany...

  • Page 2: Legal Notice

    These products are not designed for use in life support appliances, devices, or systems where mal- function of these products can reasonably be expected to result in personal injury. Allied Vision Technologies customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Allied Vision Technologies for any damages resulting from such improper use or sale.

  • Page 3: Table Of Contents

    Contents Contacting Allied Vision Technologies ............... 5 Introduction ........................ 6 Document history ........................ 6 Conventions used in this manual..................... 7 Styles ........................... 7 Symbols ........................7 More information ........................ 8 Before operation ......................... 8 Camera cleaning instructions ................9 Warranty ........................9 Avoiding the necessity of camera cleaning ................
  • Page 4 Mako G-032B/C: ROI frame rates................... 55 Mako G-125B/C: ROI frame rates................... 56 Mako G-223B/C: ROI frame rates................... 57 Mako G-419B/C: ROI frame rates................... 58 Appendix ........................59 Sensor position accuracy of AVT Mako cameras ................ 59 Index ........................... 60 Mako Technical Manual V2.0.2...

  • Page 5: Contacting Allied Vision Technologies

    38 Washington Street Newburyport, MA 01950, USA Toll Free number +1 877-USA-1394 Tel.: +1 978-225-2030 Fax: +1 978-225-2029 e-mail: info@alliedvisiontec.com Allied Vision Technologies Asia Pte. Ltd. 82 Playfair Road #07-02 D’Lithium Singapore 368001 Tel.: +65 6634-9027 Fax: +65 6634-9029 e-mail: info@alliedvisiontec.com...

  • Page 6: Introduction

    For detailed information on camera features and controls refer to the AVT GigE Camera and Driver Features and AVT GigE Camera and Driver Attributes doc- uments. AVT Mako literature: http://www.alliedvisiontec.com/us/support/downloads/  product-literature/mako.html...

  • Page 7: Conventions Used In This Manual

    Conventions used in this manual To give this manual an easily understood layout and to emphasize important information, the following typographical styles and symbols are used: Styles Style Function Example Bold Programs, inputs or highlighting bold important things Input Courier Code listings etc.

  • Page 8: More Information

    More information For more information on hardware and software read the following: • The AVT GigE Installation Guide describes the hardware installation pro- cedures for AVT GigE cameras and contains important safety instructions.. • AVT GigE Camera and Driver Features describes the camera controls of AVT‘s VIMBA SDK (GenICam) and feature related items.

  • Page 9: Camera Cleaning Instructions

    Camera cleaning instructions This chapter describes safety instructions/cautions valid for Mako cameras in case of cleaning lenses, optical filters/protection glass or sensors. Note • Please read these instructions before you contact your AVT camera dealer for assistance.  • Ask your AVT camera dealer if you are not familiar with the procedures described below.

  • Page 10: Is It An Impurity? - Identifying Impurities

    Is it an impurity? – Identifying impurities If you observe any image artefacts in your video preview of your Mako camera you may have impurities either on the lens, filter/protection glass or, on the sensor protection glass. Every Mako camera gets cleaned prior to sealing and shipment;...

  • Page 11: Cleaning Instructions

    Figure 3: Removing IR cut filter/protection glass using special tool (E9020001) 3. If the impurity is neither on the lens nor the IR cut filter/protection glass, it is probably on the sensor. Cleaning Instructions Perform all cleaning operations (lenses, filter/protection glass, and sensor) in a dust-free clean-room.
  • Page 12 3. Wipe the glass surface with a spiral motion from the center to the rim. Normally, several spiral wipes are recommended. Wipe only on glass avoiding contact to metal surfaces, because microscopic dirt could be released and could cause scratches on the glass. Figure 5: Sensor cleaning 4.

  • Page 13: About Mako Gige Cameras

    Mako cameras have a Gigabit Ethernet interface. GigE GigE is the abbreviation for Gigabit Ethernet. All AVT Mako cameras are GigE Vision V1.2 compliant cameras with Gigabit Ethernet interface. AVT Mako cameras work with Gigabit Ethernet hardware and cable lengths up to 100 m.

  • Page 14: Conformity

    Conformity Allied Vision Technologies declares under its sole responsibility that all stan- dard cameras of the AVT Mako family to which this declaration relates are in con- formity with the following standard(s) or other normative document(s): • CE, following the provisions of 2004/108/EG directive •...

  • Page 15: Specifications

    Specifications Caution Before operating any AVT camera, read the safety instructions and ESD warnings in the AVT GigE Installation Guide.  http://www.alliedvisiontec.com/emea/support/downloads/ product-literature/hardware-installation-guide.html Caution Due to the small packaging and high speed of Mako cameras, take special care to maintain a reasonable operating tempera- ...
  • Page 16 Feature Specification External trigger delay 0 to 46 s in 1 μs increments Fixed rate control 0.011 fps ... max. frame rate (steps of 0.001 fps) Imaging modes Free-running, external trigger, fixed rate, software trigger Sync Out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO Internal image memory 64 MByte, up to 202 frames Note...

  • Page 17: Mako G-125B/C

    Mako G-125B/C Feature Specification Sensor Type 1/3 (diag. 6 mm) progressive scan SONY IT CCD ICX445ALA/AQA with EXview HAD microlens Effective chip size 4.8 mm x 3.6 mm Cell size 3.75 μm x 3.75 μm Resolution (max.) 1292 x 964 pixels Lens mount C-Mount: 17.526 mm (in air);...
  • Page 18 Feature Specification Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2) Camera control interface GenICam V1.0 compliant Power requirements DC 12 V - 24 V + /- 10% via 8-pin HIROSE or PoE (compliant with Power over Ethernet IEEE 802.3at/af) Power consumption With PoE typical 2.7 W;...

  • Page 19: Mako G-223B/C (Nir)

    Mako G-223B/C (NIR) Feature Specification Sensor Type 2/3 (diag. 8 mm, 1 inch lens recommended) CMOS sensor: CMOSIS CMV2000 (monochrome/color) with microlenses and global shutter The monochrome version is also available as NIR enhanced variant (Mako G-223B NIR). Except for the sensor response, the technical data of the NIR enhanced variant are identical with Mako G-223B.
  • Page 20 Feature Specification One configurable optocoupled input, three configurable optocoupled outputs Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2) Camera control interface GenICam V1.0 compliant Power requirements DC 12 V - 24 V + /- 10% via 8-pin HIROSE or PoE (compliant with Power over Ethernet IEEE 802.3at/af) Power consumption With PoE typical 2.8 W;...

  • Page 21: Mako G-419B/C (Nir)

    Mako G-419B/C (NIR) Feature Specification Sensor Type 1/1 (diag. 15.93 mm) CMOS sensor: CMOSIS CMV4000 (mono- chrome/color) with microlenses and global shutter The monochrome version is also available as NIR enhanced variant (Mako G-419B NIR). Except for the sensor response, the technical data of the NIR enhanced variant are identical with Mako G-419B.
  • Page 22 Feature Specification One configurable optocoupled input, three configurable optocoupled outputs Digital interface IEEE 802.3 1000BASE-T (GigE Vision V1.2) Camera control interface GenICam V1.0 compliant Power requirements DC 12 V - 24 V + /- 10% via 8-pin HIROSE or PoE (compliant with Power over Ethernet IEEE 802.3at/af) Power consumption With PoE typical 2.7 W;...

  • Page 23: Spectral Sensitivity

    Spectral sensitivity Note All measurements were done without protection glass / without filter.  The uncertainty in measurement of the quantum efficiency values is 10%. This is due to: • Manufacturing tolerance of the sensor. • Uncertainties in the measuring apparatus itself (Ulbricht sphere, optometer, etc.).
  • Page 24 1000 Wavelength [nm] Figure 8: Spectral sensitivity of Mako G-032B Green Blue Wavelength [nm] Figure 9: Spectral sensitivity of Mako G-032C (without IR cut filter) Mako Technical Manual V2.0.2...
  • Page 25 1000 Wavelength [nm] Figure 10: Spectral sensitivity of Mako G-125B Green Blue Wavelength [nm] Figure 11: Spectral sensitivity of Mako G-125C (without IR cut filter) Mako Technical Manual V2.0.2...
  • Page 26 Mako G-223 Mako G-223 NIR 1000 1100 Wavelength [nm] Figure 12: Spectral sensitivity of Mako G-223B (NIR) (without IR cut filter) Green Blue 1000 1100 Wavelength [nm] Figure 13: Spectral sensitivity of Mako G-223C (without IR cut filter) Mako Technical Manual V2.0.2...
  • Page 27 Mako G-419 Mako G-419 NIR 1000 1100 Wavelength [nm] Figure 14: Spectral sensitivity of Mako G-419B (NIR) (without IR cut filter) Green Blue 1000 1100 Wavelength [nm] Figure 15: Spectral sensitivity of Mako G-419C (without IR cut filter) Mako Technical Manual V2.0.2...

  • Page 28: Filter And Lenses

    Filter and lenses IR cut filter: spectral transmission Color cameras are equipped with IR cut filter. The following illustration shows the spectral transmission of the IR cut filter: 1000 Wavelength [nm] Figure 16: Approximate spectral transmission of IR cut filter (may vary slightly by filter lot) (type Hoya C5000) Camera lenses AVT offers different lenses from a variety of manufacturers.

  • Page 29: Mako G-032

    Note • Lenses with focal lengths < 8 mm may show shading in the edges of the image due to microlenses on the sensor.  • The exact values vary and depend on the respective lens. Mako G-032 Focal length for type 1/3 sensor Distance = 500 mm Distance = 1000 mm 4.0 mm 608 mm x 446 mm...

  • Page 30: Mako G-223

    Mako G-223 Focal length for type 2/3*sensors Distance = 500 mm Distance = 1000 mm 4.8 mm 1162 mm x 617 mm 2335 mm x 1240 mm 6 mm 927 mm x 492 mm 1865 mm x 991 mm 6.5 mm 855 mm x 454 mm 1721 mm x 914 mm 8 mm...

  • Page 31: Camera Dimensions

    Camera dimensions Note For information on sensor position accuracy (sensor shift x/y, optical back focal length z and sensor rotation ):  Appendix on page 59. Tripod adapter This tripod adapter (AVT order number 4807) ... • ... can be used for Mako cameras. •...

  • Page 32: Cross Section: C-Mount

    Cross section: C-Mount • All color Mako cameras are equipped with the same IR cut filter. • Mako G-032B/C and Mako G-125B/C are equipped with a 16 mm filter. Maximum Filter 16 protrusion: 9.8 C-Mount Adjustment spacer Figure 18: Mako C-Mount dimensions G-032 / G-125 (16 mm filter) •...

  • Page 33: Cross Section: Cs-Mount

    Cross section: CS-Mount Choose protection glass or filter according to the AVT Modular Concept. Download the AVT Modular Concept at: http://www.alliedvisiontec.com/emea/support/downloads/  product-literature.html Maximum protrusion: 4.8 Filter 16 CS-Mount Adjustment spacer Figure 20: Mako CS-Mount dimensions G-032 / G-125 (16 mm filter) Maximum protrusion: 5.8 Filter 22...

  • Page 34: Adjustment Of The C-Mount And Cs-Mount

    The dimensional adjustment cannot be done by the customer. All modifications have to be done by the AVT factory. Note If you need any adjustments, please contact Customer Care: For phone numbers and e-mail:  Contacting Allied Vision Technologies on page 5. Mako standard housing M3 - 2.3 (2x) 23.7 M3 - 2.2...

  • Page 35: Camera Interfaces

    Camera interfaces This chapter describes the Gigabit Ethernet port, inputs and outputs, and trig- ger features. Note Read all Notes and Cautions in the AVT GigE Installation Guide before using any interfaces.  http://www.alliedvisiontec.com/emea/support/downloads/ product-literature/hardware-installation-guide.html For accessories like cables see: http://www.alliedvisiontec.com/emea/products/ ...

  • Page 36: Gigabit Ethernet Port

    Gigabit Ethernet port The Gigabit Ethernet port conforms to the IEEE 802.31000BASE-T standard for Gigabit Ethernet over copper. To prevent EMI (electromagnetic interference) and for best performance, Category 6 (or higher) cables with S/STP shielding and connectors are recommended. Applications with longer cable lengths or harsh EMI conditions require Category 7 (or higher) cables.

  • Page 37: Mako I/O Connector Pin Assignment

    Mako I/O connector pin assignment Pin Signal Direction Level Description 1 Out 1 Open emitter, Output 1 max. 20 mA 2 Out 2 Open emitter, Output 2 max. 20 mA 3 Out 3 Open emitter, Output 3 max. 20 mA 4 In 1 (high) = 3.0–24.0 V Input 1...

  • Page 38: Mako Input Description

    Mako input description Mako input block diagram external internal 180R GPIn1 InGND Figure 25: Mako input block diagram The inputs can be connected directly to the system for voltages up to 24 V DC. An external resistor is not necessary. Mako delay and minimum pulse width Parameter Value...

  • Page 39: Mako Output Description

    Mako output description Mako block diagram internal external OutVCC GPOut1 GPOut2 GPOut3 Figure 27: Mako output block diagram Caution • Max. 20 mA per output • OutVCC  30 V may damage the camera.  OutVCC Resistor value* 1.0 k at ...
  • Page 40 Optocoupler input (internal) Optocoupler output (external) 100% delay time storage time rise time fall time (= t (= t turn-on time turn-off time Figure 29: Mako output switching times For all Mako models: Parameter and value  1 μs  26 μs ...

  • Page 41: Control Signals

    Control signals The inputs and outputs of the camera can be configured by software. The differ- ent modes are described below. Inputs Polarity selectable via software LP filter Input signal Optocoupler Input state Figure 30: Input block diagram Input/output pin control All input and output signals that pass the I/O connector are controlled by the I/O strobe commands.
  • Page 42 Signal Description Imaging Imaging is high when the camera image sensor is either exposing and/or read- ing out data. Acquiring Active during an acquisition stream. SyncIn1 Active when there is an external trigger at SyncIn1. Strobe1 The output signal is controlled according to Strobe1 settings. Table 15: Output signals Output mode...

  • Page 43: Trigger Timing Diagram

    Trigger timing diagram The following diagram explains the trigger concept in general. Note For trigger description on camera control basis, see AVT GigE Camera and Driver Features  Readout time Trigger latency Exposure Registered exposure start delay User trigger time Note: Jitter at the Logic trigger beginning of an exposure...
  • Page 44 Term Definition Readout High when the camera image sensor is reading out data Trigger latency Time delay between the user trigger and the start of exposure Trigger jitter Error in the trigger latency time Trigger ready Indicates to the user that the camera will accept the next trigger Registered exposure time Exposure time value currently stored in the camera memory...

  • Page 45: Description Of The Data Path

    Description of the data path Block diagrams of the cameras The following diagrams illustrate the data flow and the bit resolution of the image data. The individual blocks are described in more detail in the AVT GigE Camera and Driver Features document.

  • Page 46: Camera Features

    Camera features This chapter describes the camera features as displayed with the viewer of AVT‘s VIMBA SDK. For a detailed description of all GigE camera controls, refer to the AVT GigE Camera and Driver Features:  http://www.alliedvisiontec.com/fileadmin/content/PDF/ Software/Prosilica_software/Prosilica_firmware/ AVT_GigE_Camera_and_Driver_Features.pdf Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4 Acquisition...
  • Page 47 Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4 AcquisitionRecord TriggerSoftware TriggerSource Freerun Line1 FixedRate Software Controls BlackLevelControl BlackLevel BlackLevelSelector ColorTransformationControl ColorTransformationMode Manual ColorTransformationSelector RBGtoRGB ColorTransformationValue ColorTransformationValueSelector DSPSubregion DSPSubregionBottom DSPSubregionLeft DSPSubregionRight DSPSubregionTop DefectMask (only G-223/G-419) DefectMaskColumnEnable Exposure ExposureAuto Once Continuous...
  • Page 48 Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4 GainControl Gain GainAuto Once Continuous GainAutoControl GainAutoAdjustTol GainAutoMax GainAutoMin GainAutoOutliers GainAutoRate GainAutoTarget GainSelector Gamma Iris IrisMode Disabled LUTControl LUTEnable LUTIndex LUTInfo LUTAddress LUTBitLengthIn LUTBitLengthOut LUTSize LUTLoadAll LUTMode Luminance Green Blue LUTSaveAll...
  • Page 49 Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4 BalanceWhiteAutoAdjustTol BalanceWhiteAutoRate DeviceStatus DeviceTemperature DeviceTemperatureSelector EventControl EventData EventAcquisitionEndFrameID EventAcquisitionEndTime- EventAcquisitionRecordTriggerFrameID EventAcquisitionRecordTriggerTimestamp EventAcquisitionStartFrameID EventAcquisitionStartTimestamp EventErrorFrameID EventErrorTimestamp EvenExposureEndFrameID EventExposureEndTimestamp EventFrameTriggerFrameID EventFrameTriggerReadyFrameID EventFrameTriggerReadyTimestamp EventLine1FallingEdgeFram- EventLineFallingEdgeTimestamp EventLineRisingEdgeFrameID EventLineRisingEdgeTime- EventOverflowFrameID EventOverflowTimestamp EventID EventAcquisitionEnd EventAcquisitionRecordTrigger EventAcquisitionStart EventError...
  • Page 50 Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4 EventNotification EventSelector EventsEnable1 GigE BandwidthCtrlMode ChunkModeActive Configuration IP Configuration Mode Current Current Default Gateway Current IP Address Current Subnet Mask Device MAC address GVCP Command Retries Command Timeout Heartbeat Interval GevSCPSPacketSize NonImagePayloadSize...
  • Page 51 Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4 StrobeSource AcquisitionTriggerReady FrameTriggerReady FrameTrigger Exposung FrameReadout Acquiring LineIn1 SyncIn SyncInGlitchFilter SyncInLevels SyncInSelector SyncIn1 SyncOut SyncOutLevels SyncOutPolarity Normal Invert SyncOutSelector SyncOut1 SyncOut2 SyncOut3 SyncOutSource AcquisitionTriggerReady FrameTriggerReady Exposing FrameReadout Imaging Acquiring LineIn1 Strobe1...
  • Page 52 Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4 BinningVertical SensorHeight SensorWidth Info DeviceFirmwareVersion DeviceID DeviceModelName DevicePartNumber DeviceScanType DeviceVendorName FirmwareVerBuild FirmwareVerMajor FirmwareVerMinor SensorBits SensorType SavedUserSets UserSetDefaultSelector Default UserSet1 UserSet2 UserSet3 UserSetLoad UserSetSave UserSetSelector Default UserSet1 UserSet2 UserSet3 Stream Info GSVP Filter Version...

  • Page 53: Frame Memory

    Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4 GSVP Packet Size GSVP Tilting Size GSVP Timeout Statistics Stat Frame Rate Stat Frames Delivered Stat Frames Dropped Stat Frames Rescued Stat Frames Shoved Stat Frames Underrun Stat Local Rate Stat Packets Missed Stat Packets Received Stat Packets Requested...

  • Page 54: Resolution And Roi Frame Rates

    Resolution and ROI frame rates This section charts the resulting frame rate from changing sensor height from full image to a single line. Unless otherwise noted, sensors do not give an increase in readout speed with a reduction in width. Note •...

  • Page 55: Mako G-032B/C: Roi Frame Rates

    Mako G-032B/C: ROI frame rates Max. frame rate of CCD ----------------------------------------------------------------------------------------------------------------------------------------------------- -     – 19.46 μs ROI height 2.29 μs 492 ROI height 195.81 μs Formula 1: Mako G-032: theoretical max. frame rate of CCD Max. frame rate at full resolution according to formula: 102.31 fps ROI height [pixel] Figure 35: Frame rates Mako G-032 as function of ROI height[width=658] ROI height...

  • Page 56: Mako G-125B/C: Roi Frame Rates

    Mako G-125B/C: ROI frame rates Max. frame rate of CCD ----------------------------------------------------------------------------------------------------------------------------------------------------- -     – 34.01 μs ROI height 3.09 μs 964 ROI height 176.42 μs Formula 2: Mako G-125: theoretical max. frame rate of CCD Max. frame rate at full resolution according to formula: 30.32 fps 1000 ROI height [pixel] Figure 36: Frame rates Mako G-125 as function of ROI height[width=1292]...

  • Page 57: Mako G-223B/C: Roi Frame Rates

    Mako G-223B/C: ROI frame rates 5000 900 1000 1100 ROI height [pixel] Figure 37: Frame rates Mako G-223 as function of ROI height ROI height Frame rate 1088 49.51 1000 53.83 59.76 67.15 76.64 89.24 106.81 132.98 176.15 260.80 502.16 934.67 1933.86 2847.38...

  • Page 58: Mako G-419B/C: Roi Frame Rates

    Mako G-419B/C: ROI frame rates 5000 1200 1500 1800 2100 ROI height [pixel] Figure 38: Frame rates Mako G-419 as function of ROI height ROI height Frame rate 2048 26.36 2000 26.99 1800 29.97 1600 33.69 1400 38.47 1200 44.83 1000 53.70 66.95...

  • Page 59: Appendix

    Appendix Sensor position accuracy of AVT Mako cameras Camera body Camera body Pixel area Pixel area Sensor case Sensor case Figure 39: AVT sensor position accuracy Method of positioning Optical alignment of the photo sensitive sensor area into the camera front mod- ule (lens mount front flange).

  • Page 60: Index

    Index Index external trigger........103 external trigger at SyncIn1......103 accuracy external trigger at SyncIn2......103 sensor position........138 acquiring (signal)........103 acquisition stream ........103 AcquisitionTriggerReady (signal)....103 FCC Class B ..........18 AVT sensor position accuracy......138 focal length..........70 frame readout.........103 frame trigger ..........103 FrameReadout (signal) ......103 bandwidth FrameTrigger (signal).......103 save in RAW-mode......117...
  • Page 61 Index SyncIn1 (signal)........103 SyncOutGpoLevels ........103 Mako GigE cameras ........17 system components ........69 NirMode..........112 time delay (trigger) .........105 timing diagram trigger ..........104 Tpd (definition) ........105 output trigger block diagram ........103 timing diagram........104 signals..........103 trigger definitions ........104 outputs ..........102 trigger jitter (definition)......105 common vcc ........101 trigger latency time .........105 general ..........102...
