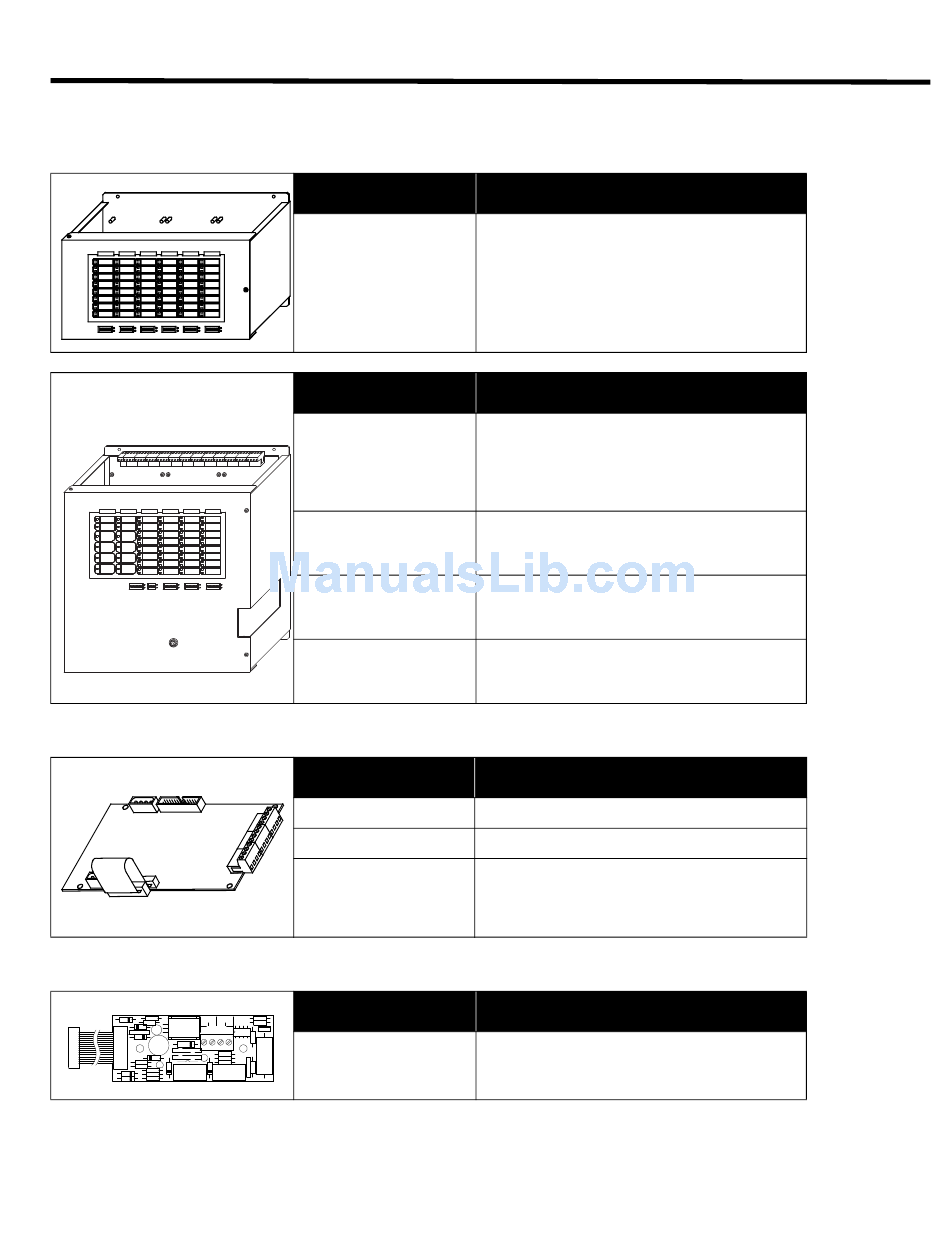

System Components

Chassis

TEST/CONFIG COMMON COMMON
MODE TROUBLE ALARM
REMOTE COMMON
A.C. ON
FAILURE SUPERVISORY
BATTERY
SYSTEM LAMP TROUBLE
RESET TEST
GROUND
FAULT
FIRE AUXILIARY
DRILL DISCONNECT
ACKNOW- BUZZER
LEDGE SILENCE
GENERAL SIGNAL
ALARM SILENCE
1 8 1 4 1 8 1 8 1 8
CONFIG. SIG. ZONE DET. ZONE ZONE ZONE
DISCONNECT DISCONNECT DISCONNECT DISCONNECT
A.C. LINE
CIRCUIT
BREAKER

Circuit Adder Modules

Auxiliary Models

Model
ECH-1048
Model
MCC-1024-6
(add suffix S for slide
switch model)
MCC-1024-12
MCC-1024-6S
MCC-1024-12S
Models
DM-1008A
SGM-1004A
RM-1008A
Model
PR-300
Description
Expander Chassis for up to 48 additional zones /
circuits. DIP switches for individual circuit
disconnection only. For more information see
Appendix C: Module Specifications and Features on
page 57.
Description
Main Chassis with eight Style B / four Style D
initiating circuits, four Style Y or Z indicating circuits,
and a six ampere power supply. For more
information see Appendix C: Module Specifications
and Features on page 57.
Same as MCC-1024-6, but with a 12 ampere power
supply. For more information see Appendix C:
Module Specifications and Features on page 57.
Same as MCC-1024-6, but with disconnect slide
switches instead of DIP switches. For the U.S.A.
Market only.
Same as MCC-1024-12, but with disconnect slide
switches instead of DIP switches. For the U.S.A.
Market only.
Description
Eight detection circuit modules
Four signal circuit modules
Eight relay circuit modules
Description
Polarity Reversal and City Tie Module
