Mechanical Installation and Dimensions

Mechanical Installation and Dimensions
Install the enclosure as shown for the BB-1024 in Figure 1, or for the BB-1072 in Figure 2 on page 7.

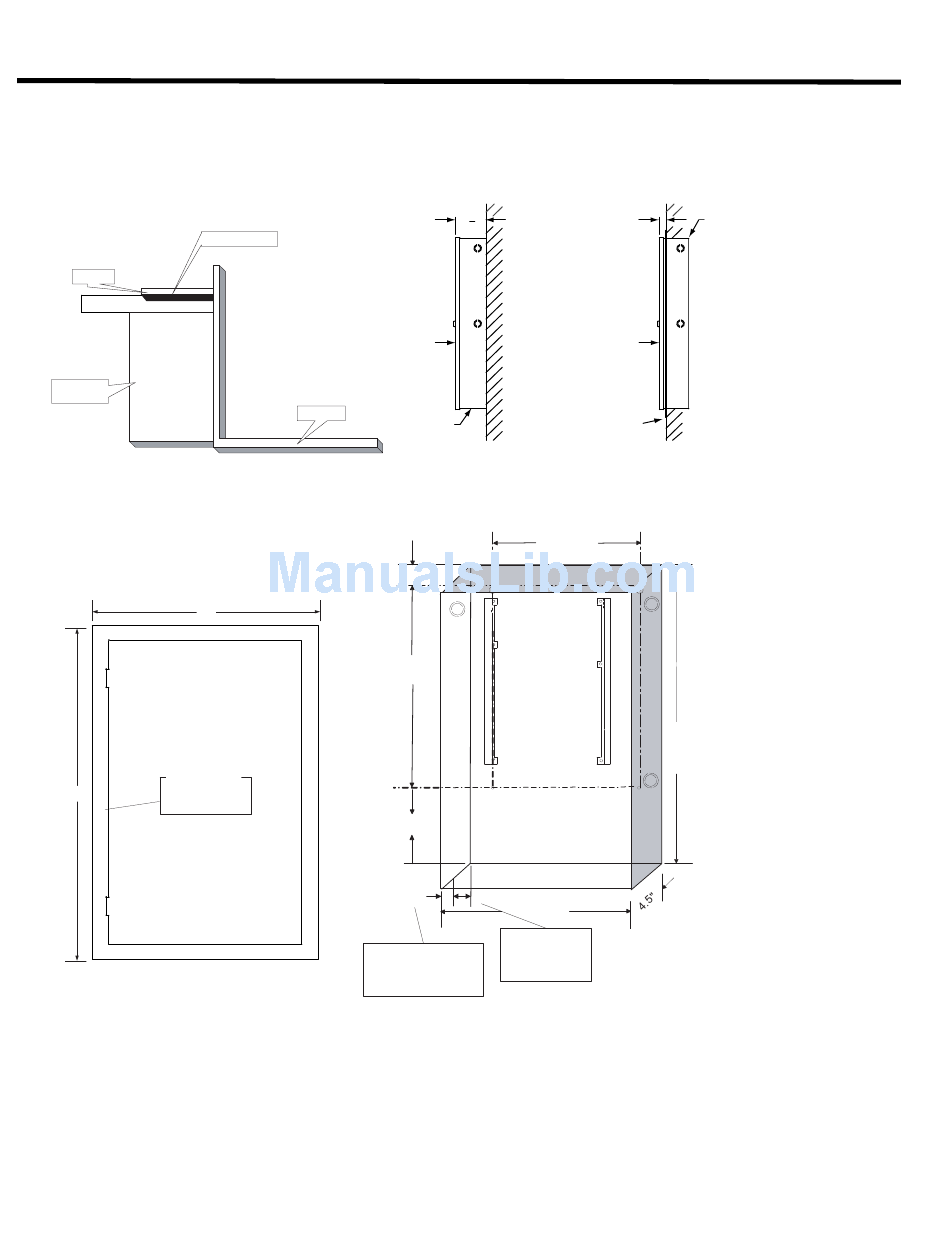

Figure 1 BB-1024 Flush or Surface Enclosure Installation and Dimensions

MATERIAL: 18GA (0.048") THICK COLD ROLLED STEEL
FINISH: PAINTED
WALL
WOOD OR
METAL STUD
PLACE FA-UNIV-TRB TRIM RING OVER BACKBOX
Adhere trim ring to
28.5"
wall surface around
FA-1000 backbox.
6
TRIM RING
BACKBOX
17"
1" is the minimum depth
above the wall required for
semi-flush mounting using
the flush trim ring
"
9
4
16
DOOR
BACKBOX WALL
SURFACE
(SIDE VIEW)
11"
1.5"
20.5"
5.4"
3.5"
1"
14.5"
3.5" is the maximum
depth for semi-flush
mounting using the
flush trim ring
1" BACKBOX
DOOR
WALL
FLUSH TRIM
FLUSH
(SIDE VIEW)
26"
