Main Chassis Installation; Figure 3 Main Chassis Installation - Mircom FA-1000 SERIES Installation And Operation Manual

Mechanical Installation and Dimensions

Main Chassis Installation

1. Install the main chassis in the BB-1024 backbox as shown in Figure 3 below, using the supplied hex-nuts.
2. Group the incoming wires through the top of the enclosure to prepare them for wiring the modules. Do not run
the wires in-between the modules since this could cause a short circuit.
3. Use a wire tie to group wires for easy identification and neatness.
4. Be sure to connect a solid earth ground (from building system ground / to a cold water pipe) to the chassis
earth ground mounting lug, and to connect the earth ground wire lugs from the main chassis to the ground
screw on the backbox.

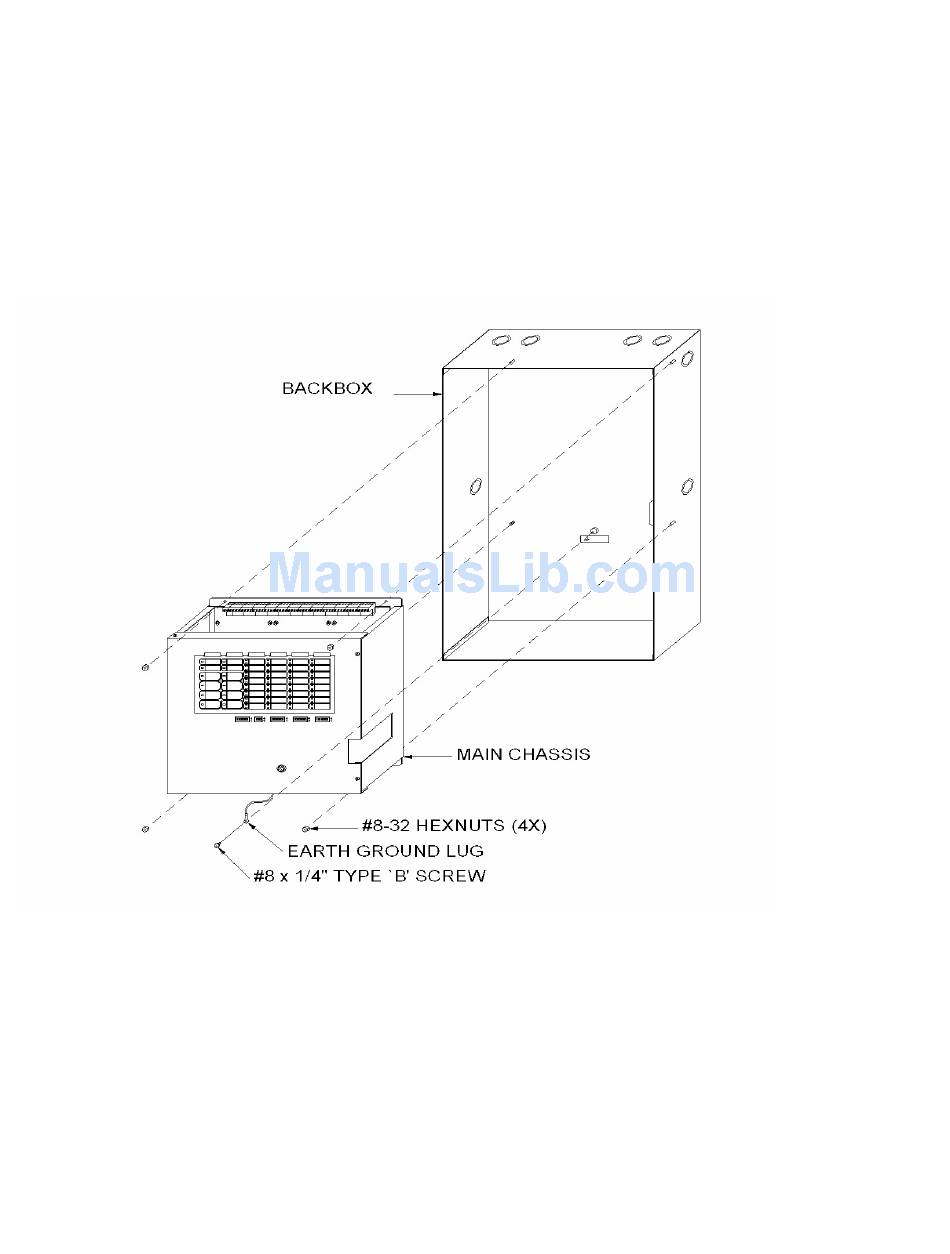

Figure 3 Main Chassis Installation
