NOTES: (UNLESS OTHERWISE SPECIFIED).
1 MOLDING MATERIAL: PVC UL94 V-0
COLOR: YELLOW, APPROXIMATE MATCH TO
PANTONE #109C.
2 CABLE: COMPOSITE, ROUND MADE UP OF 3
COAXIAL-MINIATURE 75 ohm., 30 AWG,
CELLULAR POLYOLEFIN, 90% TINNED
COPPER SHIELD, CABLES WITH FILLER FOR
ROUNDNESS, JACKET COLOR BLACK, MATTE
FINISH.
3. APPROVED VENDOR: PAN INTERNATIONAL ELECTRONICS
(THAILAND) CO, LTD. (66-2) 5293549-50.
PAN INTERNATIONAL DETAILED SPEC IS IN THE PART FILE.
4
THE BARCODE CONTAINS LAST 8 DIGIT OF CABLE PART
NUMBER (REMOVE VV2457).
LABLE SPEC : LASER LABLE
SIZE : LABLE SIZE (12 X 76mm)
© Polycom, Inc.

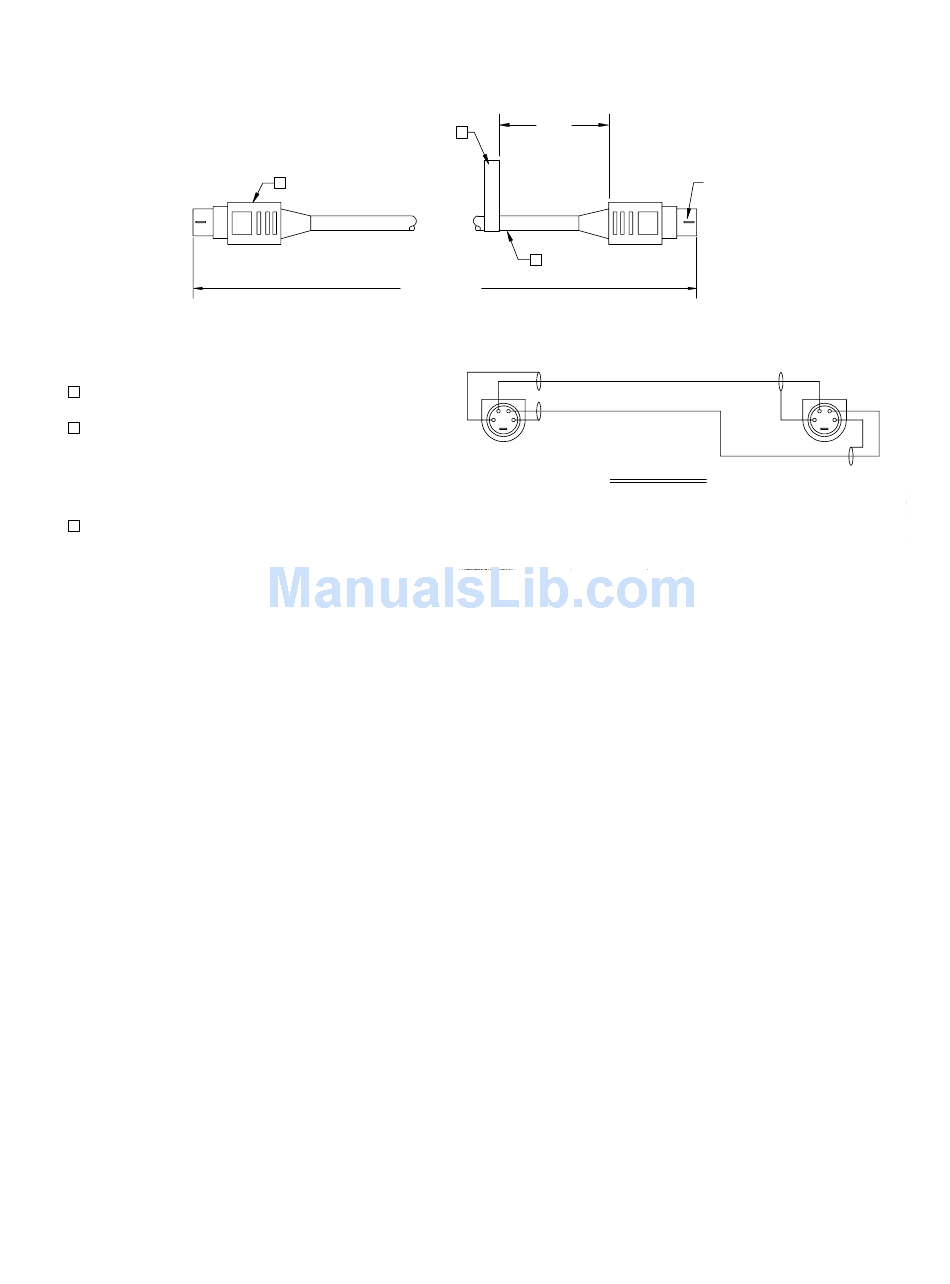

OVER MOLD THE CONNECTOR
1
BOTH ENDS.
25 FEET +/- 2"
S-Video Cable 2457-08409-001
3.35"
4
2
P3 P4
P1 P2
WIRING DIAGRAM
L. SIMPSON
MINI-DIN MALE 4 POS. ( x2 )
P3 P4
P1
CABLE, S-VIDEO, MINI-DIN4 PLUG TO
072098 MINI-DIN4 PLUG YELLOW 25 FEET
Appendix - 5
Appendix
P2
