Installer Programming

Wired Sensor Programming

Wired Sensor Programming Outline

The Control Panel can be programmed with up to two wired
sensors. The wired sensors are hardwired contact loops connected
to the loop input terminals on the Control Panel's terminal strip.
✓ NOTE: WIRED SENSORS CANNOT BE USED FOR A
CO OR FIRE SENSOR LOOP!!!
Programming the wired sensors into the Control Panel involves
selecting the sensor number (1 or 2), selecting the wired sensor
type, setting the equipment code, loop type (open, closed, or
end-of-line resistor), and selecting the other options for the
sensor.
• Wired sensors #1 & #2 report as system sensors #49 & #50
WIRED SENSOR REPORTING CODES
Wired sensor #1
Wired sensor #2
Refer to Figure 52 for an outline of the steps required to program
wired sensors into the Control Panel. The options that can be set
for each wired sensor are:
• Wired Sensor Number — Sensor number 1 or 2
• Wired Sensor Type — Exit/entry, perimeter, interior, etc.
• Wired Sensor Equipment Type — Certain
sensor types will ask for equipment type
• Wired Sensor Equipment Code — 4-digit
equipment code that matches installed sensor
• Wired Sensor Equipment Age —
New install or existing sensor
• Wired Sensor Normal State — normally
open, closed, or end-of-line resistor loop
• Wired Sensor Dialer Delay — Delayed or
instant communicator reports for the sensor
(delay time is set by dialer abort window)
• Wired Sensor Voice Descriptor — Name
assigned to the sensor
• Wired Sensor Reports — Communicator reports
or no communicator reports for the sensor
• Wired Sensor Chime — Select voice announcement
and chime options for the sensor

Wired Sensor Summary Screen

After setting all the options for a sensor, the wired sensor
summary screen is displayed. The screen can also be displayed
for programmed sensors during wired sensor program editing by
pressing the SUM button.
• The ← and → arrow buttons step through the wired sensor numbers.
• The EDIT CURRENT and EDIT NEXT buttons return to sensor
programming.
• Pressing SKIP goes to question Q-3 (key fob programming).

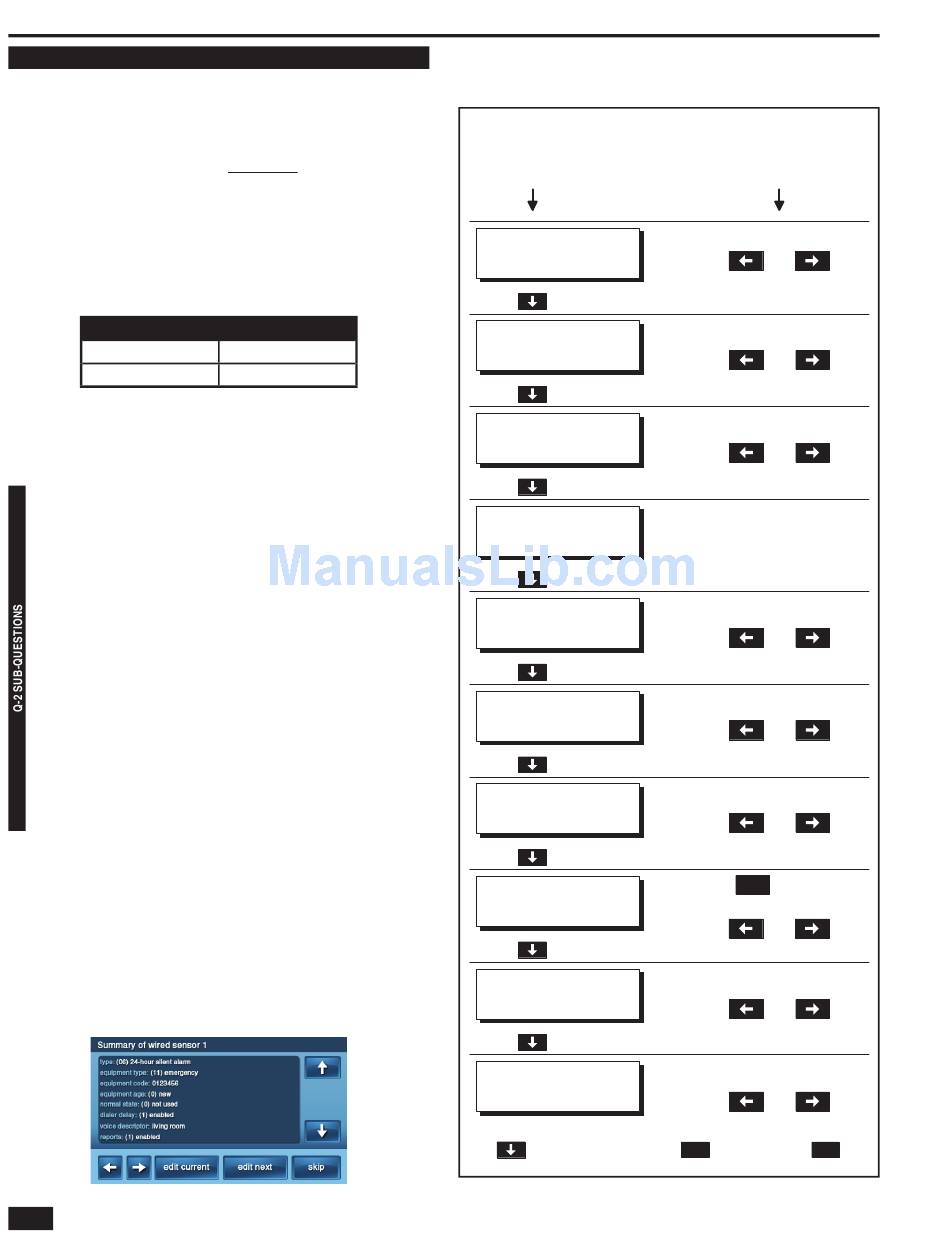

Figure 51. Wired Sensor Summary Screen
24
Reports as sensor #49
Reports as sensor #50
WIRED SENSOR PROGRAMMING (Q-2) OUTLINE
STEP DOWN
THROUGH OPTIONS
SELECT WIRED SENSOR #
PRESS FOR NEXT OPTION
SELECT WIRED
SENSOR TYPE
PRESS FOR NEXT OPTION
SELECT WIRED SENSOR
EQUIPMENT TYPE
(ONLY FOR SOME SENSOR TYPES)
PRESS FOR NEXT OPTION
ENTER WIRED SENSOR
EQUIPMENT CODE
PRESS FOR NEXT OPTION
SELECT WIRED SENSOR
EQUIPMENT AGE
PRESS FOR NEXT OPTION
SELECT WIRED SENSOR
NORMAL STATE
PRESS FOR NEXT OPTION
SELECT WIRED SENSOR
DIALER DELAY
PRESS FOR NEXT OPTION
CONSTRUCT WIRED SENSOR
VOICE DESCRIPTOR
PRESS FOR NEXT OPTION
SELECT WIRED SENSOR
REPORTS
PRESS FOR NEXT OPTION
SELECT WIRED SENSOR
CHIME
PRESS TO FINISH FOR THIS SENSOR, THEN
Figure 52. Wired Sensor Programming Outline
SELECT OPTION WITH
THESE KEYS
ENTER ON KEYPAD OR PRESS
OR
TO SELECT FROM LIST
OR PRESS SKIP TO JUMP TO Q-3
ENTER ON KEYPAD OR PRESS
OR
TO SELECT FROM LIST
ENTER ON KEYPAD OR PRESS
OR
TO SELECT FROM LIST
ENTER ON KEYPAD
ENTER ON KEYPAD OR PRESS
OR
TO SELECT FROM LIST
ENTER ON KEYPAD OR PRESS
OR
TO SELECT FROM LIST
ENTER ON KEYPAD OR PRESS
OR
TO SELECT FROM LIST
PRESS insert FOR EACH WORD
ENTER ON KEYPAD OR PRESS
OR
TO SELECT FROM LIST
ENTER ON KEYPAD OR PRESS
OR
TO SELECT FROM LIST
ENTER ON KEYPAD OR PRESS
OR
TO SELECT FROM LIST
edit
FOR NEXT SENSOR, OR FOR Q3
skip
next
