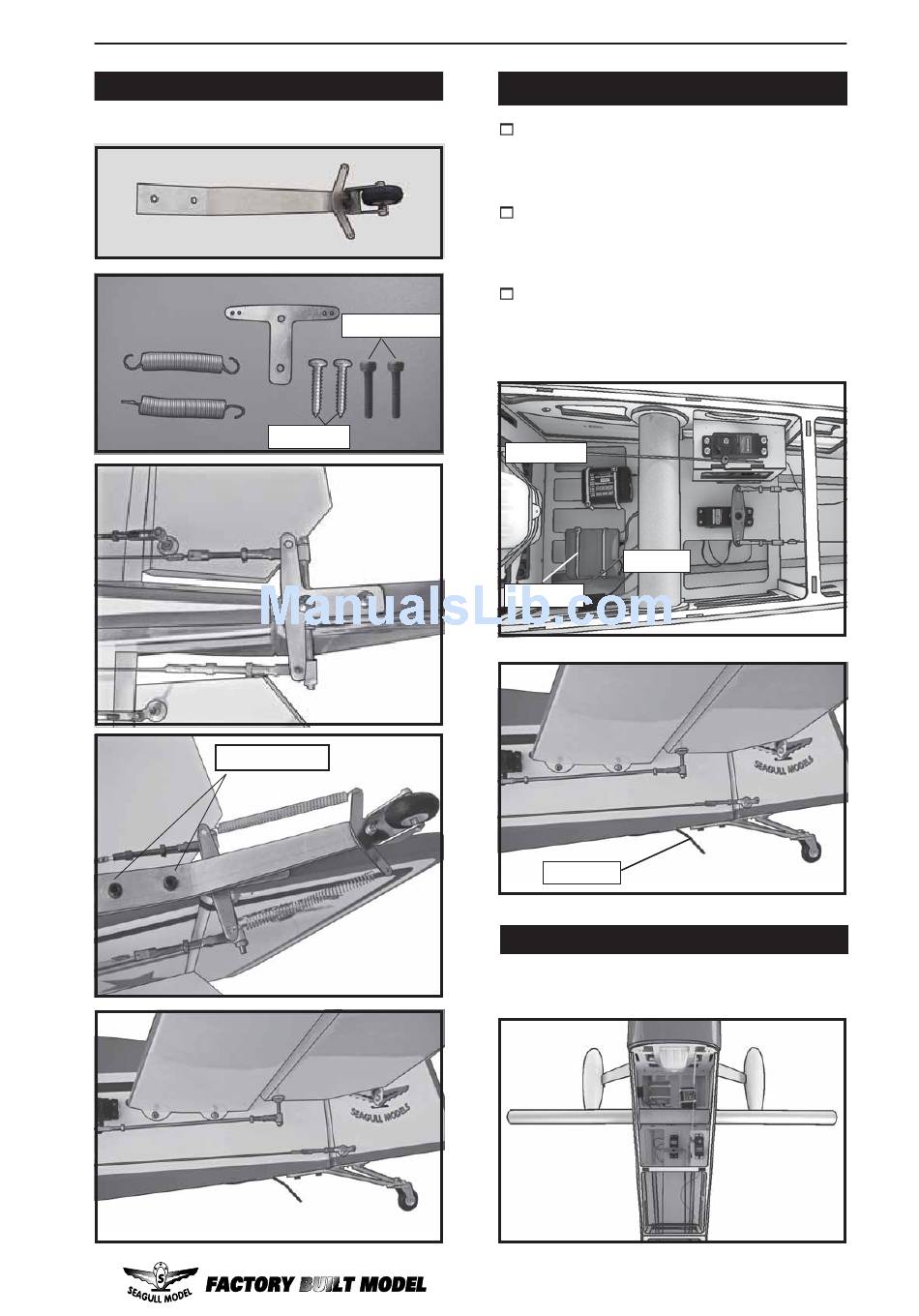

Mounting The Tail Wheel - Seagull Models Extra 260 Assembly Manual

www.seagullmodels.com

MOUNTING THE TAIL WHEEL.

INSTALLING THE BATTERY-RECEIVER.
See picture below
1) Plug the servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
2) Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
3) Route the antenna in the antenna tube
inside the fuselage and secure it to the bot-
M3 x20 mm.
tom of fuselage using a plastic tape. See pic-
ture below.
3x25mm.
Receiver.
Battery.
Tie wrap.
M3 x20 mm.
Antenna.
ATTACHMENT WING-FUSELAGE.
Attach the aluminium tube into fuselage.
17
