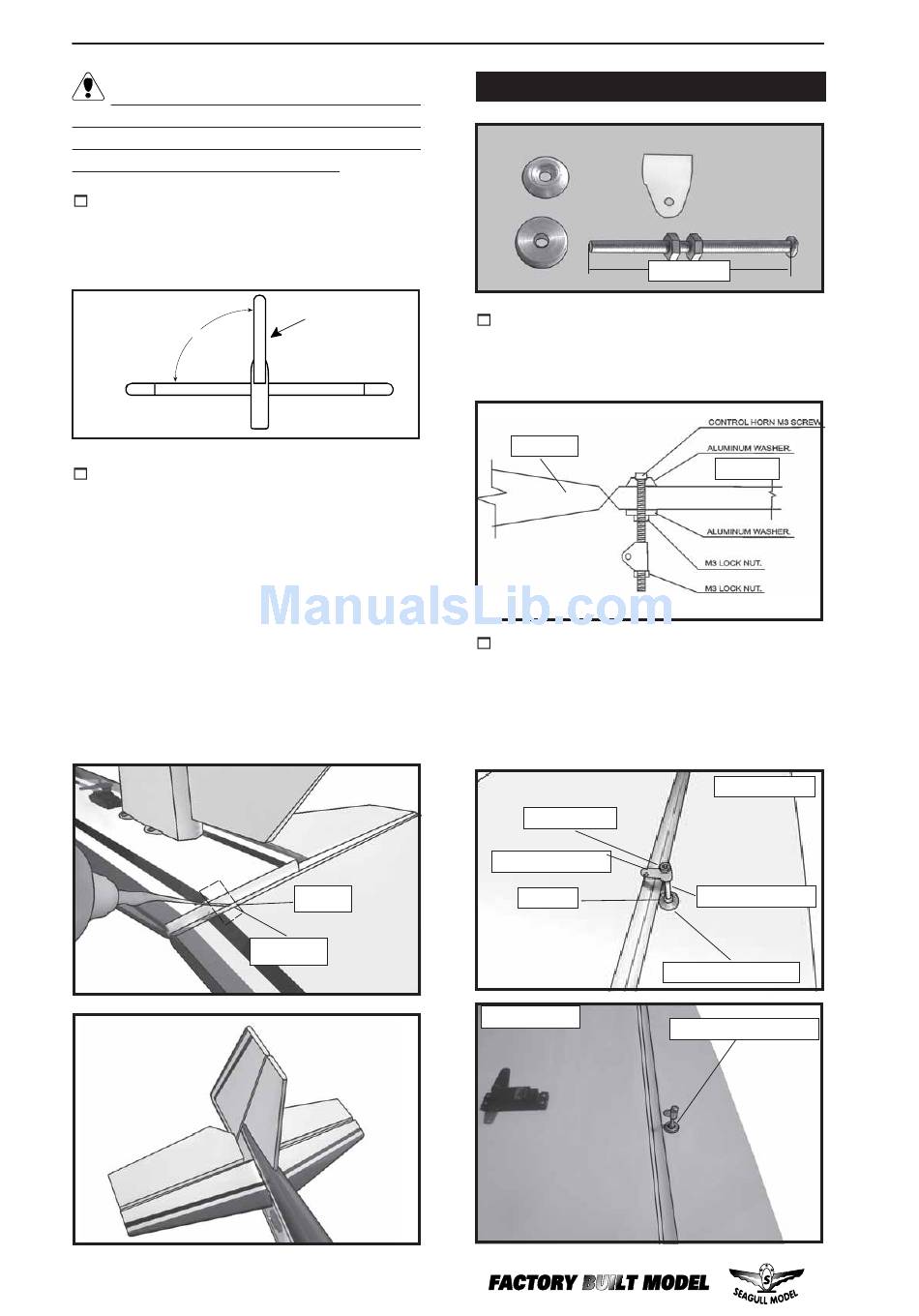

EXTRA 260.
When cutting through the covering to re-
move it, cut with only enough pressure to only
cut through the covering itself. Cutting into
the balsa structure may weaken it.
5) Slide the vertical stabilizer back in
place. Using a triangle, check to ensure that
the vertical stabilizer is aligned 90º to the hori-
zontal stabilizer.
Horizontal 90º
Stabilizer.
6) When you are sure that everything is
aligned correctly, mix up a generous amount of
30 Minute Epoxy. Apply a thin layer to the mount-
ing slot in the top of the fuselage and to the sides
and bottom of the vertical stabilizer mounting
area. Apply epoxy to the bottom and top edges
of the filler block and to the lower hinge also.
Set the stabilizer in place and realign. Double
check all of your measurements once more be-
fore the epoxy cures. Hold the stabilizer in place
with T-pins or masking tape and remove any
excess epoxy using a paper towel and rubbing
alcohol. Allow the epoxy to fully cure before
proceeding.
14
Vertical
Stabilizer.
Hinge
C/A glue.
Instruction Manual.
AILERON CONTROL HORN INSTALLATION.
1) Aileron control horn:
Mix a small amount of 30 minute epoxy and
lightly coat the inside of the hole in the aileron
and the 3x45mm control horn screw.
Wing.
2) Thread the screw (insert the washer)
into the hole from the top of surface. Wipe away
any excess epoxy on the wing and screw with
rubbing alcohol and a paper towel. Screw the
M3 nut (insert the washer) in place as shown.
Alllow the epoxy to fully cure.
M3 lock nut.
Control horn.
M3 nut.
Wing bottom.
3x45mm.
Aileron.
Wing bottom.
M3 control horn.
Aluminium washer.
Aileron control horn.
