5.3.6. Serial Port

This page can be used to manage your serial ports. They can be used for various purposes
on the system. When set to none it will be disabled, when set to login console you
would be able to get a login shell when connecting to the serial port (115200 8N1). You
may also mark them as reserved for SDK scripts.
Furtheron, a device server can be run for each port which can be used to control the
serial device via IP.
It can be configured as follows:
Physical protocol: Selects the desired physical protocol on the serial port
Baud rate: Specifies the baud rate run on the serial port
Data bits: Specifies the number of data bits contained in each frame
Parity: Specifies the parity used for every frame that is transmitted or received
Stop bits: Specifies the number of stop bits used to indicate the end of a frame
Software flow control: Defines the software flow control for the serial port, XOFF will
send a stop, XON a start character to the other end to control the rate of any
incoming data
Hardware flow control: You may enable RTS/CTS hardware flow control, so that the
NB2700 User Manual

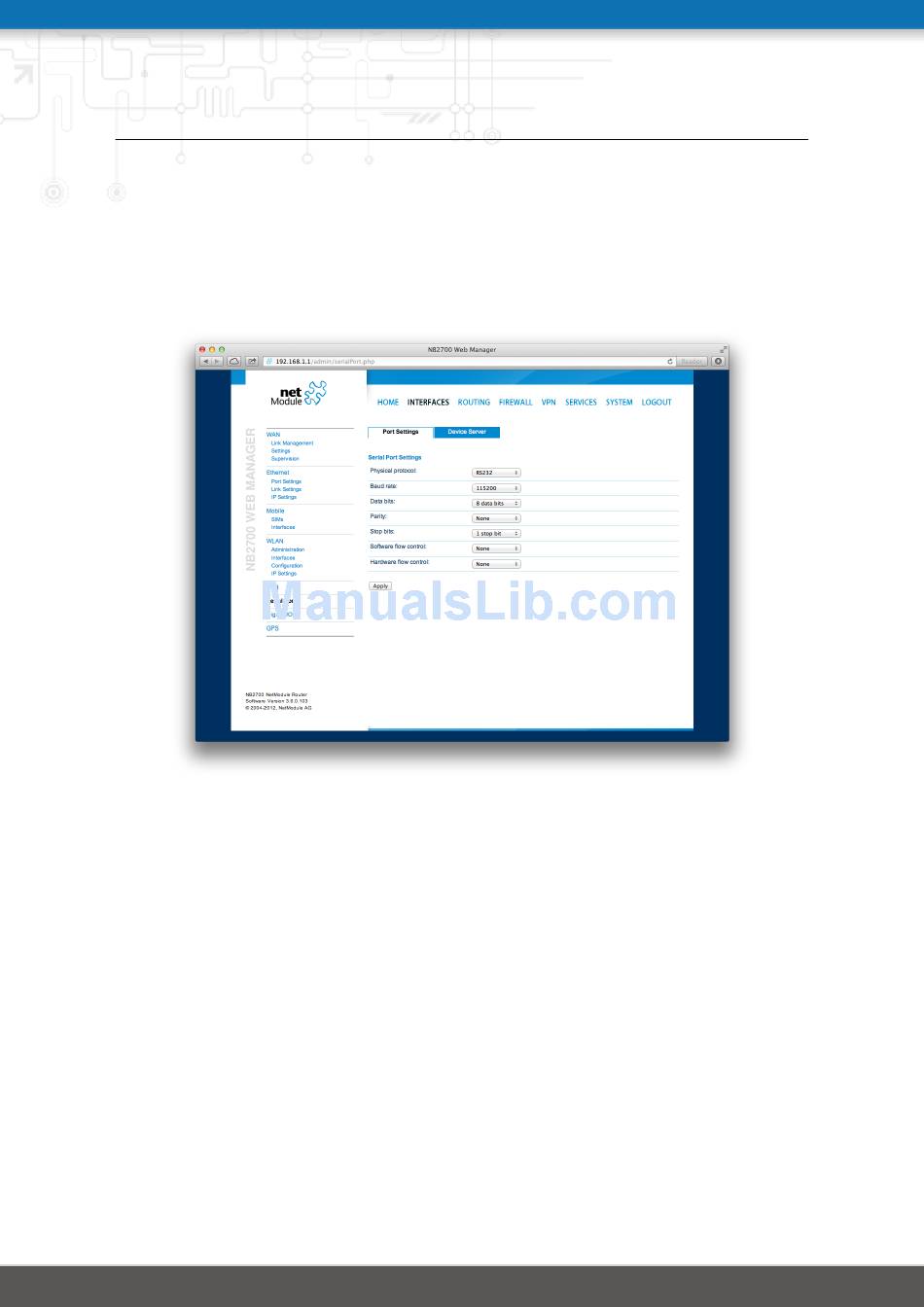

Figure 5.16.: Serial Port
