in the network. You may also define static values but caution has to be taken to assign
an unique IP address as it would otherwise raise IP conflicts in the network.
PPPoE is commonly used when communicating with another WAN access device (like
a DSL modem). The following settings can be applied:
User name: PPPoE user name for authenticating at the access device
Password: PPPoE password for authenticating at the access device
Service name: Specifies the service name set of the access concentrator and can be left
blank unless you have multiple services on the same physical network and need to
specify the one you want to connect to
Access concentrator name: The name of the concentrator (the PPPoE client will con-
nect to any access concentrator if left blank)
NB2700 User Manual

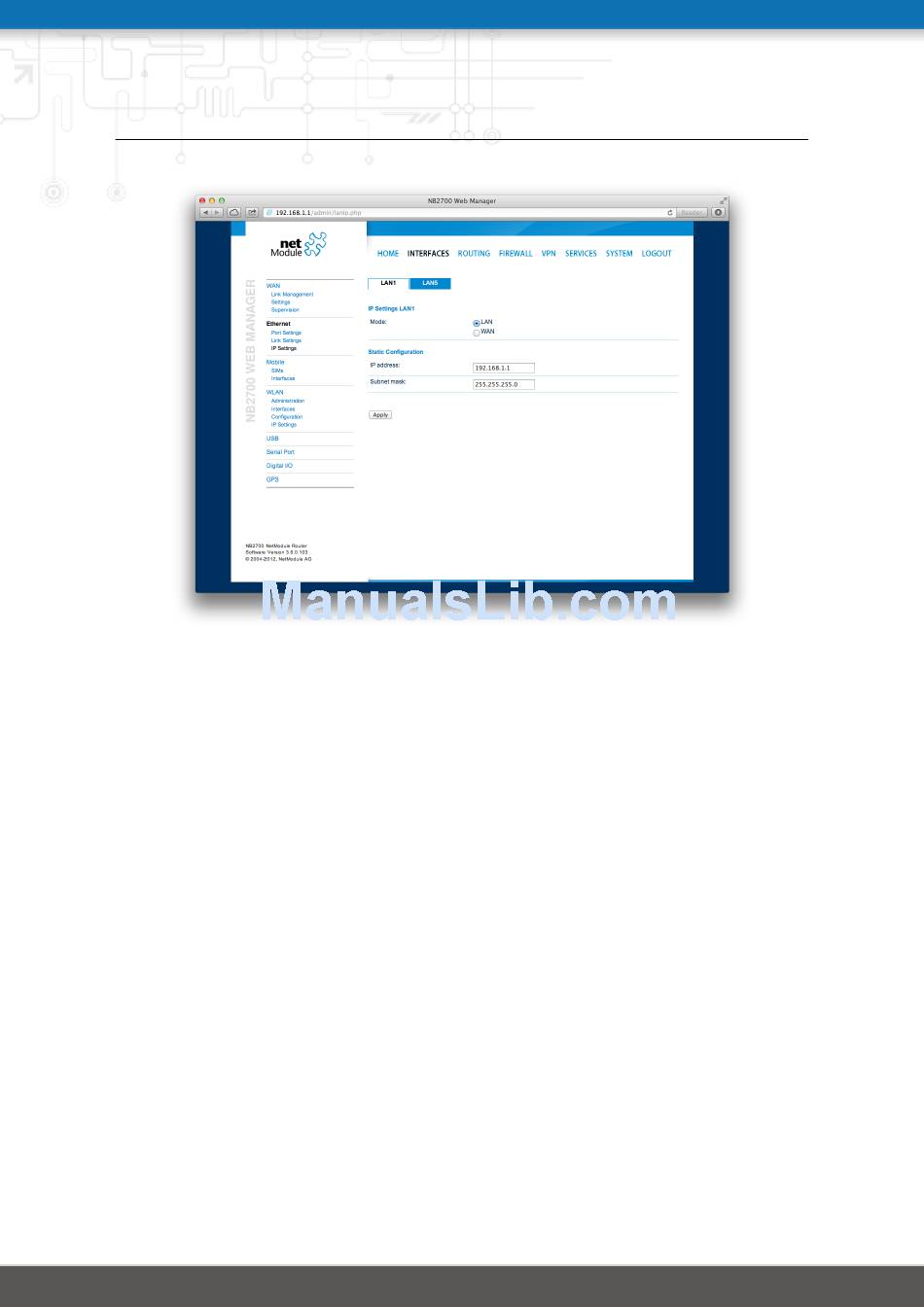

Figure 5.7.: LAN IP Configuration
32
