2.3 Connecting the V2 Paging Server

Before you connect the V2 Paging Server, be sure that you have received all of the parts described in
Section 2.1, "Parts

2.3.1 Connect to the Power Source

To use PoE, plug a Cat 5 Ethernet cable from the V2 Paging Server Ethernet port to your network.
As an alternative to PoE, you can plug one end of a +48V DC power supply into the Paging Server,
and plug the other end into a receptacle. If required, connect the earth grounding wire to the chassis
ground on the back of the unit.

2.3.2 Connect to the Network

Plug one end of a standard Ethernet cable into the Paging Server Ethernet port. Plug the other end
into your network.
CyberData Corporation
List".

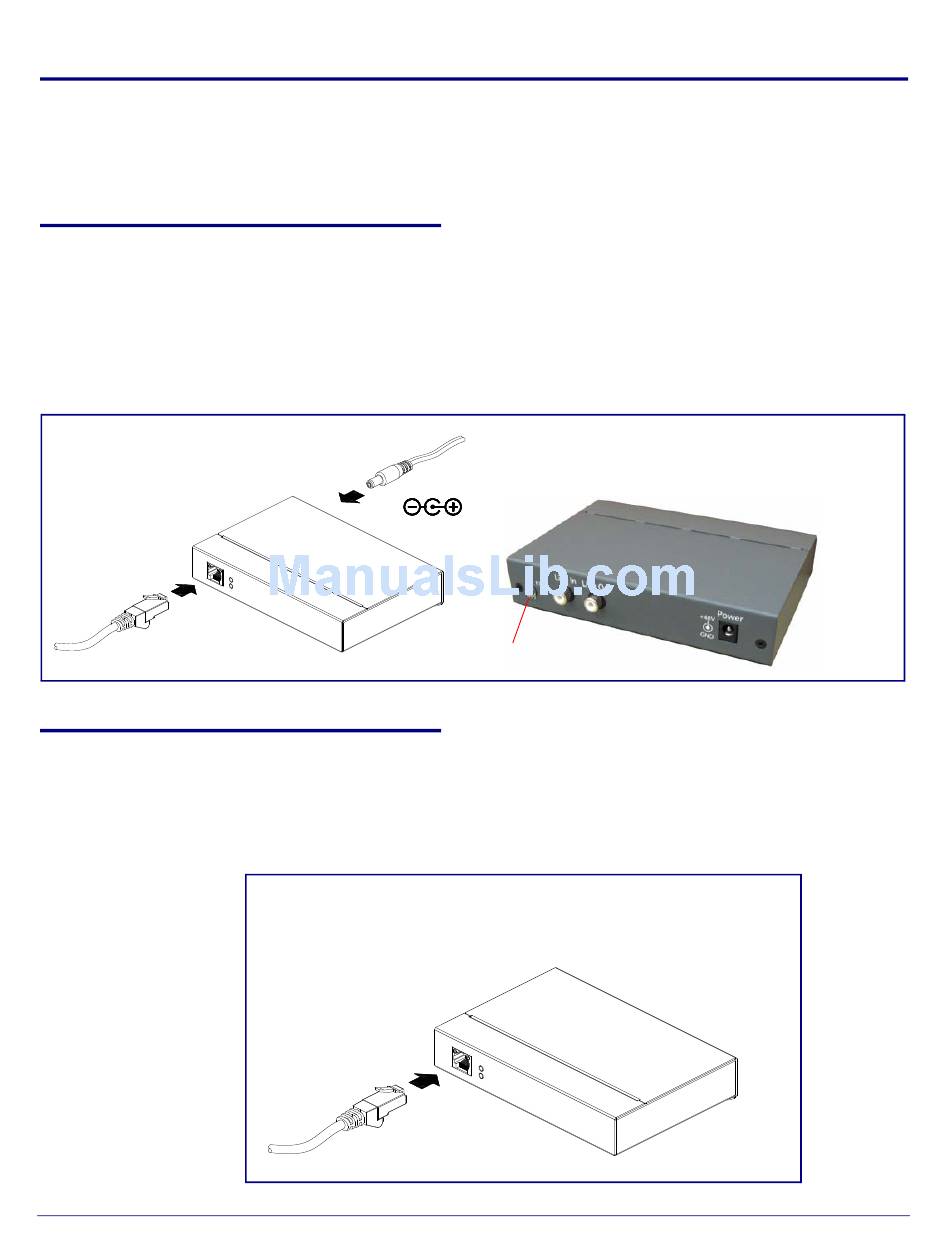

Figure 2-3. Connecting to the Power Source
48V DC
Chassis ground
Figure 2-4. Connecting to the Network
