1.0 Out-of-Box and Prior to Final Installation

1.1. Verify that you have received all of the parts listed on the Installation Quick

Reference placemat.

1.2. Download the current manual, otherwise known as an Operation Guide,

which is available on the Documentation page at the following website

address:

http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2/docs.html

Note

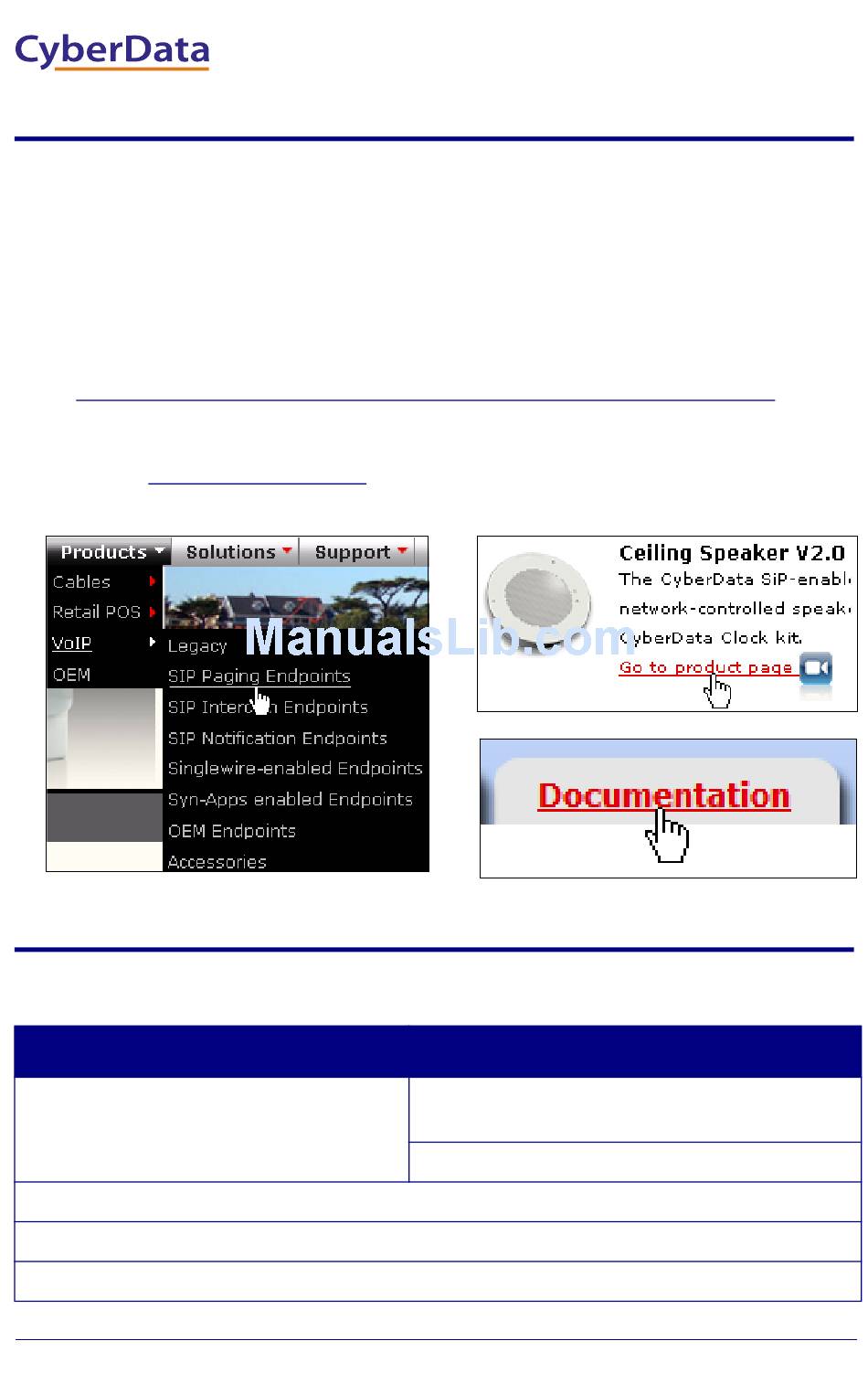

You can also navigate to the Documentation page by going to

www.CyberData.net

the following figures:

PoE Switch

Set PoE power type to Class 0 = 15.4W

Spanning Tree Protocol (STP) must be disabled or Portfast enabled

Quick Start Guide

VoIP V2 Ceiling Speaker

Quick Start Guide

and following the steps that are indicated by

Make sure port is not in trunk mode

Set port to full duplex/ 100mbps

PoE Injector

CAT6 cable recommended—

for longer distances

Be sure you are using a non-PoE switch or port

930398E

Table of Contents

Do you have a question about the VoIP V2 and is the answer not in the manual?

Page 1 VoIP V2 Ceiling Speaker The IP Endpoint Company Quick Start Guide 1.0 Out-of-Box and Prior to Final Installation 1.1. Verify that you have received all of the parts listed on the Installation Quick Reference placemat. 1.2. Download the current manual, otherwise known as an Operation Guide,...
Page 2 3.0 Power Test 3.1. Plug in the CyberData device and monitor the LED activity on the front of the device. See the following figure: Network Link/Activity (Yellow LED) Speaker Status (Green LED) 3.2. The GREEN power/status LED and the YELLOW network LED come on immediately.
Page 3 4.1. In a test environment, use a PC that is connected to the same switch as a single CyberData device. Note the subnet of the test PC. 4.2. Use the CyberData Discovery Utility program to locate the device on the network. You can download the Discovery Utility program from the following website address: http://www.cyberdata.net/support/voip/discovery_utility.html...
Page 4 The Support form initiates a ticket which CyberData uses for tracking customer requests. Most importantly, the Support form tells us which PBX system and software version that you are using, the make and model of the switch, and other important information.
