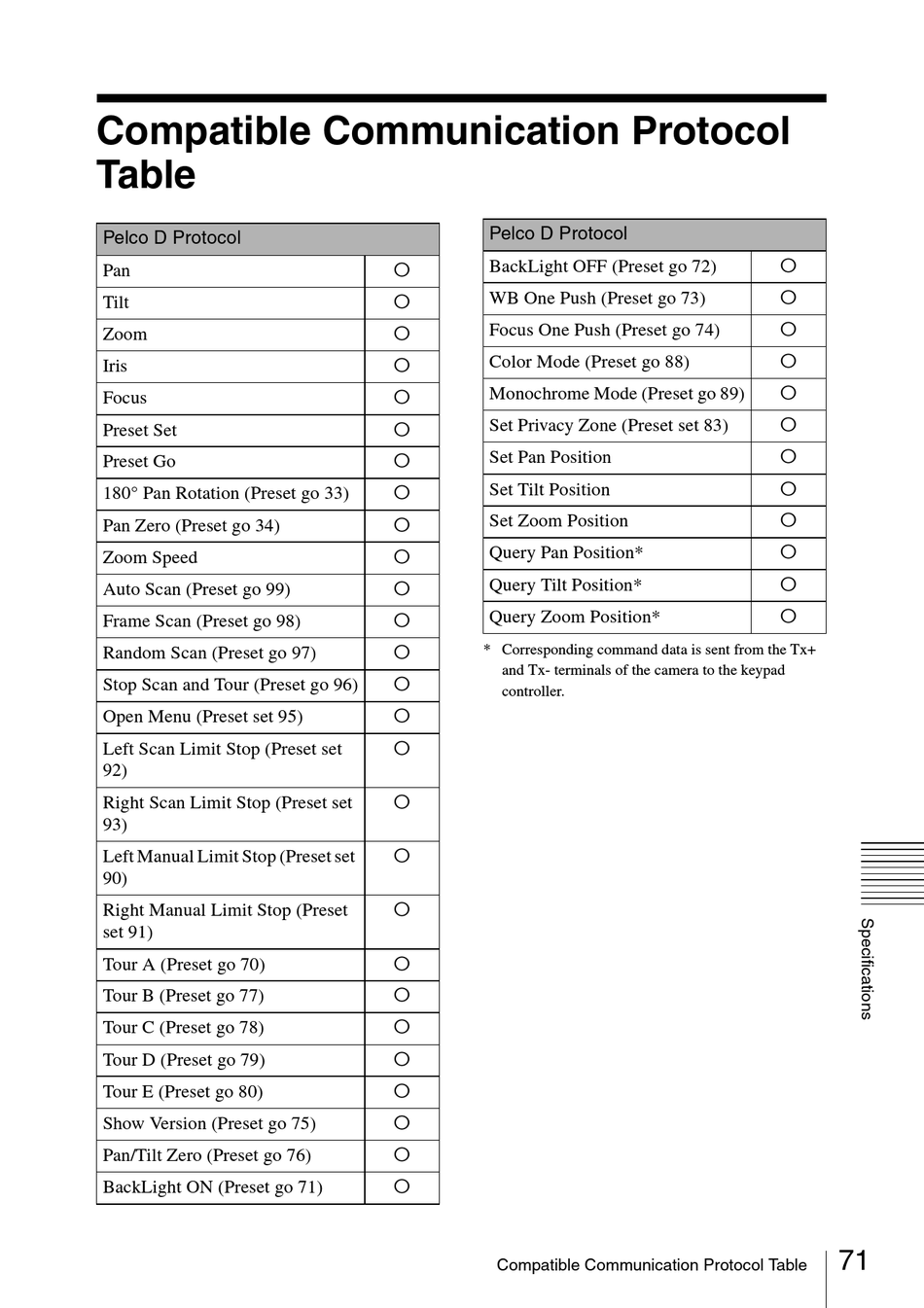

Compatible Communication Protocol
Table
Pelco D Protocol
Pan
Tilt
Zoom
Iris
Focus
Preset Set
Preset Go
180° Pan Rotation (Preset go 33)
Pan Zero (Preset go 34)
Zoom Speed
Auto Scan (Preset go 99)
Frame Scan (Preset go 98)
Random Scan (Preset go 97)
Stop Scan and Tour (Preset go 96)
Open Menu (Preset set 95)
Left Scan Limit Stop (Preset set
92)
Right Scan Limit Stop (Preset set
93)
Left Manual Limit Stop (Preset set
90)
Right Manual Limit Stop (Preset
set 91)
Tour A (Preset go 70)
Tour B (Preset go 77)
Tour C (Preset go 78)
Tour D (Preset go 79)
Tour E (Preset go 80)
Show Version (Preset go 75)
Pan/Tilt Zero (Preset go 76)
BackLight ON (Preset go 71)
Pelco D Protocol
BackLight OFF (Preset go 72)
a
WB One Push (Preset go 73)
a
Focus One Push (Preset go 74)
a
Color Mode (Preset go 88)
a
Monochrome Mode (Preset go 89)
a
Set Privacy Zone (Preset set 83)
a
Set Pan Position
a
Set Tilt Position
a
Set Zoom Position
a
Query Pan Position*
a
Query Tilt Position*
a
Query Zoom Position*
a
* Corresponding command data is sent from the Tx+
a
and Tx- terminals of the camera to the keypad
a
controller.
