HP Integral Personal Computer Service Manual page 70

Leave the ac line filter connected to the power supply peA unless you must replace the line filter or
the
power
supply PCA. H you must disconnect the line filter, remove its leads &om ConnectOIS
Jl
and
12
on
the
power
s~pply
PCA
(see
figure 6-31a).
R ....... ty Not •• : Make sure the transparent plastic sheet is positioned properly relative to the
saew holes in the bottom of the power-supply assembly.
-- ..
Do not reverse the brown and blue line-filter leads when replacing the line filter. They must be
connected
as
shown in figure 6-31a. If these leads
are
reversed, there will be no fuse protection.
If the plastic coating on the
two
large capadtoIS (C4 and C5) is saatched, replace the capacitors.
Otherwise a shock hazard will result.
Note that the mounting screw next to the large capacitor (C4) has no star washer. This prevents possi-
ble damage to the coating on C4. Make sure that you use the washerless screw here when reinstalling
the power supply.
CAunON
Make sure that
you
do not interchange the power-cable connectors to the logic A and logic B
PCAs. The logic B power-cabJe connector is the one from which the disc-drive extension cable
extends (see
figure
6-32), If you interchange the logic A and logic B power-cable connectors,
serious damage to the power supply or the logic PCAs will result.

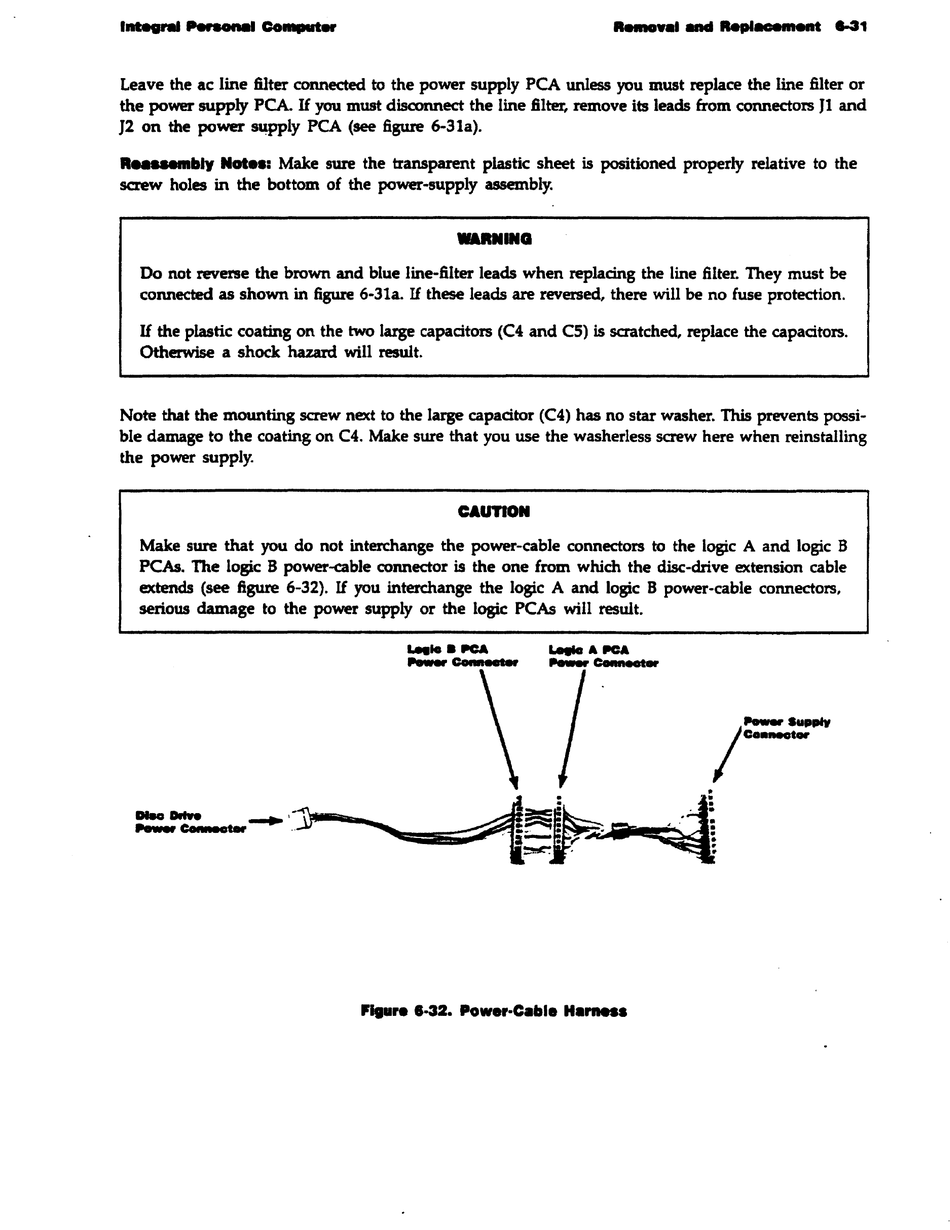

'''are
1·32.
Power-Cable H .......
