13. Disengage the bottom of the bezel from the display.
14. Remove the panel spring from the display assembly and transfer it to the new assembly .
.......... bIy
Notea: To install the display assembly, follow these steps:
1. Insert the bottom edge of the display into the display bezel so the four clips on the bottom of the
frame engage the bezel. Then press on the top of the display bezel until it snaps into place with
the four tabs on
the
bezel holding the display.

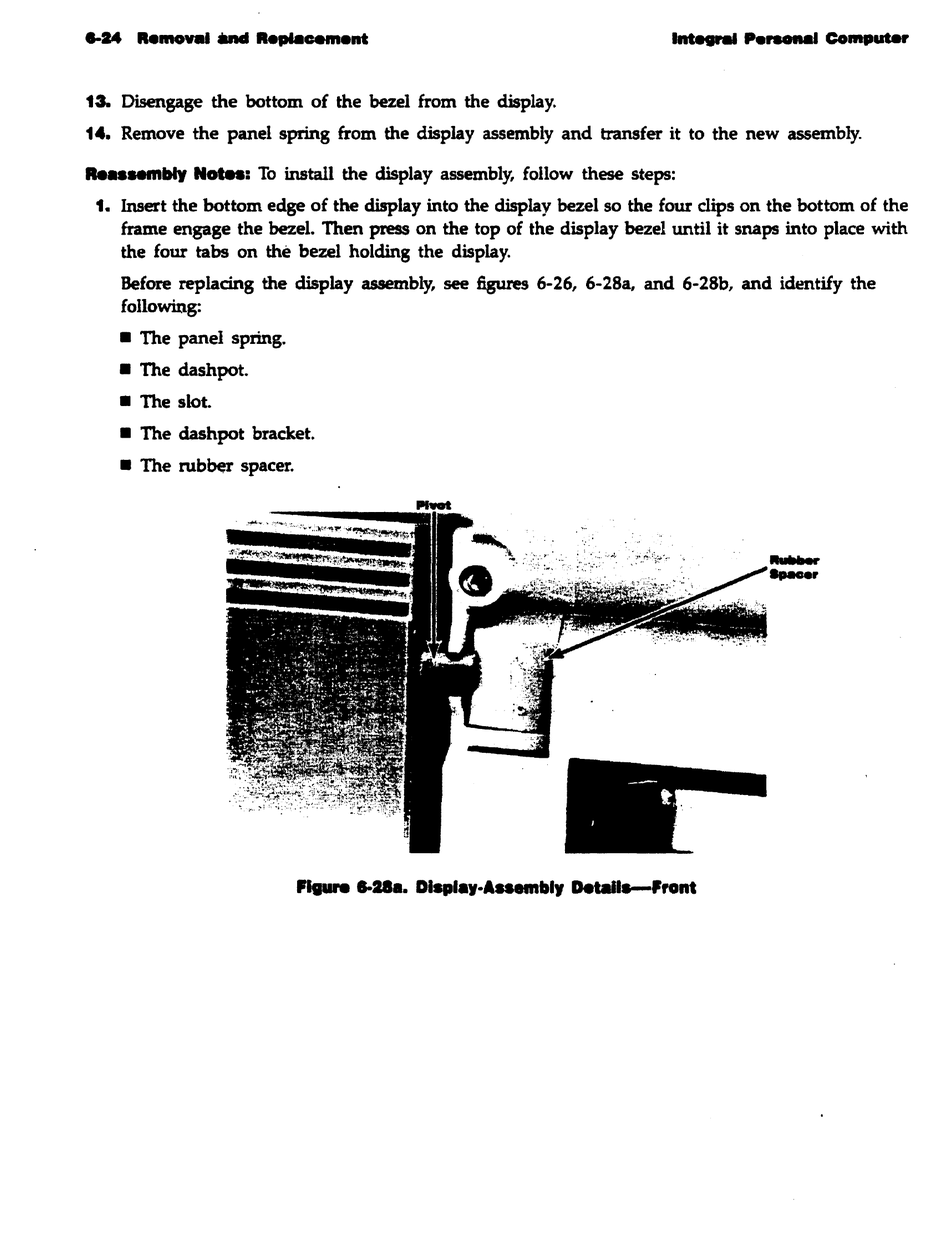

Before replacing the display assembly, see figures 6-26, 6-28a, and 6-28b, and identify the
following:
• The panel spring.
• The dashpot.
• The slot.
• The dashpot bracket.
• The
rub~
spacer.
'-.-_ _ _ _ _ Phfot
