.. 20 ...........
ncI .....
I_ement
3.

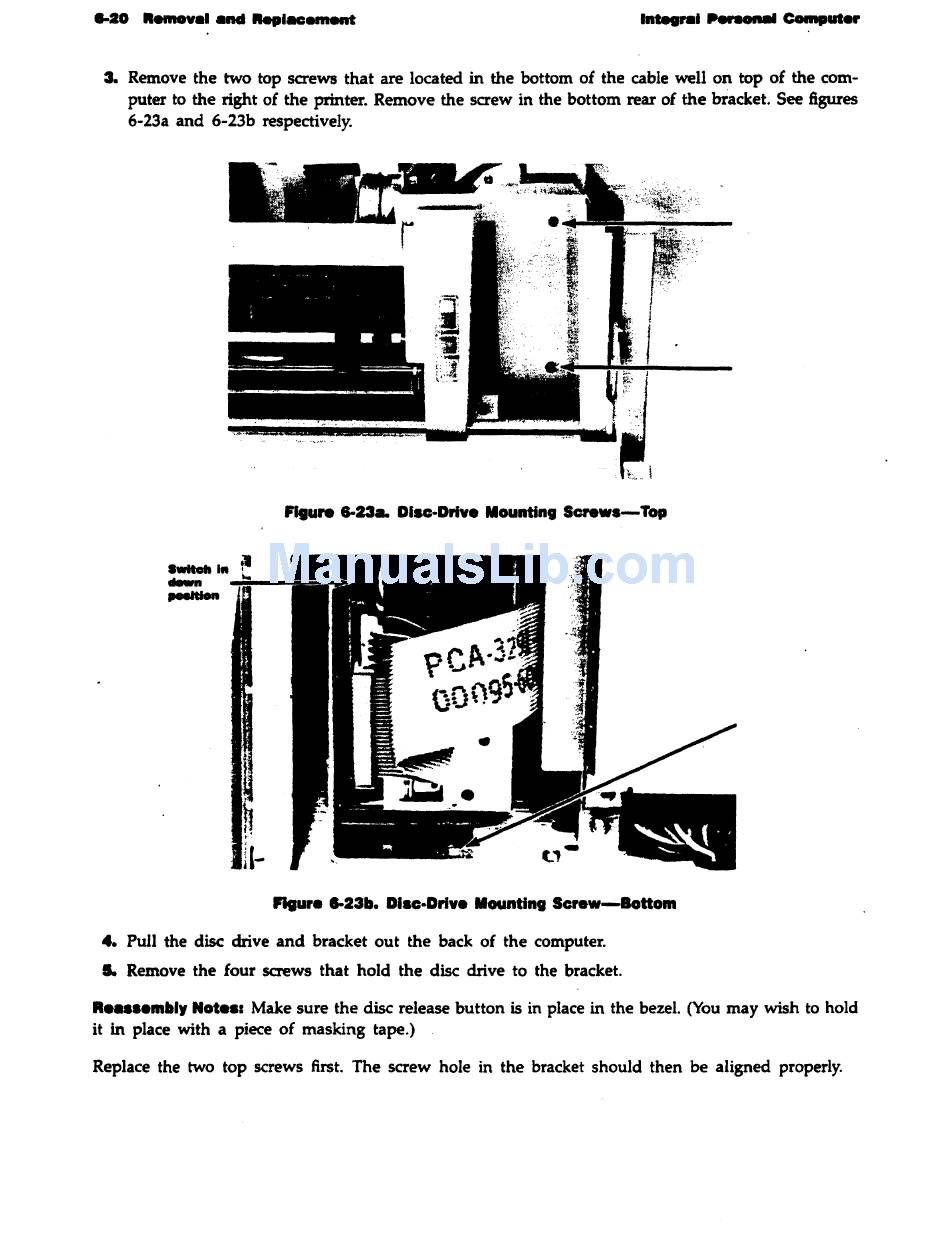

Remove the two top screws that are located
in
the bottom of the cable well on top of the com-
puter to the
right
of the printer. Remove the screw in the bottom rear of the blacket. See figures
6-23a and 6-23b respectively.
FIgure 8-23& Disc-Drive Mounting Screws-Top
.wItoIIl •
.....
~----
........ n
FIgure 1-23 ... Disc-Drive llounting Screw-Bottom
4. Pull the disc drive and bracket out the back of the computer.
L Remove the four saews that hold the disc drive to the bracket.
R .......... , Not.s. Make sure the disc release button
is
in place
in
the bezel. (You may wish to hold
it
in
place with a piece of masking tape.)
Replace the two top screws first. The screw hole in the bracket should then be aligned properly.
