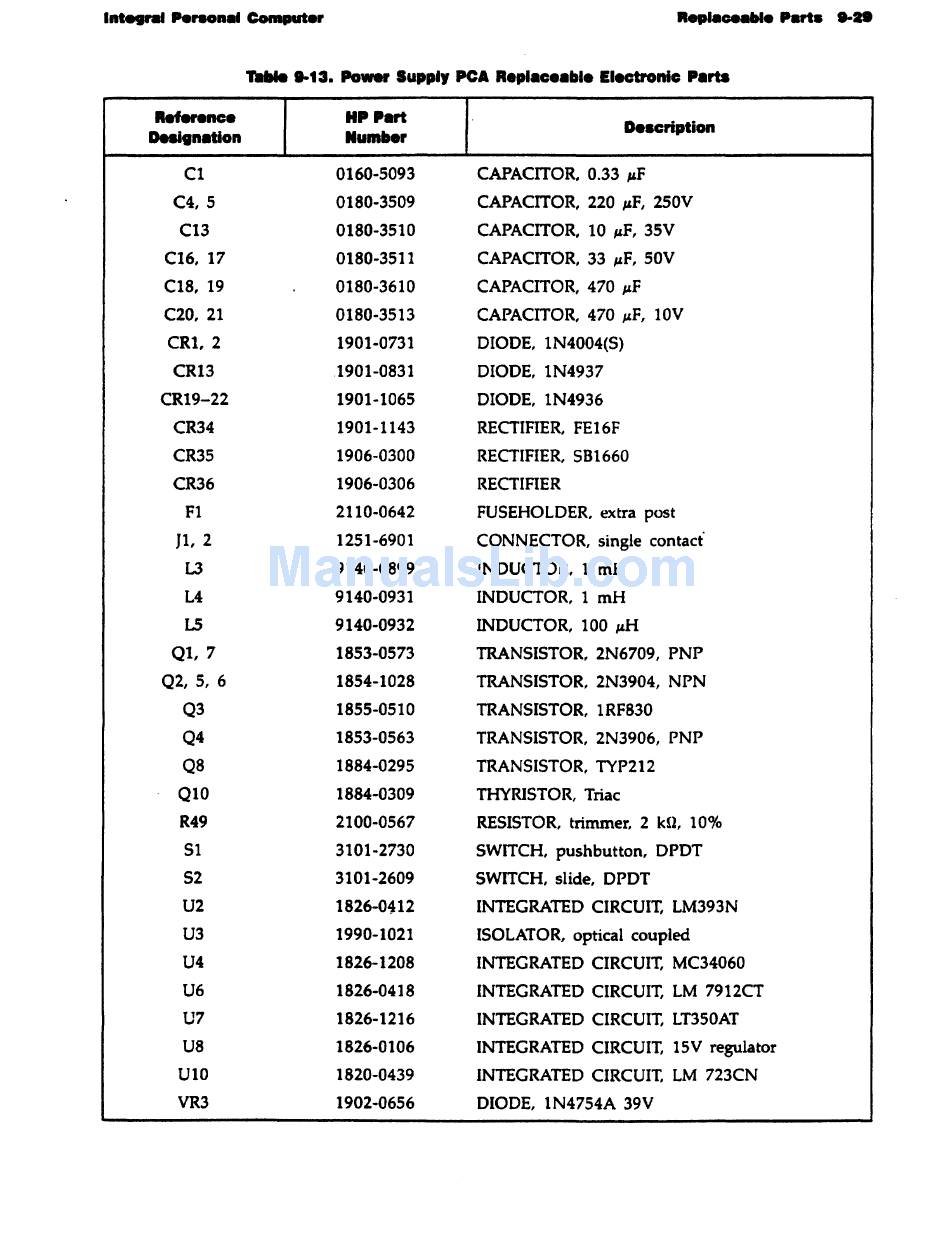

HP Integral Personal Computer Service Manual page 176

Int ...... Penon •• Computer R ........... Part. .. ••
TallIe
"t3.
Power
Suppl, PeA Replaceabl. Ilectronic Parts
Reference
HP Part
D.scription
Dealgnation
Numb.r
Cl 0160-5093 CAPACITOR. 0.33 p.F
C4,5 0180-3509 CAPACITOR, 220 p.F, 2S0V
Cl3 0180-3510
CAPACITOR, 10 p.F, 35V
C16, 17
0180-3511
CAPACITOR, 33 p.F, SOV
C18, 19 0180-3610 CAPACITOR, 470 p.F
C20, 21 0180-3513 CAPACITOR, 470 p.F, 10V
CR1,2 1901-0731 DIODE, IN4004(S)
CR13 .1901-0831 DIODE, IN4937
CR19-22 1901-1065
DIODE, 1N4936
CR34
1901-1143
RECTIFIER, FE16F
CR35 1906-0300 RECTIFIER, 581660
CR36 1906-0306 RECTIFIER
Fl 2110-0642 FUSEHOLDER, extra post
11,
2
1251-6901
CONNECTOR, single contact"
L3 9140-0899 INDUCTOR, 1 mH
L4 9140-0931 INDUCTOR, 1 mH
L5 9140-0932
INDUCTOR, 100 I'H
Ql,7
1853-0573
TRANSISTOR, 2N6709, PNP
Q2, 5, 6
1854-1028
TRANSISTOR, 2N3904, NPN
Q3 1855-0510
TRANSISTOR, 1 RF830
Q4
1853-0563 TRANSISTOR, 2N3906, PNP
Q8
1884-0295 TRANSISTOR, TYP212
QI0 1884-0309 THYRISTOR, Triac
R49 2100-0567 RESISTOR, trimmer, 2 kll, 100/0
51 3101-2730 SWITCH, pushbutton, DPDT
S2 3101-2609 SWITCH, slide, DPDT
U2 1826-0412 INTEGRATED CIRCUIT, LM393N
U3 1990-1021
ISOLATOR, optical coupled
U4 1826-1208
INTEGRATED CIRCUIT, MC34060
U6 1826-0418
INTEGRATED CIRCUIT, LM 7912CT
U7 1826-1216
INTEGRATED CIRCUIT, LT350AT
U8
1826-0106 INTEGRATED CIRCUIT, 15 V regulator
UIO 1820-0439 INTEGRATED CIRCUIT, LM 723CN
VR3
1902-0656 DIODE, IN4754A 39V
