Bosch IUI-MAP0001 User Manual page 48

48 en | Operation

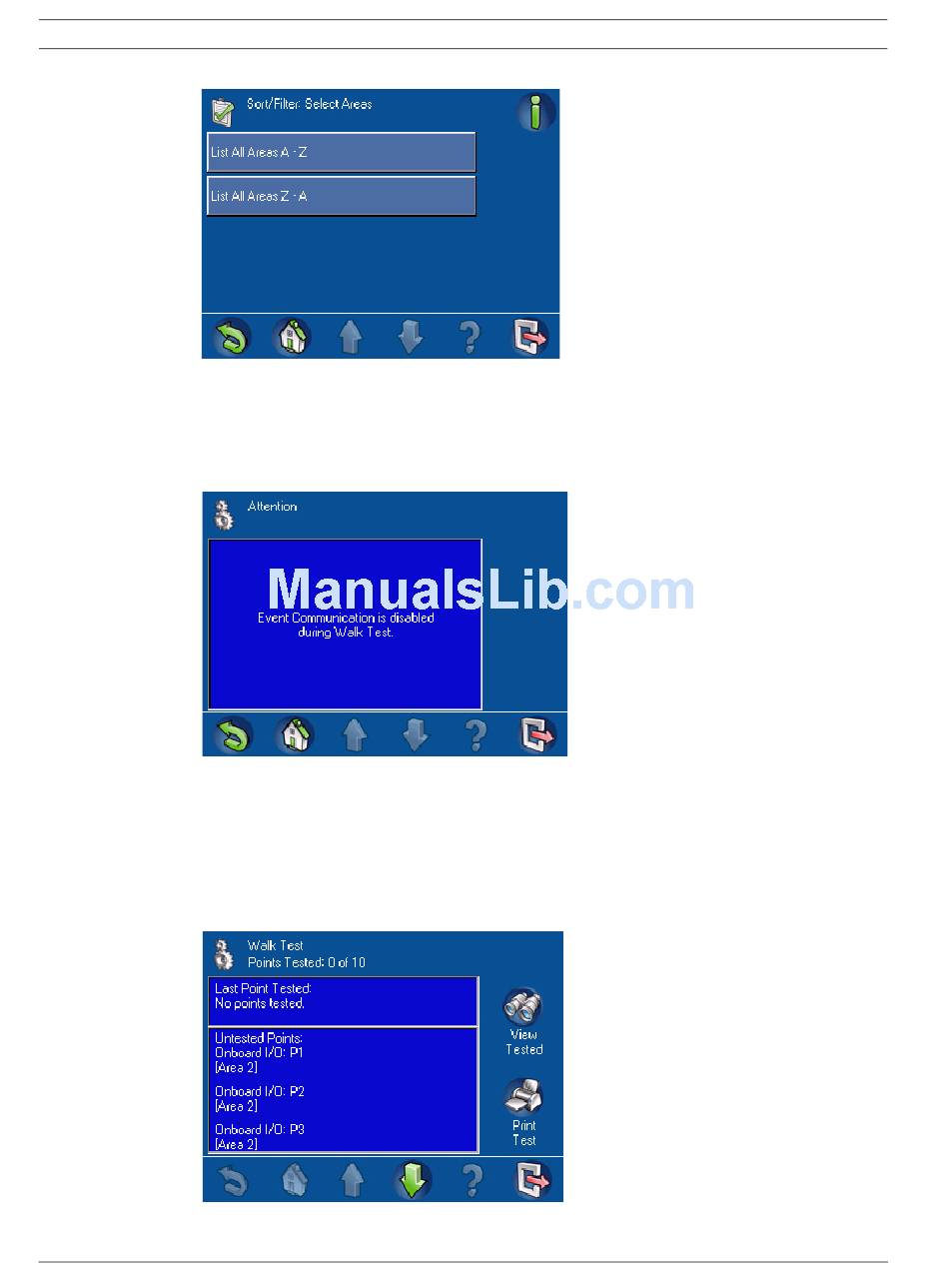

Figure 2.82 Sort/Filter Select Area screen
For more information on sorting and filtering, refer to Section 2.2 Searching and Sorting/
Filtering, page 11.
From the Select Areas screen (Figure 2.82, Page 48), if you press All Points, an Attention
screen opens (refer to Figure 2.83, Page 48).
Figure 2.83 Attention – Event Communication is disabled during Walk Test
Then the Walk Test Points Tested screen (Figure 2.84, Page 48) opens, showing the last point
tested and a list of untested points. From this screen, the user can select the View Tested
button or the Print Test button.
When the View Tested button is selected, a screen opens with a list of the points already
tested. The View Tested button is now View Untested. This allows the user to toggle between
tested and untested points.
Figure 2.84 Walk Test - Points Tested screen
F.01U.168.328 | 03 | 2011.05 User guide
MAP Control Center
Bosch Security Systems, Inc.
