34 en | Operation

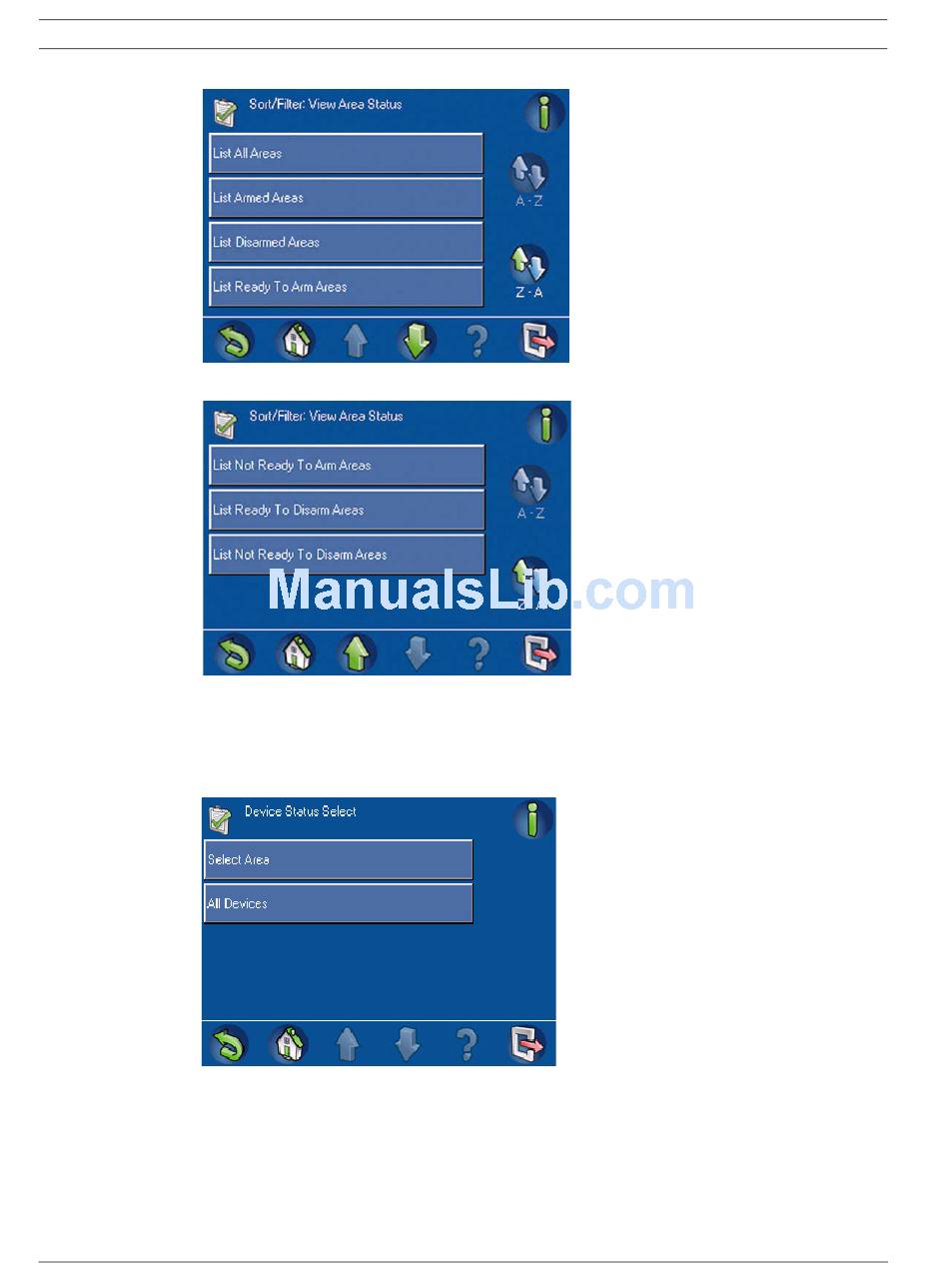

Figure 2.50 1. Sort/Filter View Area Status screen 1
Figure 2.51 2. Sort/Filter View Area Status screen 2
2.7.2

View Device Status

From the Status menu (Figure 2.45, Page 32), press View Device Status. The Device Status
Select screen (Figure 2.52, Page 34) opens.
Figure 2.52 Device Status Select screen
From the Device Status Select screen, press Select Area or All Devices.
–
F.01U.168.328 | 03 | 2011.05
If Select Area is pressed, the Select Area screen (Figure 2.53, Page 35) opens. Press the
button for an area. The View Device Status screen (Figure 2.54, Page 35) opens with a
list of the devices in the selected area.
User guide
MAP Control Center
Bosch Security Systems, Inc.
