S U G G E S T E D E N T R A P M E N T P R O T E C T I O N D E V I C E L O C A T I O N S
To prevent SERIOUS INJURY or DEATH from a moving gate:
• Entrapment protection devices MUST be installed to protect anyone who may come near a moving gate.
• Locate entrapment protection devices to protect in BOTH the open and close gate cycles.
• Locate entrapment protection devices to protect between moving gate and RIGID objects, such as posts or walls.

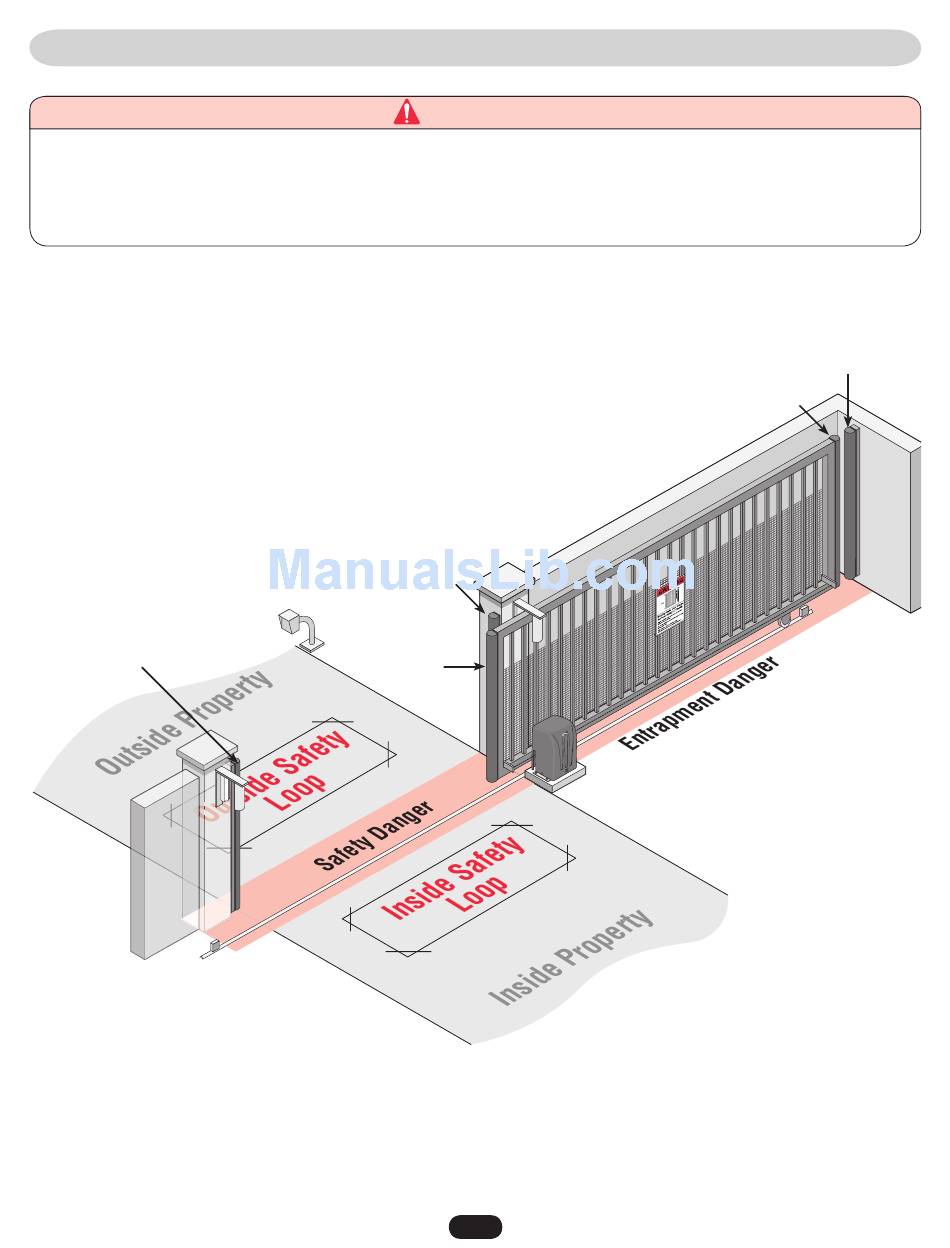

Install edge sensors to protect against any entrapment or
safety conditions encountered in your gate application.
See page 18.
Edge sensor for
close cycle on wall.
Safety loops allows the gate to stay open
when vehicles are obstructing the gate path.
Suggested for vehicles 14 feet or longer.
See pages 21 and 22.
Contact Sensors (Edge Sensors)
Edge sensor for open cycle on wall.
Edge sensor
for close cycle
on gate.
WARNING
Edge sensor for open cycle on gate.
5
Edge sensor for open cycle on wall.
Gate Rail Stops
For safety
reasons, physical
stops MUST be
installed on both
ends of the gate
rail prior to
installation of the
gate operator.
This will assure
that the gate does
not derail while
opening or
closing fully.
See page 7.
