S U G G E S T E D E N T R A P M E N T P R O T E C T I O N D E V I C E L O C A T I O N S
To prevent SERIOUS INJURY or DEATH from a moving gate:
• Entrapment protection devices MUST be installed to protect anyone who may come near a moving gate.
• Locate entrapment protection devices to protect in BOTH the open and close gate cycles.
• Locate entrapment protection devices to protect between moving gate and RIGID objects, such as posts or walls.
• A swinging gate shall NOT open into public access ways.

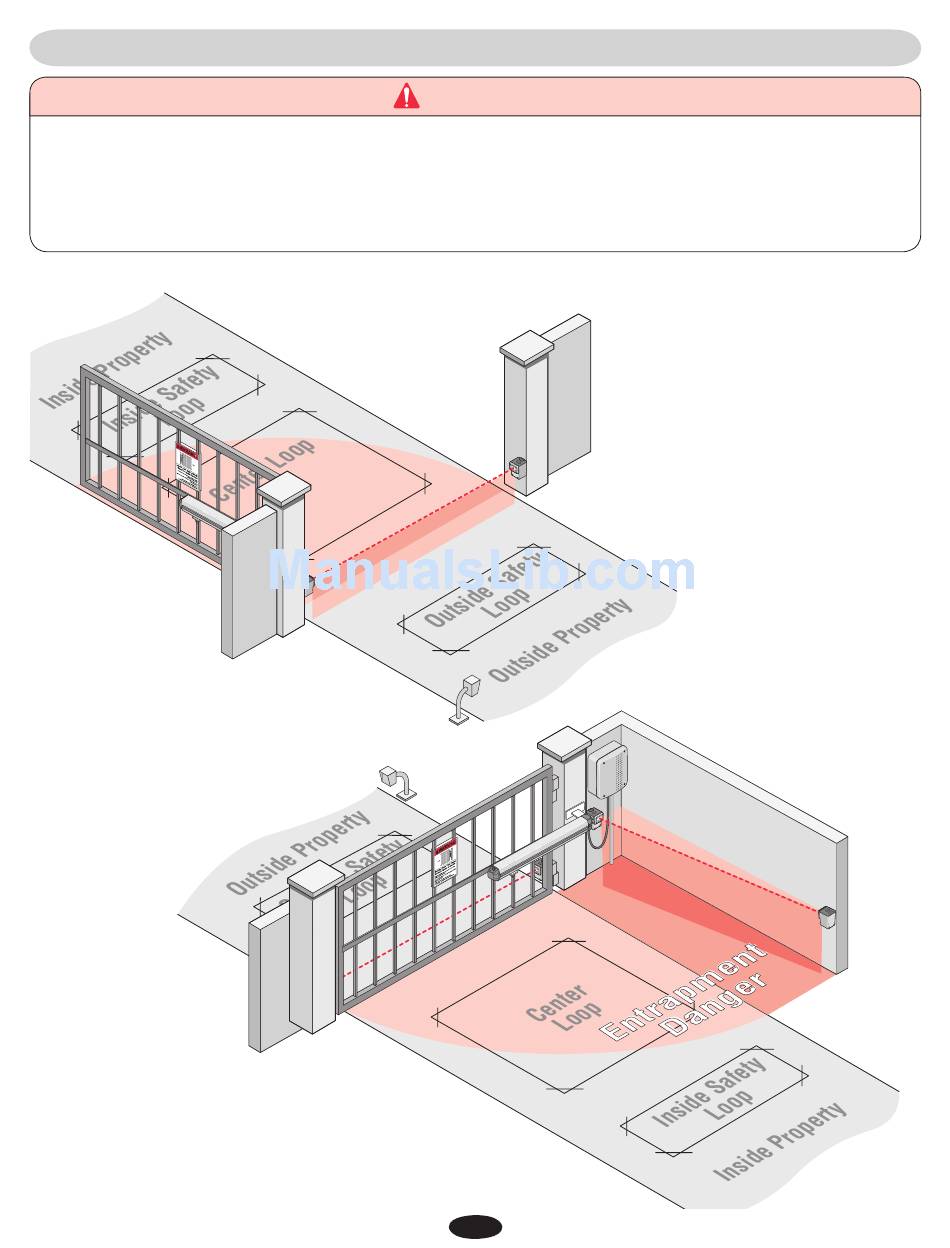

Non-Contact Sensors (Photo Electric Sensors)
WARNING
r r
g e g e
a n a n
y D y D
f e t f e t
S a S a
6
Install photo electric sensors to protect
against any entrapment or safety conditions
encountered in your gate application.
See page 24.
Safety loops allows the gate to
stay open when vehicles are
obstructing the gate path.
Suggested for vehicles 14 feet or
longer. If a vehicle is shorter, a
center loop is recommended and
should be installed.
A center loop protects during a
Close cycle of the gate. Safety
loops are required when using a
center loop.
See page 23.
