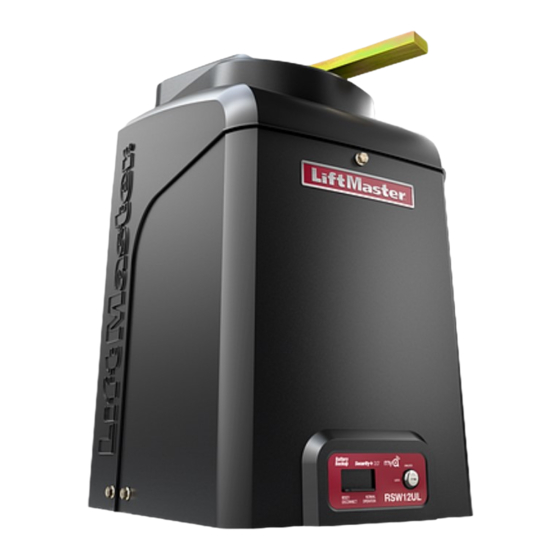

VEHICULAR SWING GATE OPERATOR
LiftMaster
300 Windsor Drive
Oak Brook, IL 60523
RESIDENTIAL DC
INSTALLATION MANUAL
OPERATOR REQUIRES A
OPERATOR REQUIRES A
LIFTMASTER EXTERNAL
LIFTMASTER EXTERNAL
MONITORED ENTRAPMENT
MONITORED ENTRAPMENT
PROTECTION DEVICE BE
PROTECTION DEVICE BE
INSTALLED IN ALL ENTRAPMENT
INSTALLED IN ALL ENTRAPMENT
ZONES
ZONES
• THIS PRODUCT IS TO BE INSTALLED AND
SERVICED BY A TRAINED GATE SYSTEMS
TECHNICIAN ONLY.
• This model is for use on vehicular passage
gates ONLY and not intended for use on
pedestrian passage gates.
• This model is intended for use in Class I and II
vehicular swing gate applications.
• Visit LiftMaster.com to locate a professional
installing dealer in your area.
• This gate operator is compatible with MyQ
and Security+ 2.0
®
Access installation and technical support
guides or register this product
RSW12ULTECH
accessories.
1.
Take a photo of the camera
icon including the points ( ).
2.
Send it in by texting the
photo to 71403.
®
