M A S T E R A N D S E C O N D A R Y W I T H T I M E R
To use the master/secondary option with Robo Slide, you must purchase the Optional Input Board (Elite Part # Q203) and connect it
to the J2 slot of each operator (Refer to page 15).
25 VDC plug-in transformer, per gate operator required
Master
Run low voltage 16-18 gauge wire in UL approved conduit to connect operators together.
Master J2 Plug
Set Timer
0 to 60 seconds
Never run high voltage and low voltage wires in same conduit.

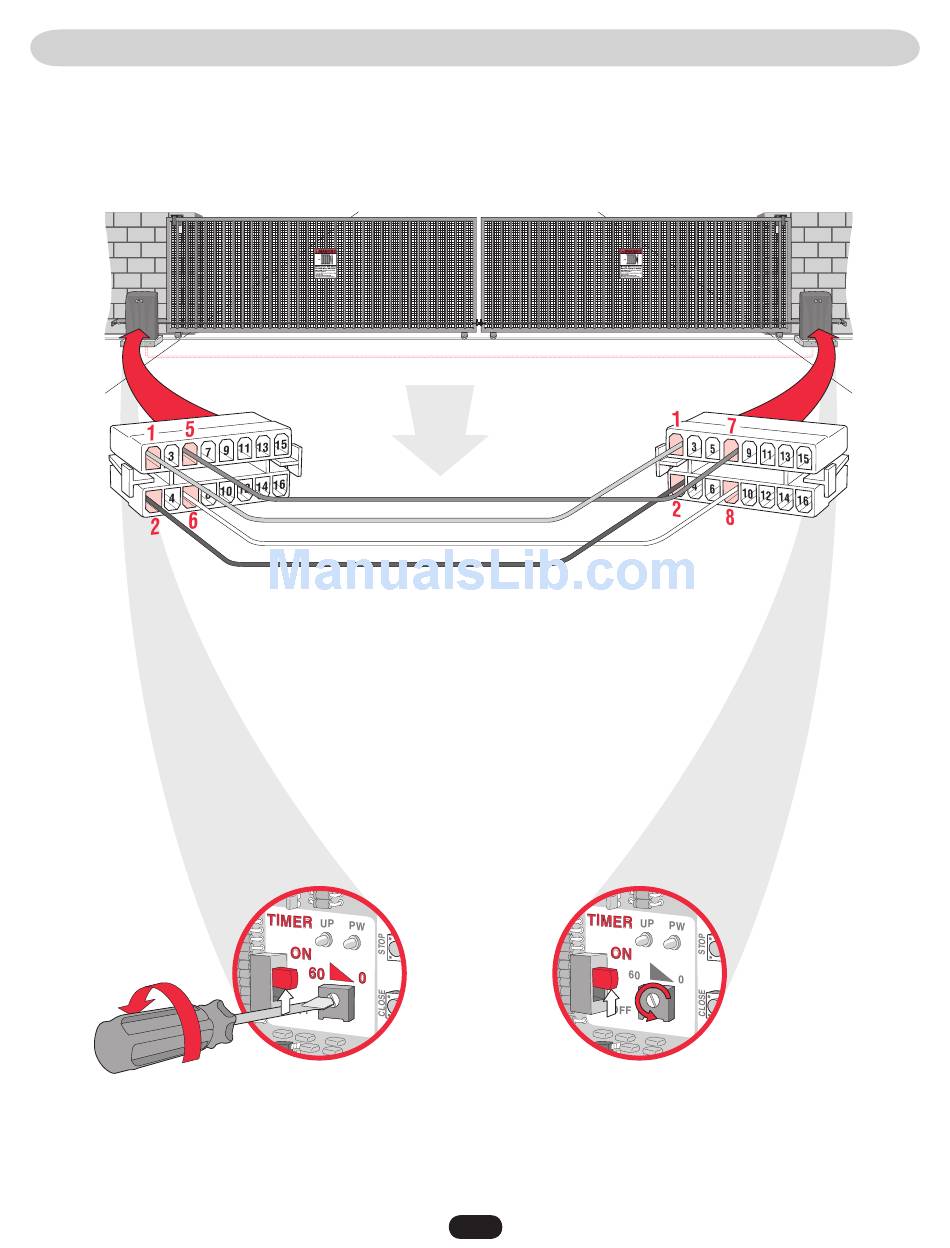

Master Pin 5 to Secondary Pin 7
Master Pin 1 to Secondary Pin 1
Master Pin 6 to Secondary Pin 8
Master Pin 2 to Secondary Pin 2
1. Make master/secondary J2 plug connections as shown above
2. Turn timers on BOTH control boards to the "ON" position
3. Use MASTER timer ONLY for the auto close time adjustment (0 to 60 sec)
4. Turn the SECONDARY timer adjustment all the way Counterclockwise
Master Timer "ON"
Secondary Timer "ON"
Maximum
Counterclockwise
Setting
26
Secondary
Secondary J2 Plug
NOTE: Disconnect the
second radio receiver
when using a master/
second setup.
