Fire Release Box - Optional - Chamberlain THE ROBO SLIDE Instruction Manual

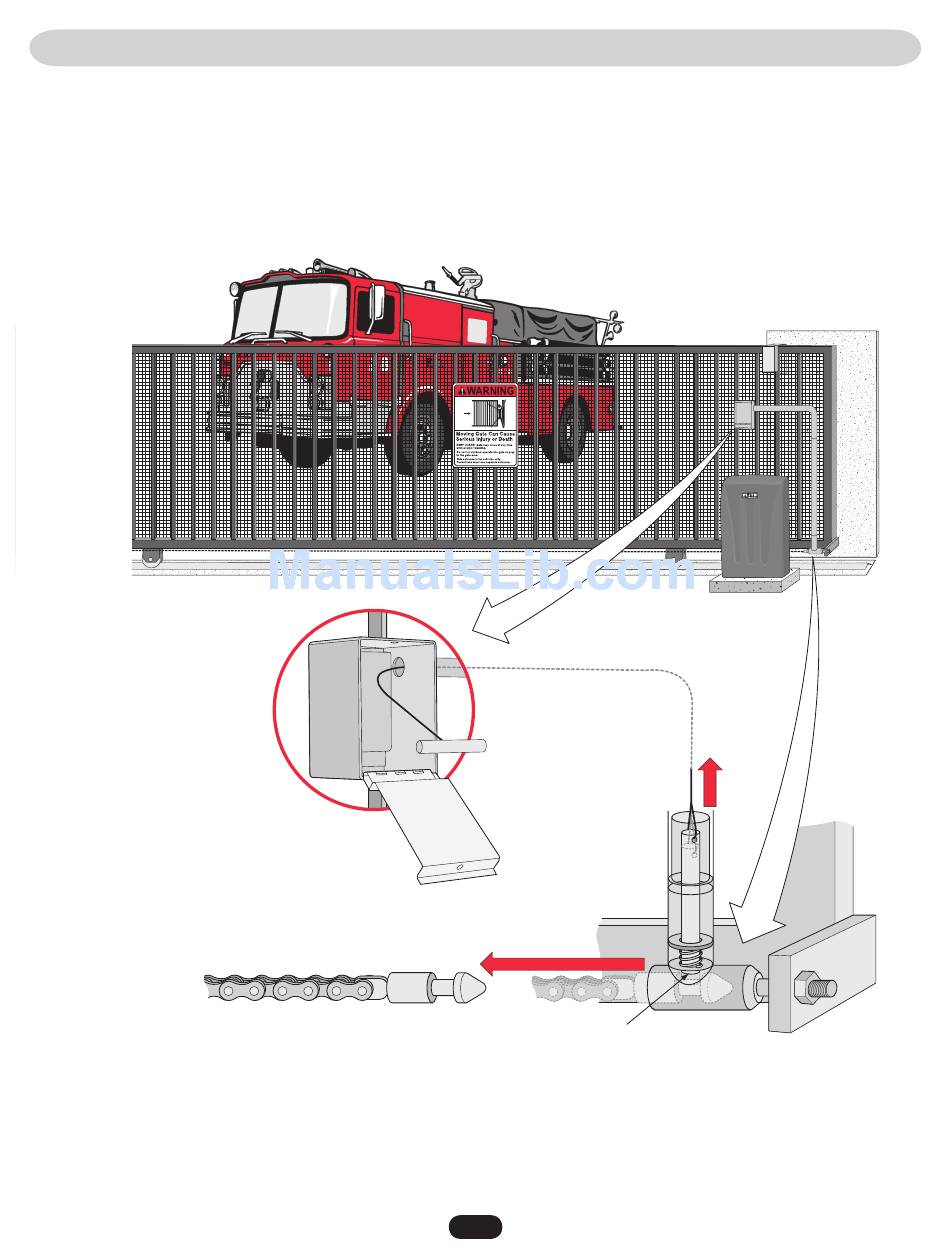

The "Fire Release Box", is designed for use on sliding gates. It consists of a plated box, with doors on the front and back. The doors
can be locked with your own padlock, or the fire department's padlock. The fire box would be fixed to the gate pickets. It can be
opened from either side of the gate. A steel cable with a T-handle runs from the box to the release mechanism at the rear end of the
chain. We do not provide the 1/2" EMT to run the cable through. The release mechanism, is placed where the chain bolt would
normally be. When you pull on the T-handle, you release the chain from the bolt. To reset, simply reinsert the pin into the housing for
normal operation (Part # ACP17).
Contact your local dealer
for more information.
" O P T I O N A L " F I R E R E L E A S E B O X
The chain is held in place by a spring loaded pin.
Pull firmly on the
"T" Handle to release
the chain.
