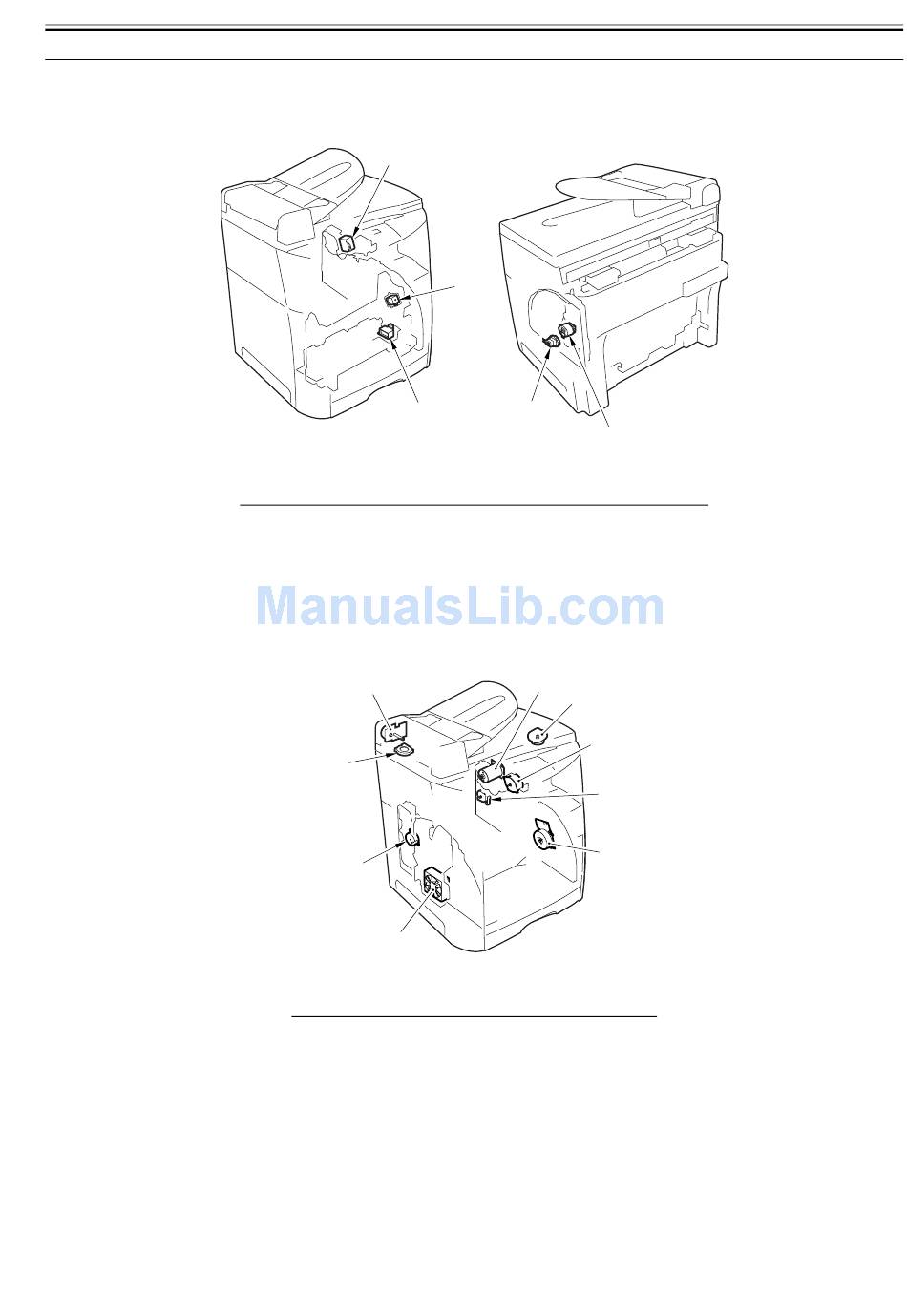

6.1 Outline of Electrical Components

6.1.1 Cluth/Solenoid

6.1.1.1 Cluth/Solenid

6.1.2 Motor/Fan

6.1.2.1 Motor/Fan
[1]
NO. Name
[1] Developing rotary stopper solenoid
[2] Multi-purpose tray pick-up solenoid
[3] Roller engaging clutch
[4] Registration clutch
[5] Cassette pick-up solenoid
[7]
[9]
[1]
[6]
NO. Name
[1] Engaging motor
[2] Developing rotary motor
[3] Toner cartridge motor
[4] Fixing motor
[5] Main motor
[6] Cooling fan
[7] Document feed Motor
[8] Flatbed Motor
[9] Reader cooling fan
[2]
[4]
[5]
F-6-1
T-6-1
[2]
[8]
F-6-2
T-6-2
Notation
PM704
DCM703
PM705
DCM702
DCM701
FM721
DCM706
DCM707
FM722
[3]
Notation
SL93
SL92
CL2
CL1
SL9
[3]
[4]
[5]
Chapter 6
0008-1743
0008-1746
6-1
