7.2 MASTER ROM SOCKET SPECIFICATIONS
Usage
Mount the master ROM, which downloads the user program, in the 32-pin socket on the top of the PG-FP3.
Mount the PROM to which a program has been written in the master ROM socket and execute from the
FLASHPRO3 the command that downloads data from the master ROM. The data can be also downloaded from
the master ROM by pressing the MODE key on the PG-FP3 to set LOAD MODE (the LOAD LED lights) and then
pressing the ENTER key.
[Operation from the FLASHPRO3]
Either click the [PROM Load] button on the screen, or execute the [PROM Load] command from [Procedure].
70
CHAPTER 7 HARDWARE SPECIFICATIONS

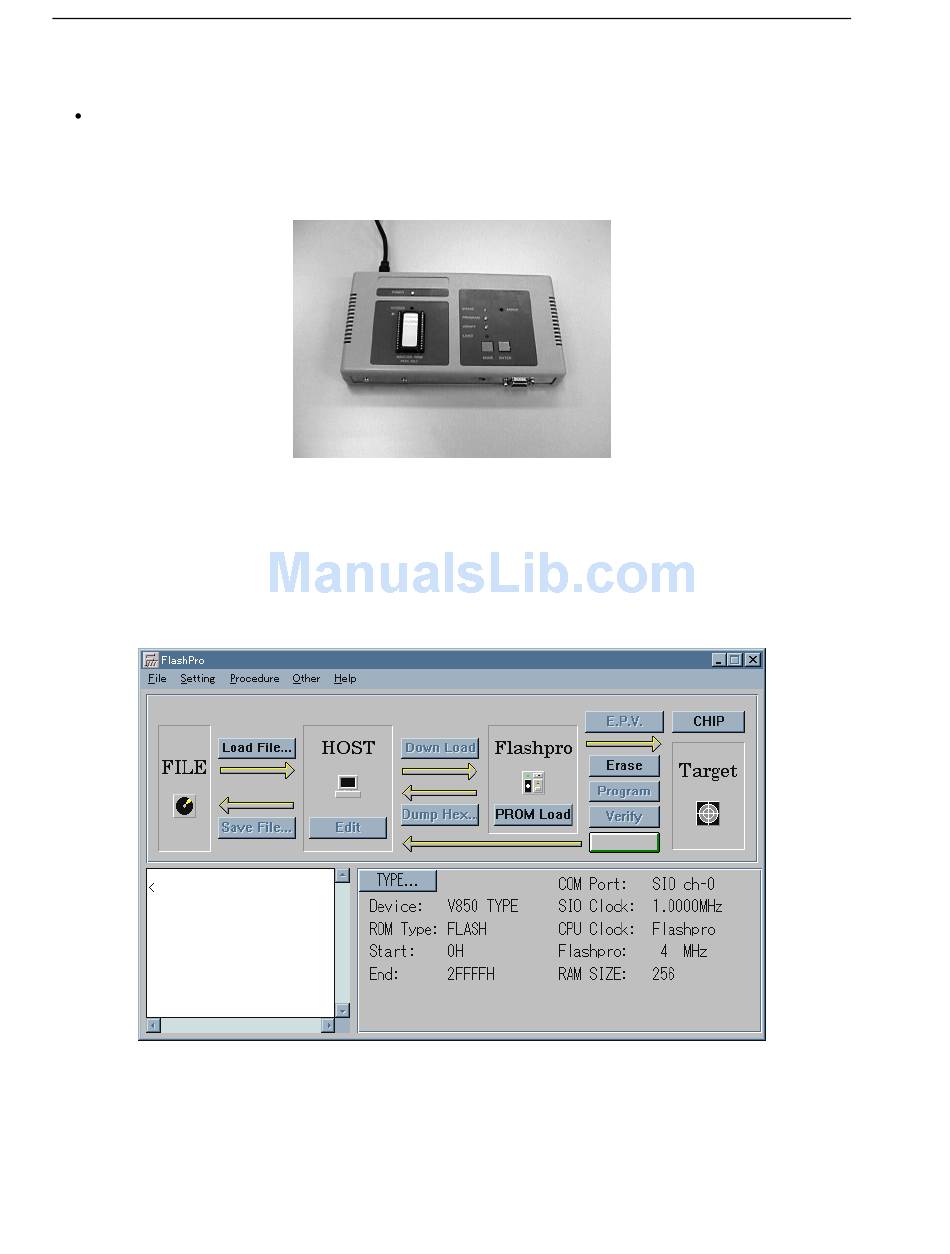

Photo 7-1. Mounting the Master ROM
User's Manual U13502EJ2V0UM00
