CHAPTER 3 STARTING AND STOPPING
FLASHPRO3 screen
The FLASHPRO3 screen consists of three subscreens. The operation screen contains command execution
buttons in the form of a flowchart so that you can perform a series of operations by referring to the flowchart.
The log window screen shows the command flow between the FLASHPRO3 and PG-FP3, the status, and the
progress of command execution. The TYPE screen displays the current TYPE settings, allowing you to check
the current settings without having to open the TYPE setting window.

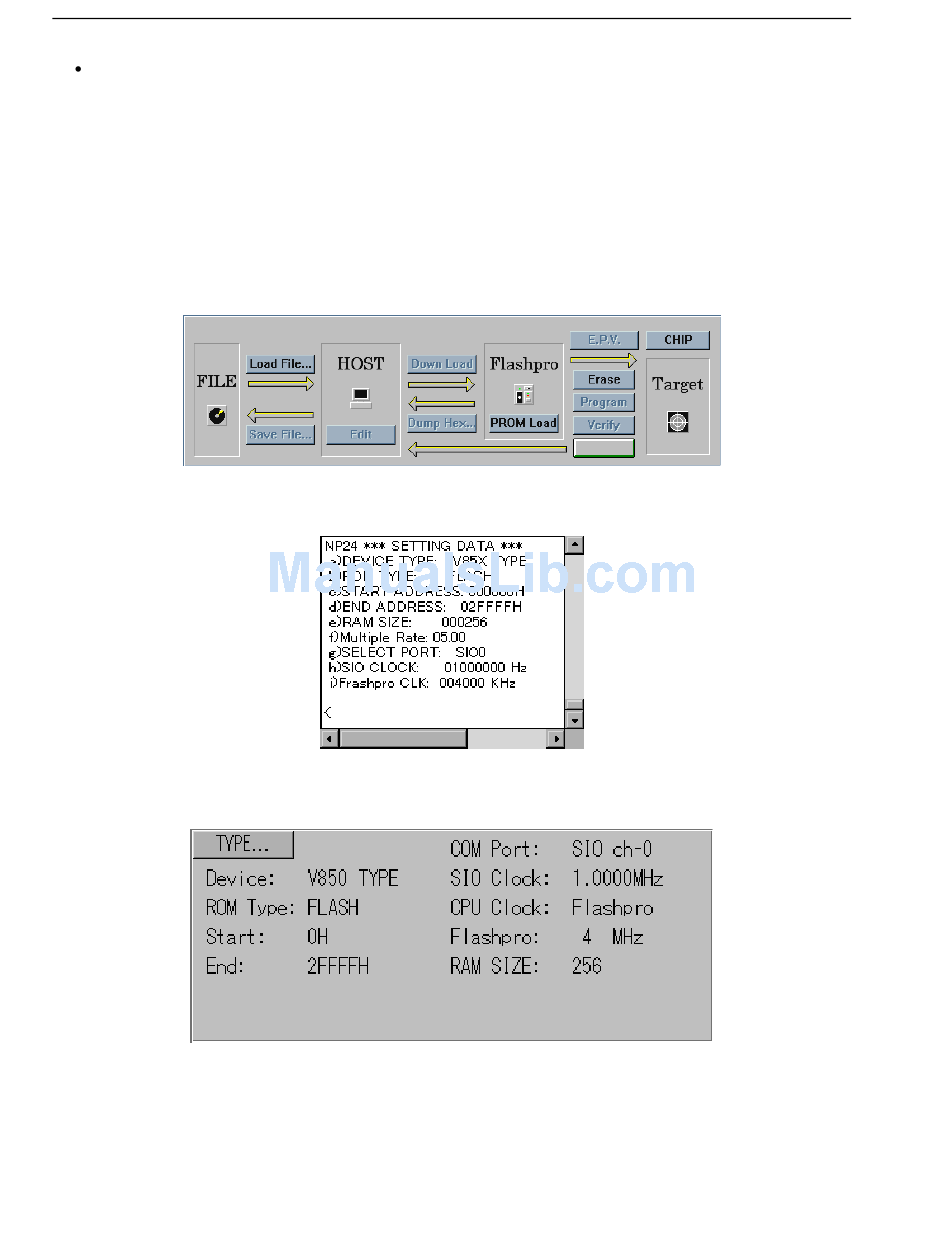

Figure 3-1. FLASHPRO3 Screens
(a) Operation Screen
(b) Log Window Screen
(c) TYPE Screen
32
User's Manual U13502EJ2V0UM00
