CHAPTER 3 STARTING AND STOPPING
TYPE setting
The TYPE setting dialog box is used to set information necessary for communication with the target. Default
information is set when the parameter file is loaded. To change the default setting, either execute the
[Setting..Type] command, or click the [TYPE] button on the screen.
The TYPE setting dialog box below is displayed.

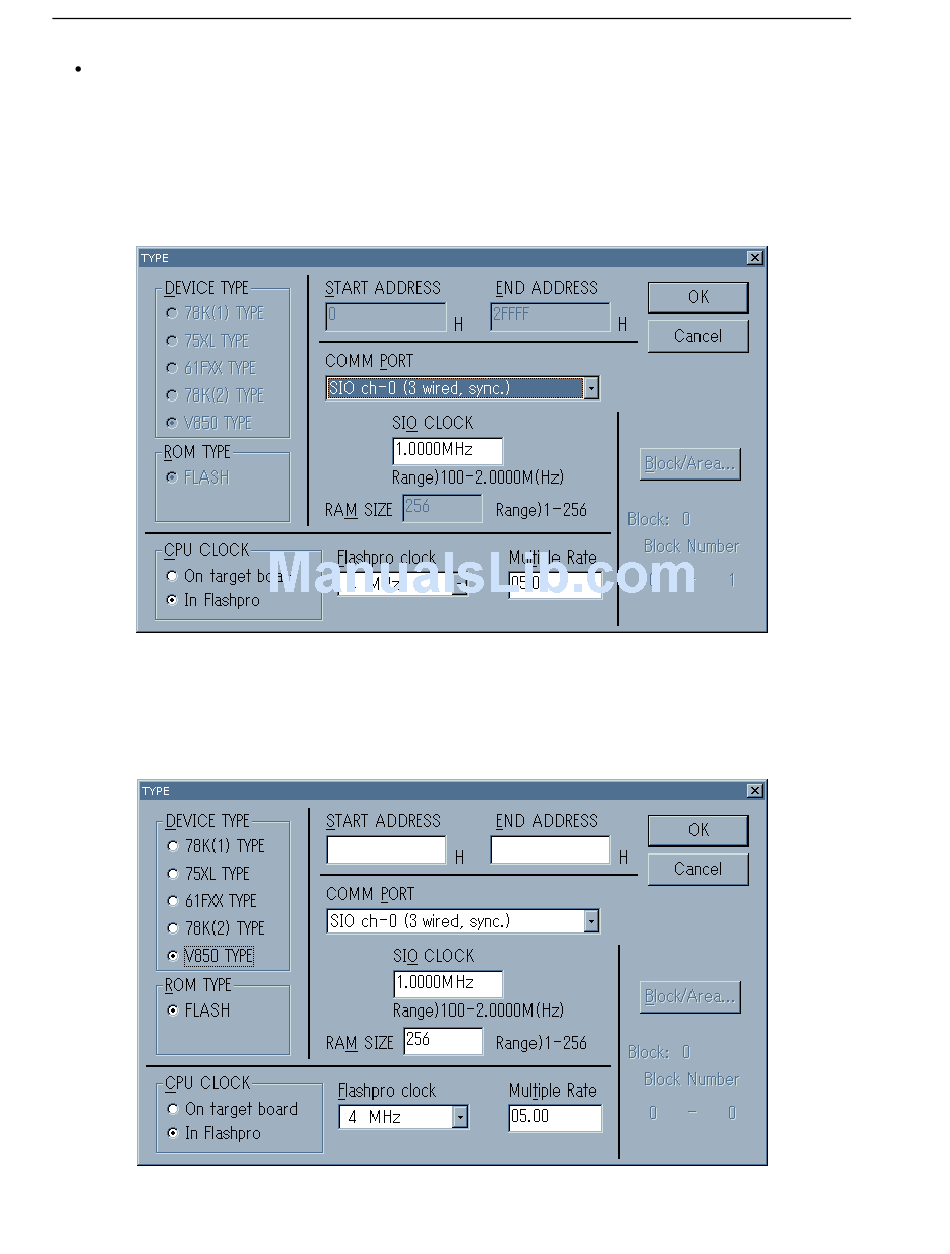

Figure 3-3. TYPE Setting Dialog Box (When the Parameter File Is Loaded)
If the device definition file has not been loaded, the TYPE setting dialog box below is displayed. In this case,
load the file, and then perform TYPE setting.
Figure 3-4. TYPE Setting Dialog Box (When the Parameter File Is Not Loaded)
34
User's Manual U13502EJ2V0UM00
