This chapter explains each command. A command can be selected from the pull-down menu on the menu bar or
by clicking the corresponding button on the screen.
5.1 File

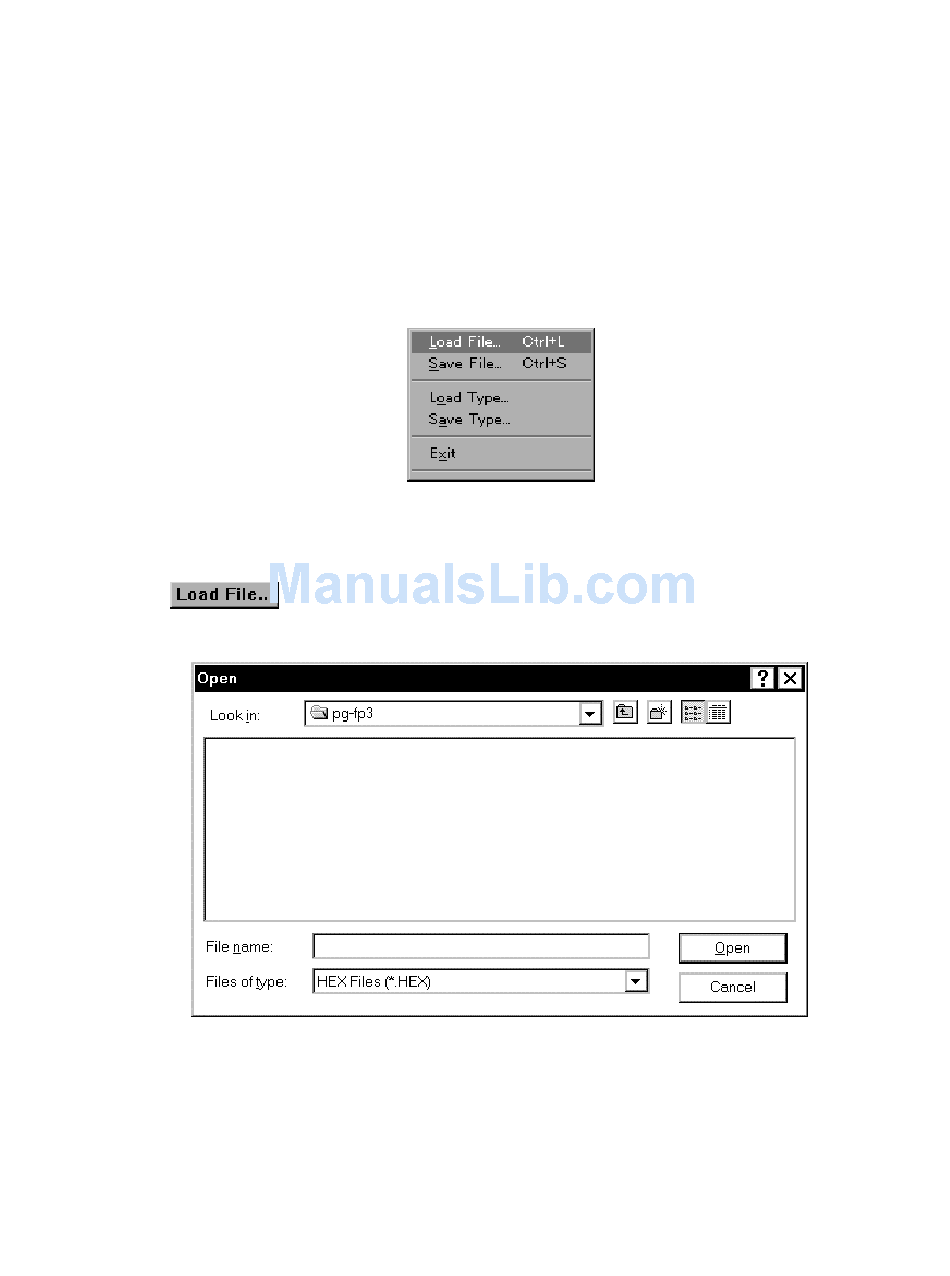

When [File] is clicked, the pull-down menu shown below is displayed. This menu lists mostly the commands that
are used to manipulate files.
5.1.1 Load File
The [Load File] command loads the user program into FLASHPRO3. The loaded program can be displayed and
edited with the [Edit] command. Execute the [Load File] command by selecting it from the pull-down menu or by
pressing the
Select the file to be loaded, and click the [Open] button.
Two types of files can be loaded: Intel expansion HEX and Motorola S format files. An Intel expansion HEX file is
recognized as xxxxxx.HEX. A Motorola S format file is recognized as xxxxxx.PRO.
CHAPTER 5 COMMAND REFERENCE
button on the screen. When this command has been executed, the window below opens.
User's Manual U13502EJ2V0UM00
45
