Chapter 7_____________________________________________________Zaxcom Nomad User's Manual

Slate Microphone Input Connector (1/8" TRS)

NOTE: This is a balanced input. It can be used with dynamic microphones. It can also be used unbalancd with
powered low voltage microphones.

Headphone Output Connectors (1/4" TRS or 1/8" TRS)

AES Digital Input / Output Connectors (DB-15)

The Nomad uses a mini DB-15 (AKA: DE-15) connector for the AES (digital) input and output connectors.
Pin Description Pin
(+) / Hot
Tip Ring
(biased to 5V)
Table 7-5 Slate Mic Input Pin Description
Pin Description Pin
Tip Left Channel Ring
Table 7-6 Headphone Output Pin Description
Top row pins: 5, 4, 3, 2, 1
Middle row pins: 10, 9, 8, 7, 6
Bottom row pins: 15, 14, 13, 12, 11

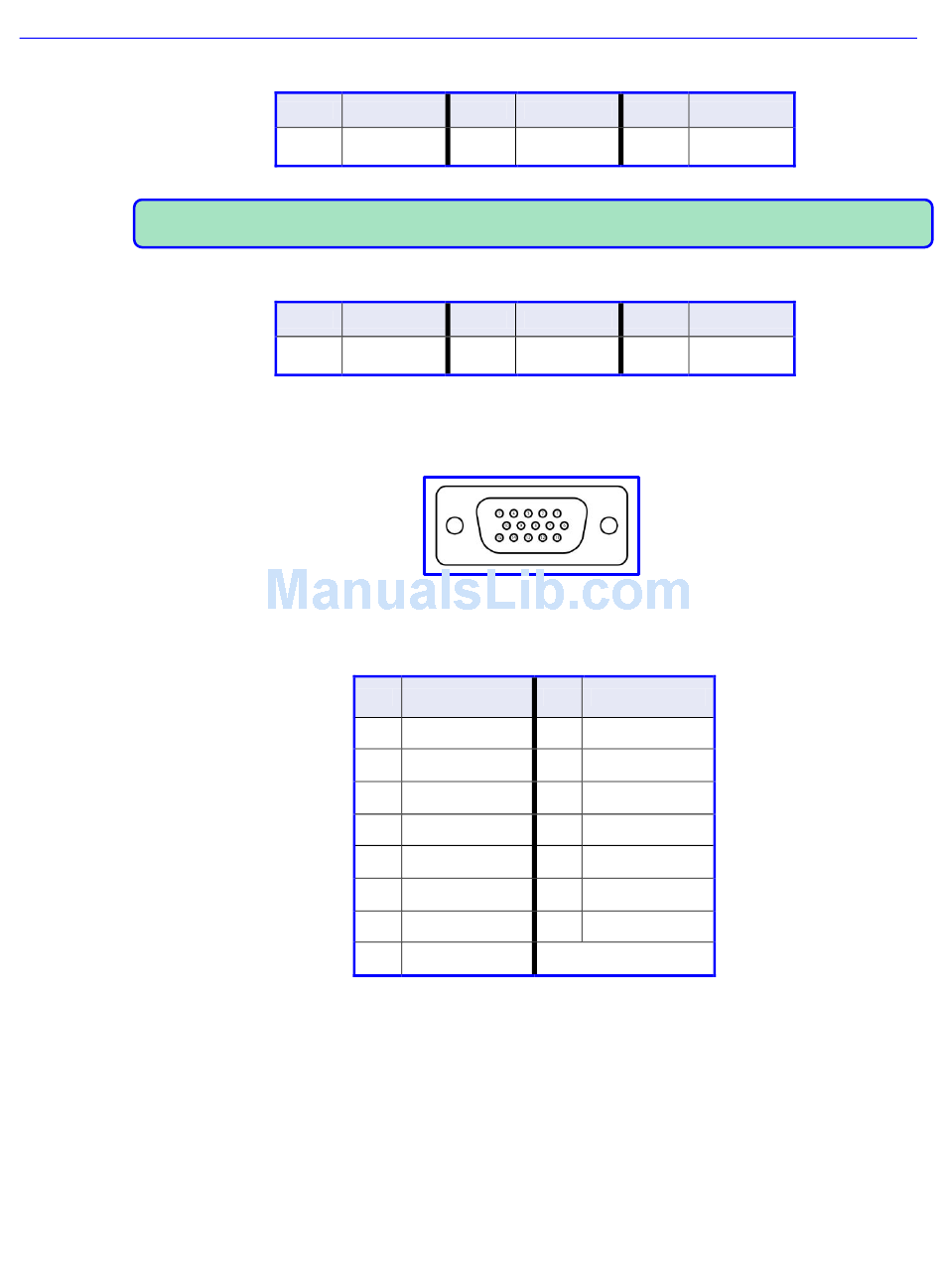

Figure 7-2 Mini DB-15M Input and Output Connector Pin Numbering

Pin DESC
1 RX Ch3/4, Pin-2
2 RX Ch1/2, Pin-2
3 TX Ch5/6, Pin-2
4 RX Ch7/8, Pin-2
5 RX Ch5/6, Pin-2
6 TX Ch1/2, Pin-3
7 TX Ch1/2, Pin-2
8 GND
Table 7-7 Mini DB-15M Pin Description
70
Description Pin Description
–
( ) / Cold
Sleeve
(biased to 5V)
Description Pin Description
Right Channel Sleeve
Pin DESC
9 TX Ch3/4, Pin-3
10 TX Ch3/4, Pin-2
11 RX Ch3/4, Pin-3
12 RX Ch1/2, Pin-3
13 TX Ch5/6, Pin-3
14 RX Ch7/8, Pin-3
15 RX Ch5/6, Pin-3
Ground
Ground
