Warnings Setup page

Page purpose:
How to get here:
(MENU knob once  ENG Setup button  Warnings Setup button)

Input Levels page

Page purpose:
How to get here:
(MENU knob once  ENG Setup button  Input Levels button)

Return 1-4 Input Adjust

These inputs are continuously adjustable in 1 dB steps from +4dBu to -15 dBu to accept a line-level input. Since
these inputs can also be used as line-level inputs the return level adjustment provides a calibration for the input
level of the R1-R4 inputs. (These inputs are sometimes referred to as inputs 7-10 when used to feed busses)
Internal & External Slate Level Adjust
The internal slate microphone level and the external input connector level are independently and continuously
adjustable.
NOTE: It is normal for the internal slate audio to have a high noise floor. This is due to the audio routing within
the Nomad's digital wiring section.
This page manages the audible alerts sent to Headphone-1.
This page manages the audio levels for the specified inputs.

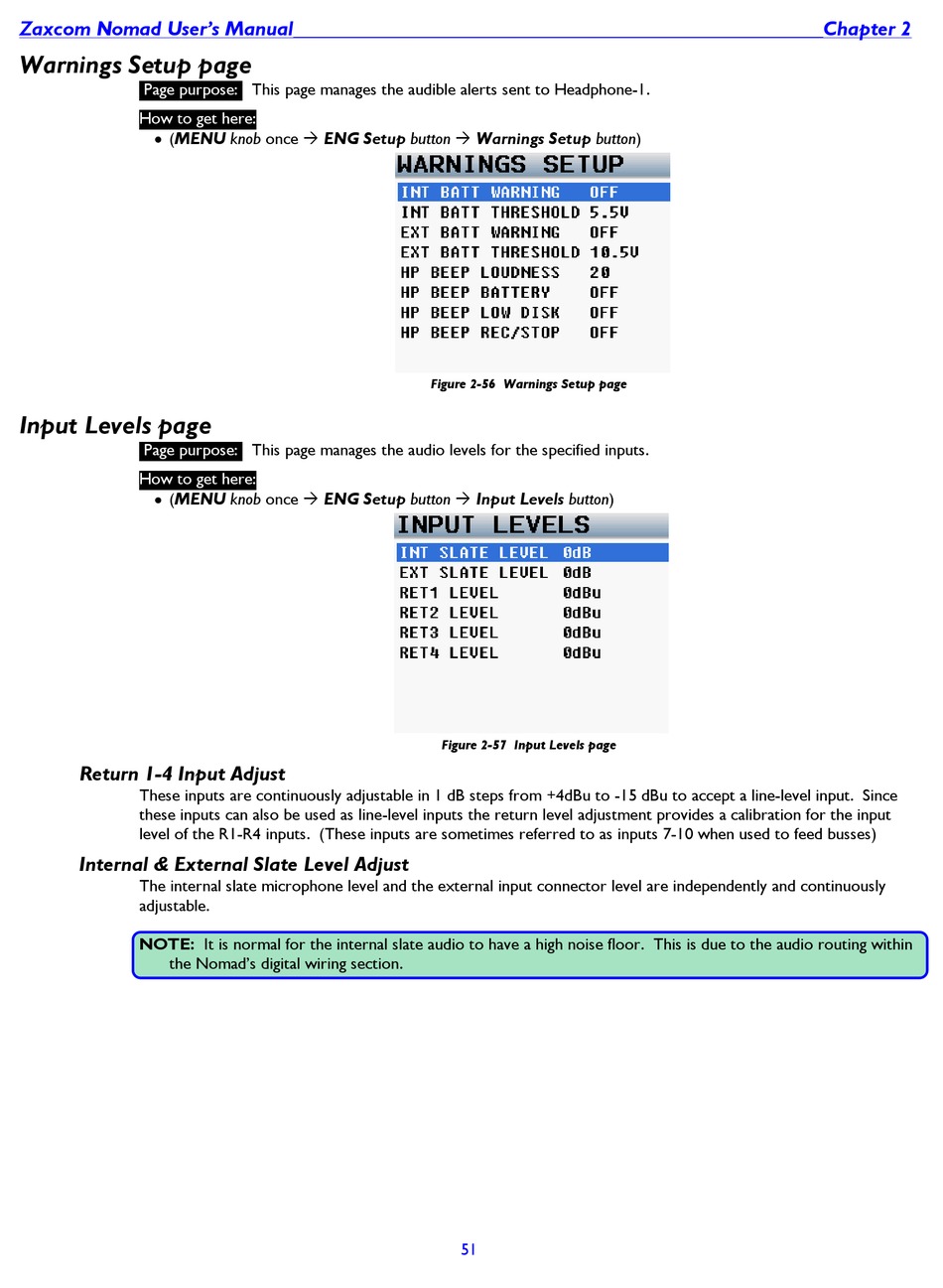

Figure 2-56 Warnings Setup page

Figure 2-57 Input Levels page
