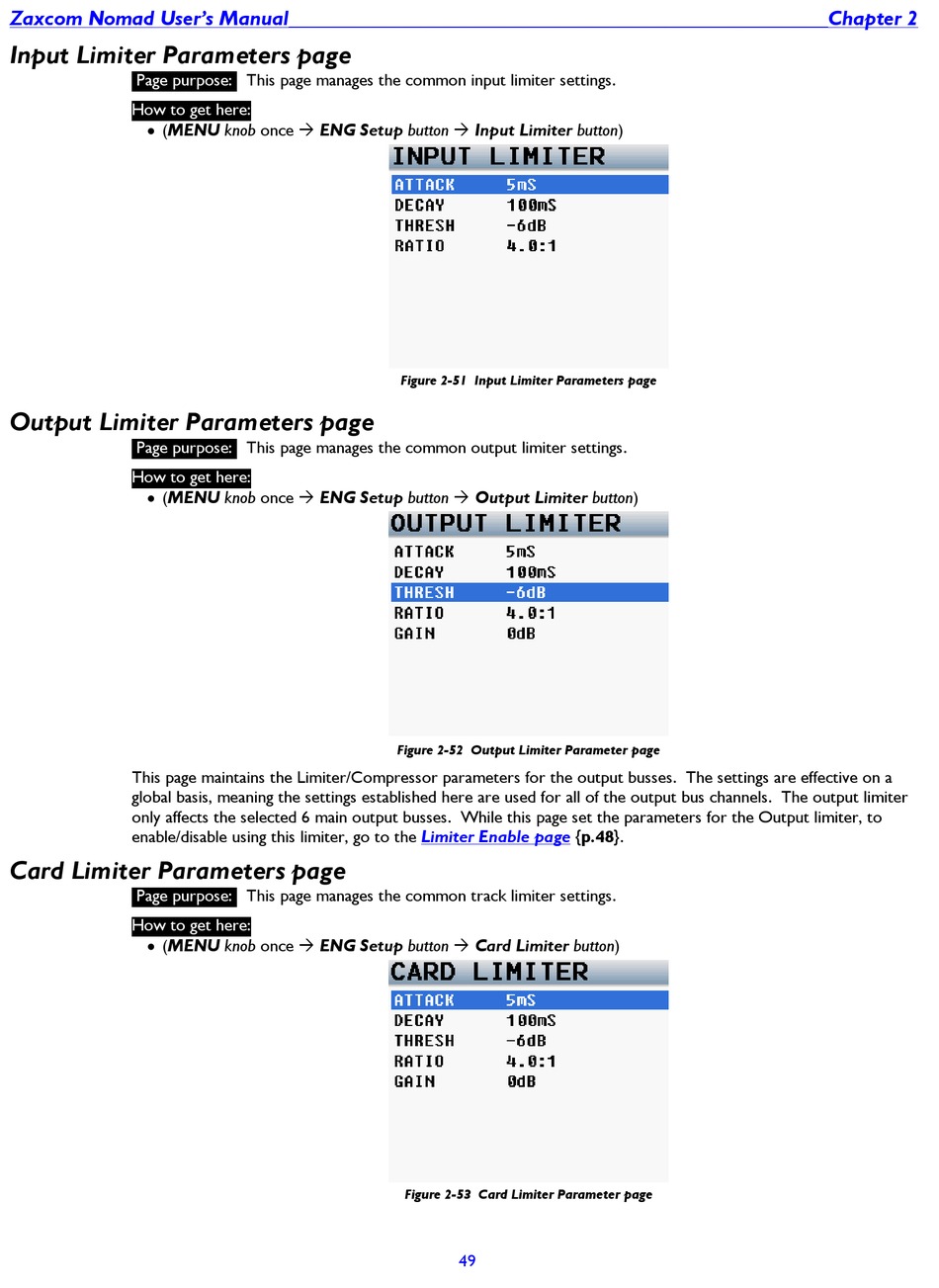

Input Limiter Parameters Page; Output Limiter Parameters Page; Card Limiter Parameters Page; Figure 2-51 Input Limiter Parameters Page - Zaxcom Nomad User Manual

Zaxcom Nomad User's Manual_____________________________________________________Chapter 2

Input Limiter Parameters page

Page purpose:
How to get here:
(MENU knob once  ENG Setup button  Input Limiter button)

Output Limiter Parameters page

Page purpose:
How to get here:
(MENU knob once  ENG Setup button  Output Limiter button)
This page maintains the Limiter/Compressor parameters for the output busses. The settings are effective on a
global basis, meaning the settings established here are used for all of the output bus channels. The output limiter
only affects the selected 6 main output busses. While this page set the parameters for the Output limiter, to
enable/disable using this limiter, go to the

Card Limiter Parameters page

Page purpose:
How to get here:
(MENU knob once  ENG Setup button  Card Limiter button)
This page manages the common input limiter settings.

Figure 2-51 Input Limiter Parameters page

This page manages the common output limiter settings.

Figure 2-52 Output Limiter Parameter page

Limiter Enable page
This page manages the common track limiter settings.

Figure 2-53 Card Limiter Parameter page

{p.48}.
49
