Burn Bootloader page

Page purpose:
program when the user holds the STAR key on boot up.
How to get here:
( MENU knob once  ENG Setup button  Advanced Setup button  Burn Boot Loader button)
NOTE: The user should read the release notes whenever he installs a new version to see if he should install a
new bootloader or new ZaxNet firmware.

ZaxNet Setup page

Page purpose:
How to get here:
(MENU knob once  ZaxNet Setup button)

Page Notes

For this page to useful, the following must be true for the associated wireless kit(s):
Zaxcom unit(s)
Transmitters must be TRX9xx units
Receivers can be any unit but prefer QRX100
Each TRX9xx must have a local recorder with recording media installed.

IFB Mode button

This button controls how the unit will operate on ZaxNet:
OFF – the transceiver unit is not available for use
RX – the transceiver is set to receive mode. The unit will function as any or IFB receiver.
TX – the transceiver is set to transmit mode. The unit will be the master for units with its Group ID.
CAUTION: If you set the IFB Mode button to TX, be sure to attach an antenna. If you don't, RFI WILL get into
the mic preamps.

TX Channel button

This button controls which frequency the unit will use to transmit/receive.
This page is responsible for starting the unit up, executing the main program, and burning the main

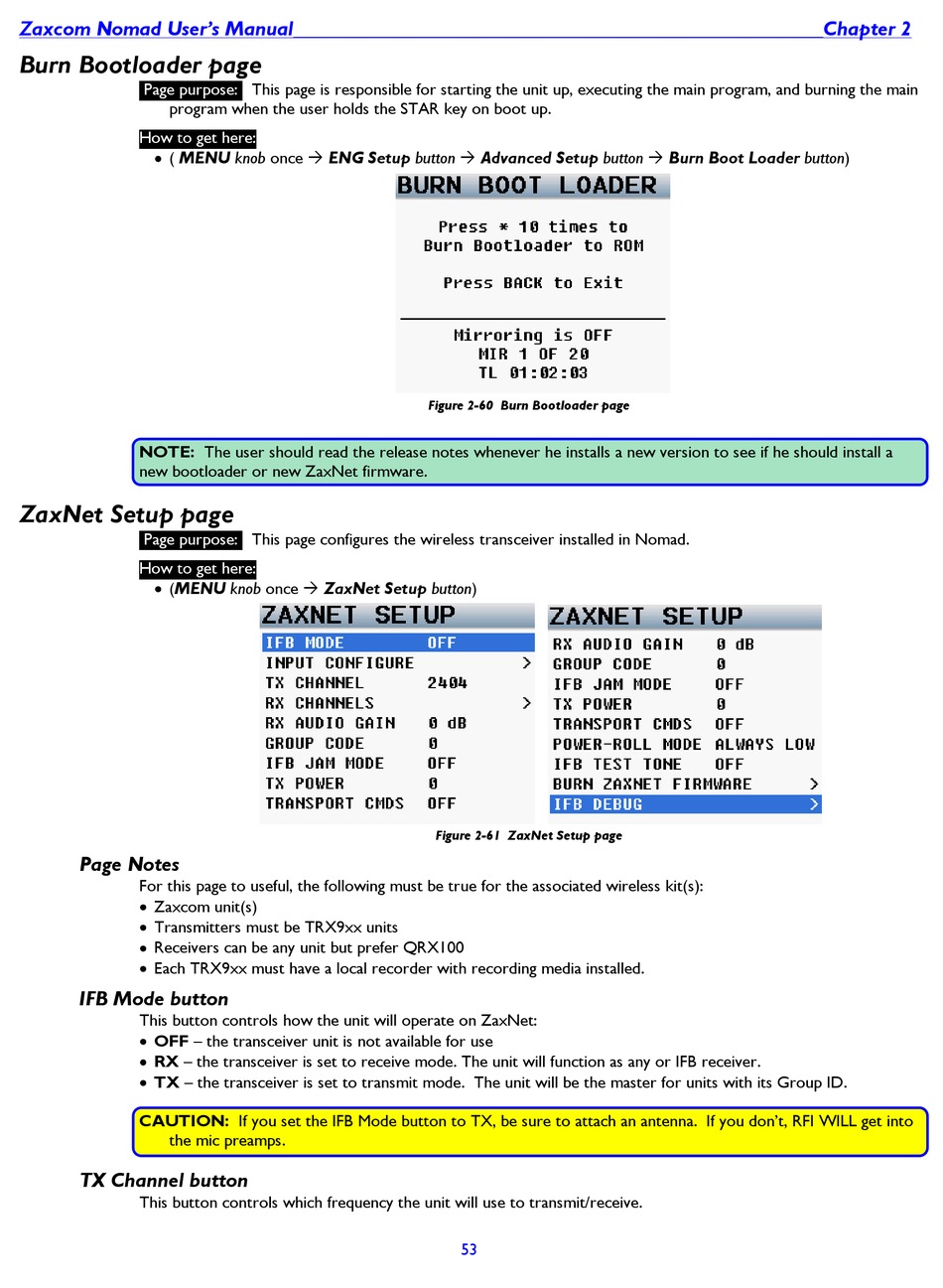

Figure 2-60 Burn Bootloader page

This page configures the wireless transceiver installed in Nomad.

Figure 2-61 ZaxNet Setup page
